Boom Lift · Genie

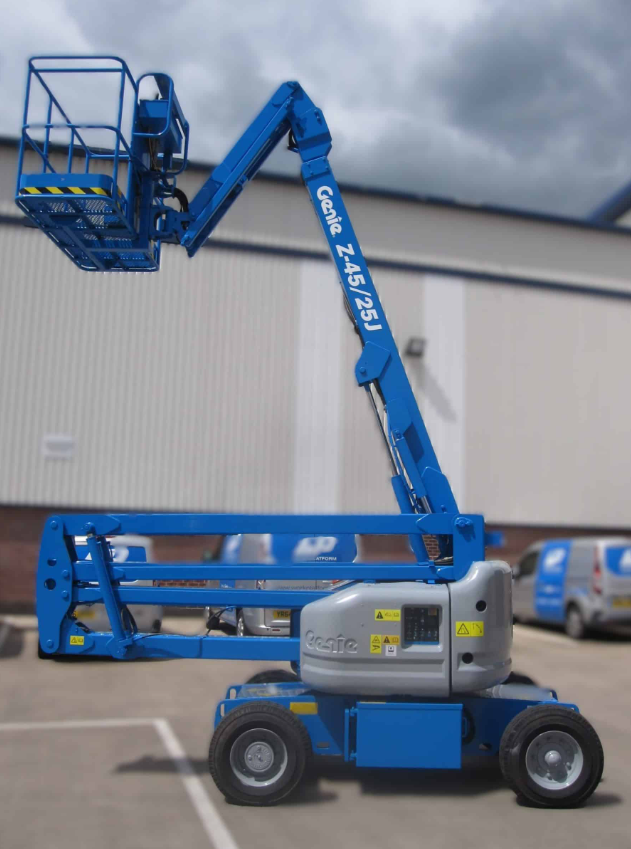

Genie Z-45/25J DC and Bi-Energy Specs
Quick-reference specifications for the Genie Z-45/25J DC and Bi-Energy boom lift, taken from the manufacturer’s spec sheet.
- Lift capacity
- 500 lb227 kg
- Platform height maximum
- 45 ft 8 in13.92 m
Performance 6 specs
| Horizontal reach maximum | 25 ft 1 in (7.65 m) |
|---|---|
| Lift capacity | 500 lb (227 kg) |
| Vertical jib rotation | 135° |
| Drive speed – raised | 0.68 mph (1.1 km/h) |
| Turning radius – inside | 6 ft (1.83 m) |
| Turning radius – outside | 14 ft (4.26 m) |
Dimensions 8 specs
| Platform height maximum | 45 ft 8 in (13.92 m) |
|---|---|
| Up and over clearance maximum | 22 ft 1 in (6.73 m) |
| Platform length | 2 ft 6 in (.76 m) |
| Platform width | 6 ft (1.83 m) |
| Height – stowed | 6 ft 7 in (2.00 m) |
| Width | 5 ft 10.3 in (1.79 m) |
| Wheelbase | 6 ft 8 in (2.03 m) |
| Ground clearance – center | 9.5 in (.24 m) |
Power / Engine 1 spec
| Auxiliary power unit | 24 V DC |
|---|
Hydraulics / Fluids 2 specs
| Hydraulic tank capacity | 8 gal (30.3 L) |
|---|---|
| Fuel tank capacity | 9 gal (34.1 L) |
