Boom Lift · Genie

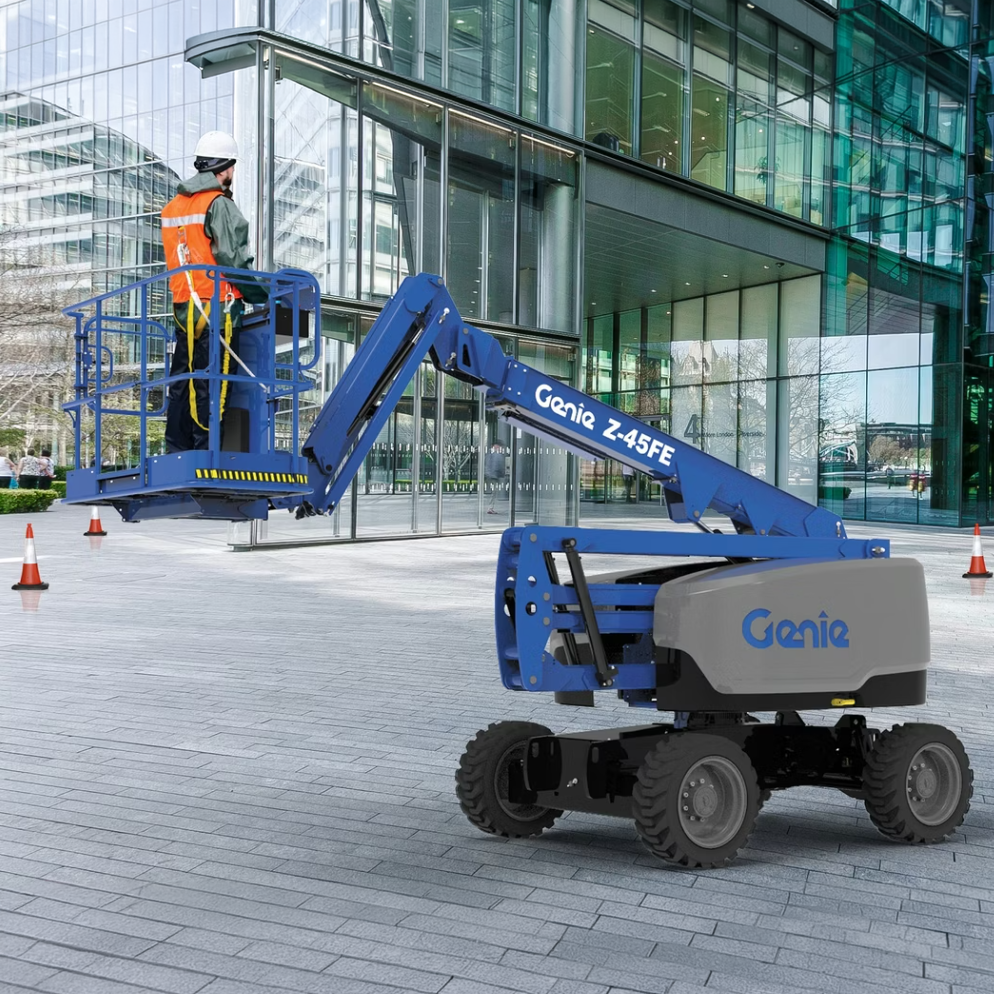

Genie Z-45 FE/DC Hybrid Specs
Quick-reference specifications for the Genie Z-45 FE/DC Hybrid boom lift, taken from the manufacturer’s spec sheet.
- Lift capacity max. – unrestricted
- 660 lb300 kg
- Platform height max.
- 45 ft 8 in13.92 m
- Working height max.
- 51 ft 8 in15.92 m
- Gradeability – stowed
- 45 %
Performance 11 specs
| Working height max. | 51 ft 8 in (15.92 m) |
|---|---|
| Horizontal reach max. | 22 ft 9 in (6.94 m) |
| Lift capacity max. – unrestricted | 660 lb (300 kg) |
| Platform rotation | 160° |
| Vertical jib rotation | 135° |
| Turntable rotation | 355° |
| Drive speed – stowed | 4.5 mph (7.24 km/h) |
| Drive speed – raised | 0.68 mph (1.1 km/h) |
| Gradeability – stowed | 45 % |
| Turning radius – inside/outside | 7 ft 10 in / 14 ft 1 in (2.40 m / 4.30 m) |
| Vibrations | 1.81 ft/s² (0.55 m/s²) |
Dimensions 11 specs
| Platform height max. | 45 ft 8 in (13.92 m) |
|---|---|
| Up and over clearance max. | 24 ft 7 in (7.50 m) |
| Platform length | 2 ft 6 in (0.76 m) |
| Platform width | 6 ft (1.83 m) |
| Height – stowed (tires) | 7 ft 6 in (2.29 m) |
| Length – stowed (tires) | 20 ft 1 in (6.11 m) |
| Width | 7 ft 6 in (2.29 m) |
| Wheelbase | 6 ft 8 in (2.03 m) |
| Ground clearance – center | 1 ft 4 in (0.41 m) |
| Jib length | 5 ft (1.52 m) |
| Turntable tailswing | 1 ft 3 in (0.37 m) |
Weight 4 specs
| Weight, DC | 14,064 lb (6,379 kg) |
|---|---|
| Weight, FE | 14,460 lb (6,559 kg) |
| Tire contact pressure | 70 psi (482 kPa) |
| Occupied floor pressure (tires) | 206 psf (9.88 kPa) |
Power / Engine 1 spec
| Drive system | 34 V 3-Phase AC |
|---|
Hydraulics / Fluids 2 specs
| Hydraulic tank capacity | 10.5 gal (40 L) |
|---|---|
| Fuel tank capacity | 17 gal (64 L) |
