Boom Lift · Genie

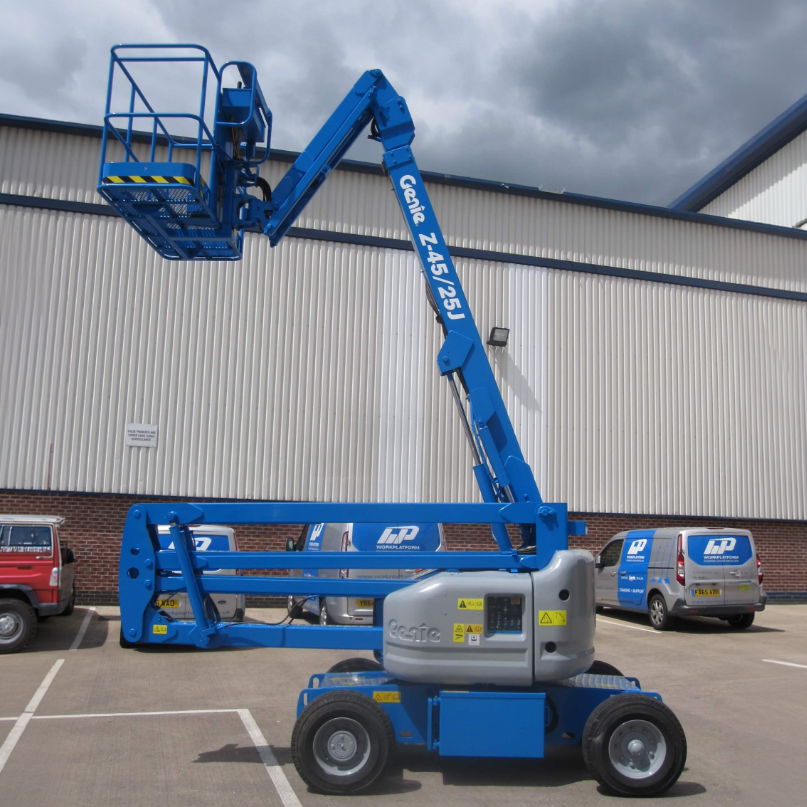

Genie Z-45/25J DC Specs
Quick-reference specifications for the Genie Z-45/25J DC boom lift, taken from the manufacturer’s spec sheet.
- Lift capacity max. – unrestricted
- 500 lb227 kg
- Platform height max.
- 45 ft 9 in13.94 m
- Working height max.
- 51 ft 9 in15.94 m
- Gradeability – stowed
- 30 %
Performance 14 specs
| Working height max. | 51 ft 9 in (15.94 m) |
|---|---|
| Horizontal reach max. | 25 ft 1 in (7.65 m) |
| Lift capacity max. – unrestricted | 500 lb (227 kg) |
| Platform rotation | 160° |
| Vertical jib rotation | 135° |
| Turntable rotation | 355° |
| Drive speed – stowed | 3.0 mph (4.8 km/h) |
| Drive speed – raised | 0.61 mph (1.0 km/h) |
| Gradeability – stowed | 30 % |
| Turning radius – inside/outside | 6 ft/14 ft (1.8 m / 4.27 m) |
| Tires (solid, non-marking) | 9 × 14.5 in (0.23 × 0.37 m) |
| Sound Pressure level (ground workstation) | < 70 dBA |
| Sound Pressure level (platform workstation) | < 70 dBA |
| Vibrations | 8 ft 2 in/s² (2.5 m/s²) |
Dimensions 11 specs
| Platform height max. | 45 ft 9 in (13.94 m) |
|---|---|
| Up and over clearance max. | 23 ft 9 in (7.24 m) |
| Platform length | 2 ft 6 in (0.76 m) |
| Platform width | 6 ft (1.83 m) |
| Height – stowed (tires) | 6 ft 7 in (2.00 m) |
| Length – stowed (tires) | 22 ft 5 in (6.83 m) |
| Width | 5 ft 10.25 in (1.79 m) |
| Wheelbase | 6 ft 8 in (2.03 m) |
| Ground clearance – center | 9.5 in (0.24 m) |
| Jib length | 5 ft (1.52 m) |
| Turntable tailswing | 0 in (0 cm) |
Weight 3 specs
| Weight (tires) | 16,315 lb (7,400 kg) |
|---|---|
| Tire contact pressure | 100 psi (689 kPa) |
| Occupied floor pressure (tires) | 315 psf (15.08 kPa) |
Power / Engine 1 spec
| Auxiliary power unit | 24 V DC |
|---|
Hydraulics / Fluids 1 spec
| Hydraulic tank capacity | 8 gal (30.3 L) |
|---|
