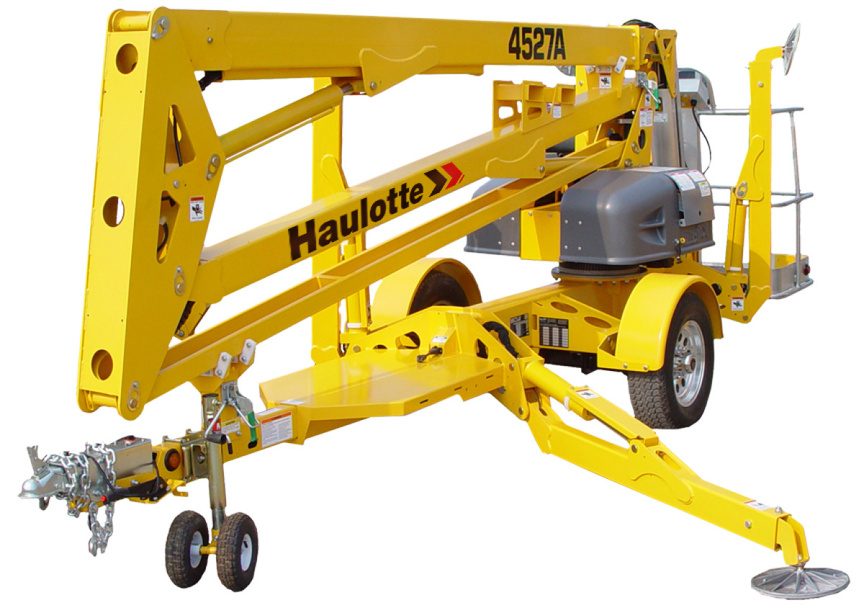

Haulotte 4527A Specs
Quick-reference specifications for the Haulotte 4527A aerial lift, taken from the manufacturer’s spec sheet.
- Lift capacity
- 500 lb
- Platform height
- 45 ft
- Working height
- 51 ft
Performance 8 specs
| Working height | 51 ft |
|---|---|
| Horizontal outreach (from centerline) | 27 ft |
| Horizontal outreach (from edge of footpad) | 21 ft |
| Lift capacity | 500 lb |
| Turntable rotation | 350° non-continuous |
| Jib – Vertical Motion | 150° (+70 / – 80) |
| Leveling capability | 12.5 ° |
| Tow speed rating | 65 mph |
Dimensions 7 specs
| Platform height | 45 ft |
|---|---|
| Up and over height | 20 ft 9 in |
| Jib – length | 4 ft 3 in |
| Length – stowed | 20 ft 8 in |
| Height stowed | 6 ft 8 in |
| Platform size | 4 ft 1 in x 2 ft 9 in |
| Tire size | ST 225/75 R15 |
Weight 2 specs
| Tongue weight (no options) | 290 lb |
|---|---|
| Weight (no options) | 4,200 lb |
Power / Engine 1 spec
| Power source | 4 x 6 V 245 amp-hr |
|---|
