Aerial Lift · Haulotte

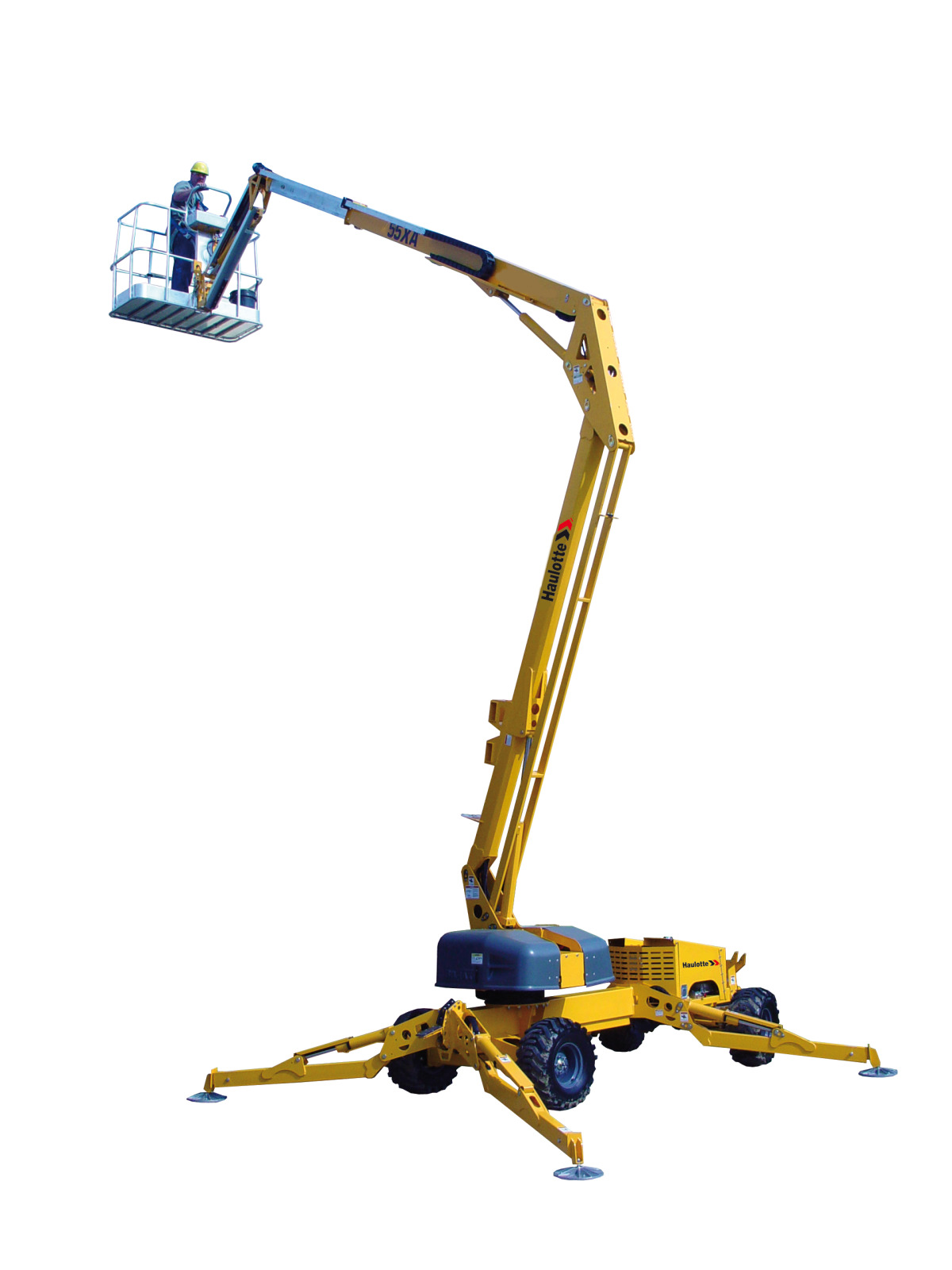

Haulotte 55XA Specs

Quick-reference specifications for the Haulotte 55XA aerial lift, taken from the manufacturer’s spec sheet.

Download Spec Sheet (PDF)View PDF

Lift capacity: 500 lb
Platform height: 55 ft 3 in
Working height: 61 ft 3 in
Weight: 6,000 lb

Performance 8 specs

Working height	61 ft 3 in
Horizontal outreach (from centerline)	33 ft 5 in
Horizontal outreach (from edge of footpad)	27 ft 4 in
Lift capacity	500 lb
Jib – Vertical Motion	150° (+70 / -80)
Drive speed	4 mph (max)
Gradeability	45%
Turntable rotation	350° non-continuous

Dimensions 10 specs

Platform height	55 ft 3 in
Up and over height	23 ft 1 in
Jib – length	4 ft 3 in
Length – stowed	21 ft 2 in
Width stowed	5 ft 8 in
Height stowed	6 ft 9 in
Wheelbase	10 ft 1 in
Ground clearance	10 in
Platform size	5 ft x 2 ft 6 in
Outrigger footprint	13 ft 11 in x 12 ft 9 in

Weight 1 spec

Weight	6,000 lb

Power / Engine 1 spec

Engine	26.5 hp gas
