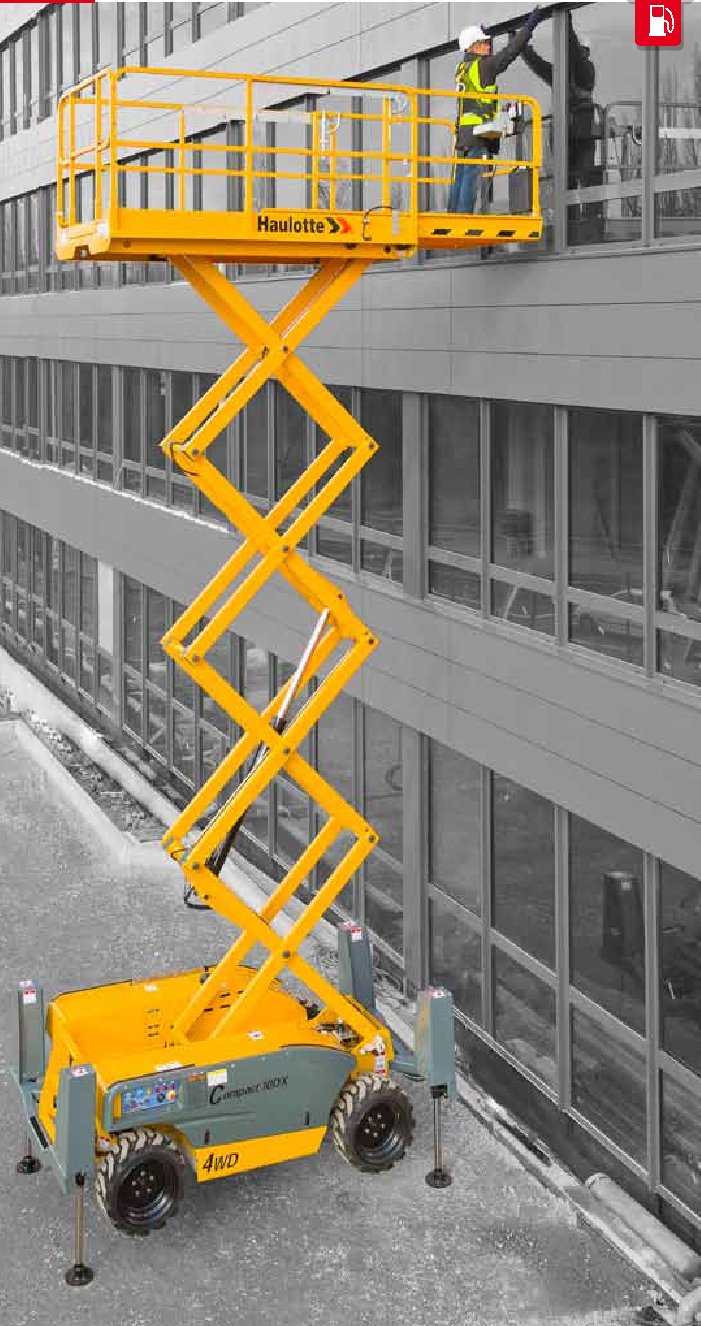

Haulotte COMPACT 10DX Specs
Quick-reference specifications for the Haulotte COMPACT 10DX aerial lift, taken from the manufacturer’s spec sheet.
- Lift capacity
- 565 kg
- Platform height
- 8.15 m
- Working height
- 10.15 m
- Weight
- 3440 kg
Performance 7 specs
| Working height | 10.15 m |
|---|---|
| Lift capacity | 565 kg |
| Drive speed | 0,8 – 5,5 km/h |
| Turning radius – outside | 3.5 m |
| Lift / lower speed | 35 s / 46 s |
| Gradeability | 40 % |
| Tires – foam-filled | 26×12-16.5 |
Dimensions 12 specs
| Platform height | 8.15 m |
|---|---|
| Length | 3.17 m |
| Width | 1.8 m |
| Height – stowed | 2.43 m |
| Storage height | 1.57 m |
| Platform length | 2.5 m |
| Extended platform length | 3.7 m |
| Platform extension length | 1.2 m |
| Platform width | 1.54 m |
| Wheelbase | 1.87 m |
| Ground clearance | 27 cm |
| Number of extensions | 1 |
Weight 1 spec
| Weight | 3440 kg |
|---|
Power / Engine 1 spec
| Engine | 24.8 hp (18.5 kW -) |
|---|
Hydraulics / Fluids 1 spec
| Hydraulic system capacity | 75 l |
|---|
