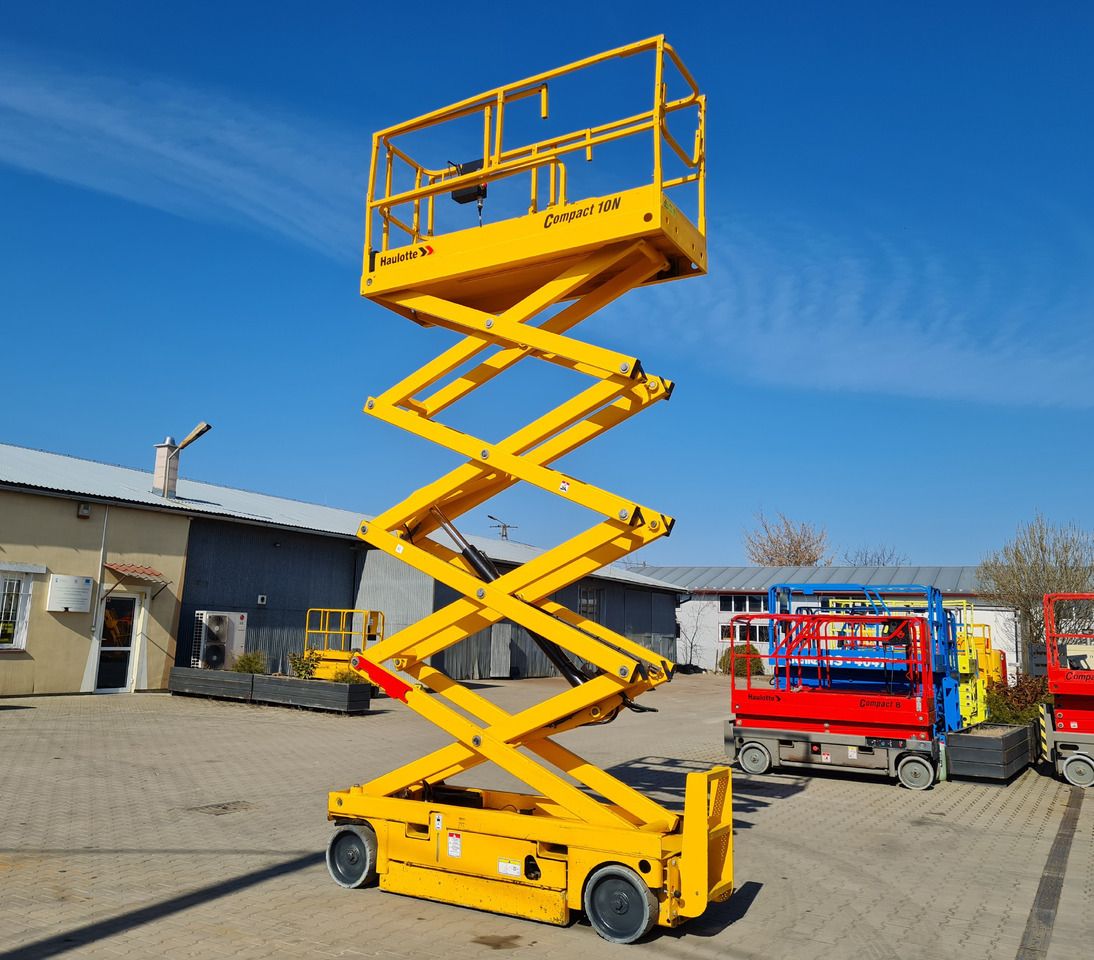

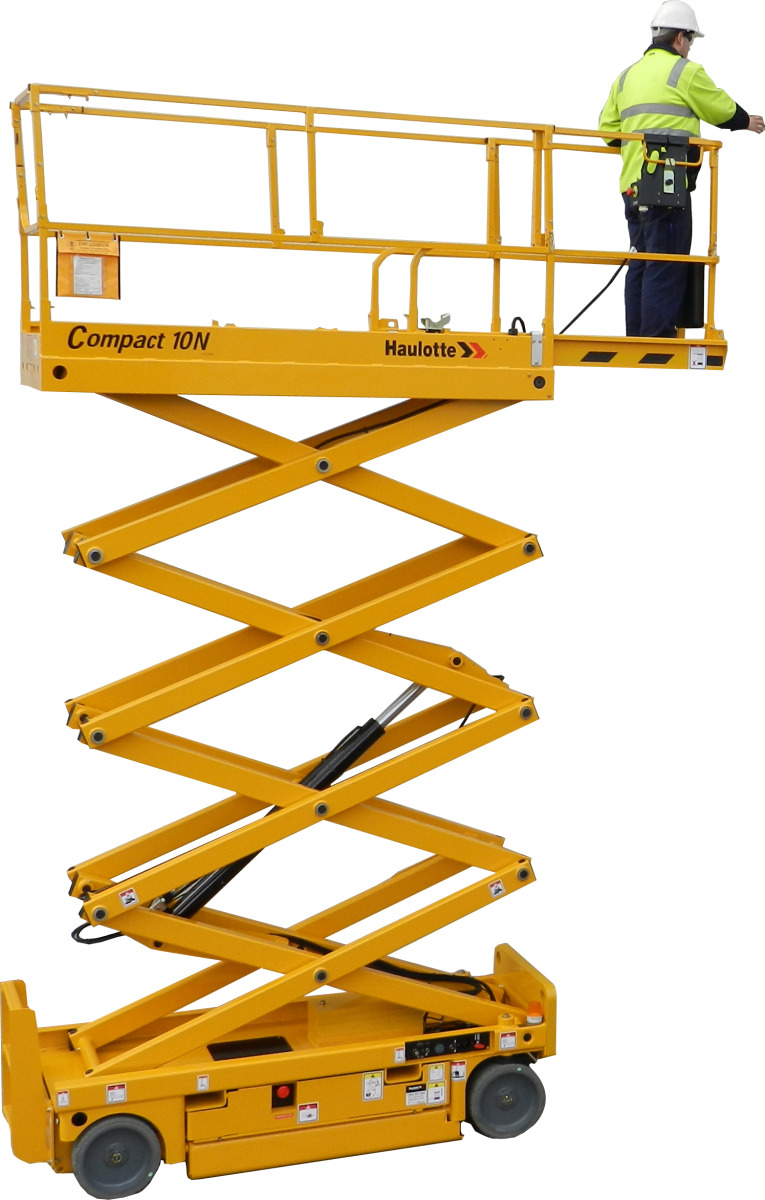

Haulotte COMPACT 10N Specs
Quick-reference specifications for the Haulotte COMPACT 10N aerial lift, taken from the manufacturer’s spec sheet.
- Lift capacity – inside
- 230 kg
- Platform height
- 8 m
- Working height
- 10 m
- Weight
- 2160 kg
Performance 7 specs
| Working height | 10 m |
|---|---|
| Lift capacity – inside | 230 kg |
| Drive speed | 1 – 3.5 km/h |
| Gradeability | 23 % |
| Tilt | 2 ° |
| Lift / lower speed | 51 s / 42 s |
| Tyres – non marking | 15x |
Dimensions 11 specs
| Platform height | 8 m |
|---|---|
| Platform length – outside | 2.3 m |
| Platform length – extended | 3.22 m |
| Length – extension | 0.92 m |
| Storage height | 1.33 m |
| Height – stowed | 2.17 m |
| Overall width | 0.81 m |
| Length | 2.48 m |
| Wheelbase | 1.86 m |
| Ground clearance – Centre | 12.5 cm |
| Ground clearance – Pothole guards deployed | 2.5 cm |
Weight 1 spec
| Weight | 2160 kg |
|---|
Hydraulics / Fluids 1 spec
| Hydraulic system capacity | 25 l |
|---|
