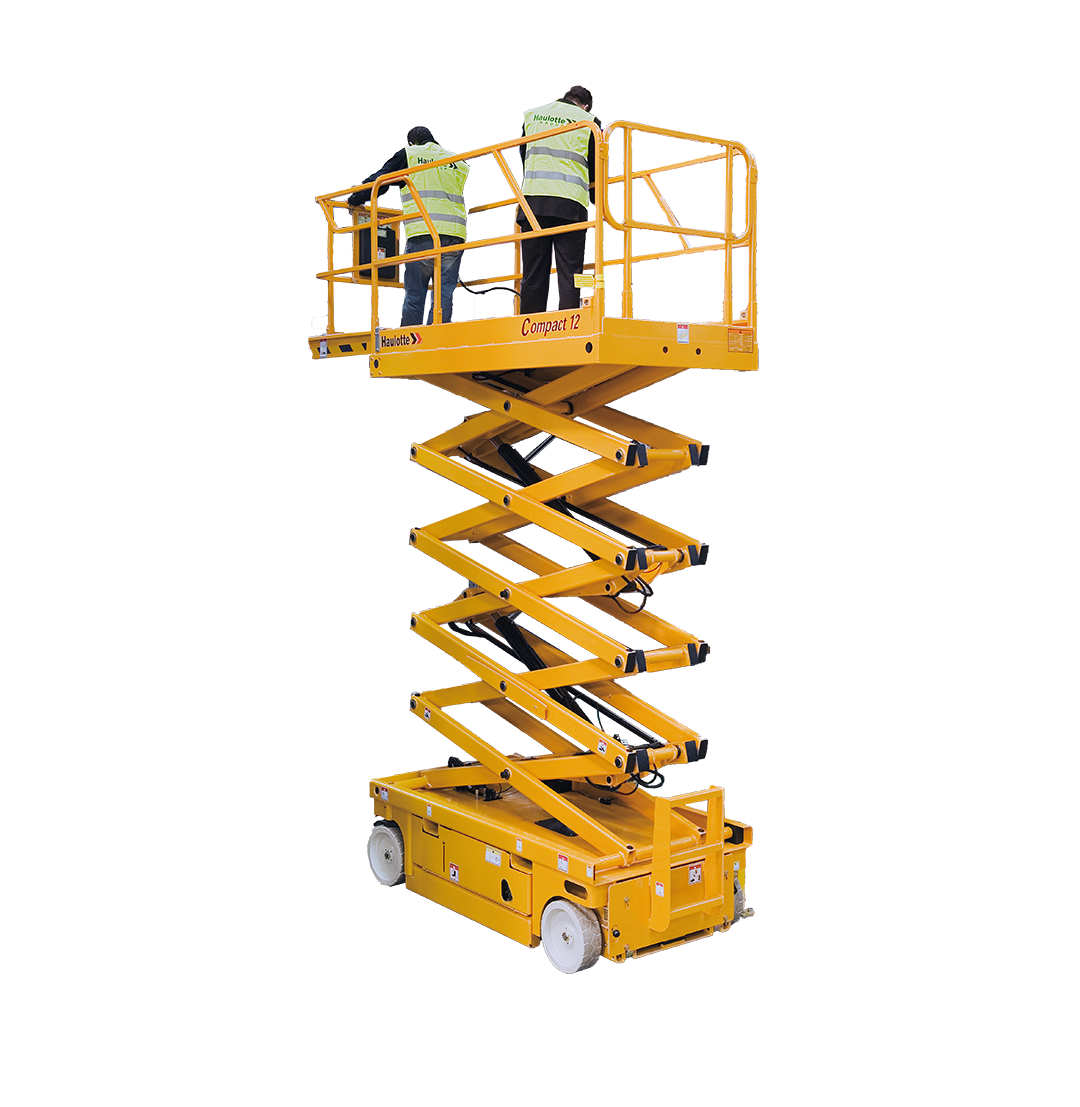

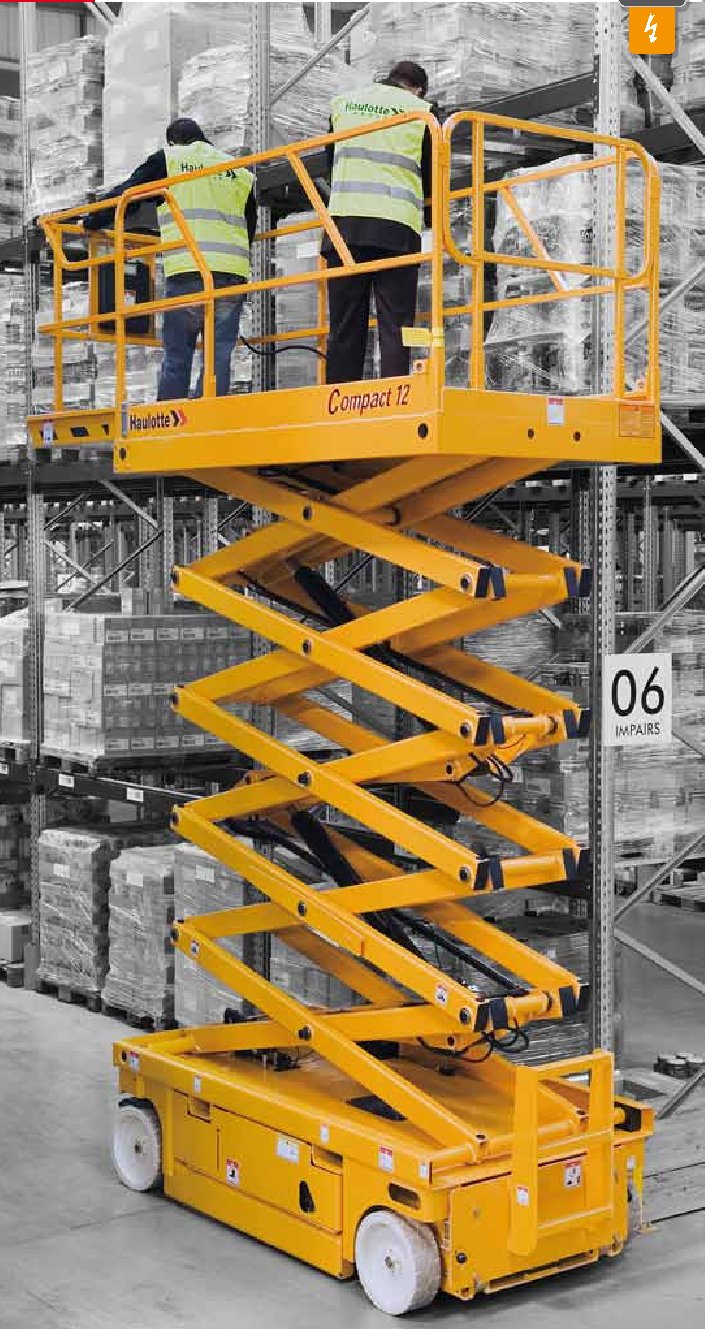

Haulotte COMPACT 12 Specs

Quick-reference specifications for the Haulotte COMPACT 12 aerial lift, taken from the manufacturer’s spec sheet.

Performance 6 specs

Platform height	32 ft 10 in (10 m)
Platform length – outside	7 ft 7 in (2.3 m)
Platform length – extended	10 ft 7 in (3.22 m)
Length – extension	3 ft (0.92 m)
Storage height	5 ft (1.53 m)
Height – stowed	7 ft 10 in (2.38 m)
Overall width	3 ft 11 in (1.2 m)
Wheelbase	6 ft 1 in (1.86 m)
Ground clearance – Centre	5 in (13 cm)
Ground clearance – Pothole guards deployed	1 in (2.5 cm)

Hydraulic system capacity	25 l
