Equipment Spec Sheet

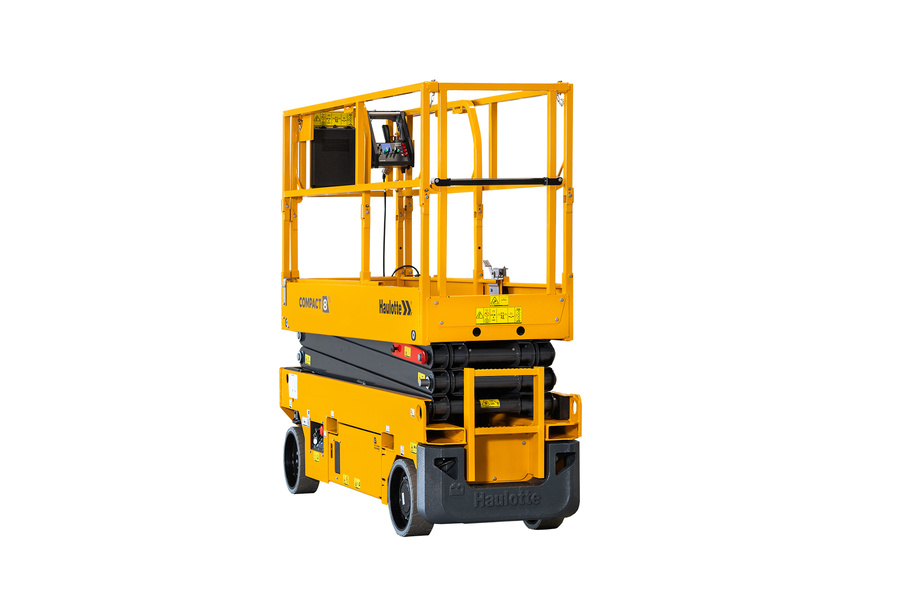

Haulotte Compact 8 Spec Sheet
Quick-reference specifications for the Haulotte Compact 8. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Working height: 8.2 m
Platform height: 6.2 m
Overall width: 0.81 m
Driveable at full height Load capacity up to: 350 kg
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Driveable at full height Load capacity up to | 350 kg |
|---|---|
| Working height | 8.2 m |
| Platform height | 6.2 m |
| Lift capacity – inside | 350 kg |
| Gradeability | 23 % |
| Lift capacity – outside | 120 kg |
Dimensions
| standard doorways Width of | 81 cm to operate in |
|---|---|
| Platform length – extended | 3.23 m |
| Platform width – outside | 0.81 m |
| Height – stowed | 2 m |
| Length – extension | 1.13 m |
| Ground clearance – Pothole guards deployed | 2.5 cm |
| Overall width | 0.81 m |
| Length | 2.49 m |
Weights & Electrical
| COMPACT | 10N |
|---|---|
| I COMPACT 8 / COMPACT | 10N |
| TECHNICAL DATA COMPACT | 10N |
| Weight | 2.31 m |
Powertrain & Systems
| Non-marking tires | 15×5 |
|---|
Hydraulics & Capacities
| Hydraulic system capacity | 27 l |
|---|
