Equipment Spec Sheet

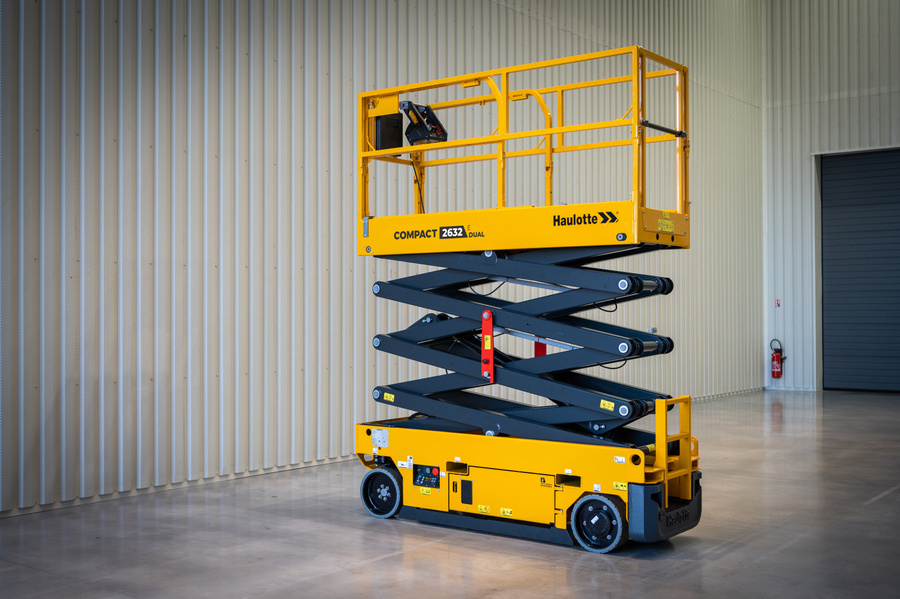

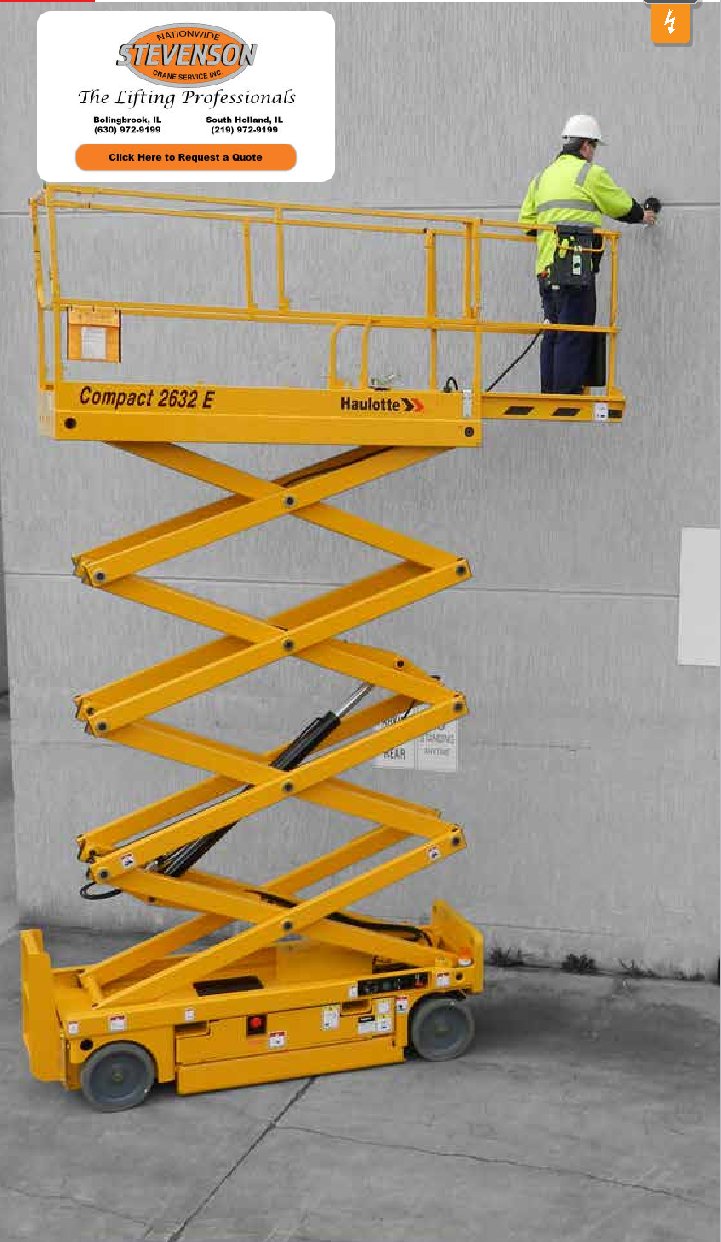

Haulotte Compact 2632E Spec Sheet
Quick-reference specifications for the Haulotte Compact 2632E. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Working height 26 ft: 4 in
Platform height 20 ft: 4 in
Overall width 2 ft: 8 in
Driveable at full height Load capacity up to: 770 lbs
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Driveable at full height Load capacity up to | 770 lbs |
|---|---|
| Working height 26 ft | 4 in |
| Platform height 20 ft | 4 in |
| Lift capacity – inside | 770 lbs |
| Gradeability | 23 % |
| Lift capacity – outside | 265 lbs |
Dimensions
| standard doorways Width of 2 ft | 7 in to operate |
|---|---|
| Platform length – extended 10 ft | 7 in |
| Platform width – outside 2 ft | 8 in |
| Height – stowed 6 ft | 7 in |
| Extension length 3 ft | 8 in |
| Driveable at full height up to 7 ft | 10 in |
| Ground clearance – Pothole guards deployed | 1 in |
| Overall width 2 ft | 8 in |
| Length 8 ft | 2 in |
Weights & Electrical
| ELECTRIC SCISSOR LIFTS COMPACT | 2032 E |
|---|---|
| COMPACT | 2632 E |
| maintain Compact | 2032 E |
| Compact 2632 E | 6’7″ |
| I COMPACT 2032 E / COMPACT | 2632 E |
| TECHNICAL DATA COMPACT | 2632 E |
| Haulotte Group – COMPACT | 2032 E |
| Weight 7 ft | 7 in |
Powertrain & Systems
| Non-marking tires | 15×5 |
|---|
Hydraulics & Capacities
| Hydraulic system capacity | 7.1 gal |
|---|
