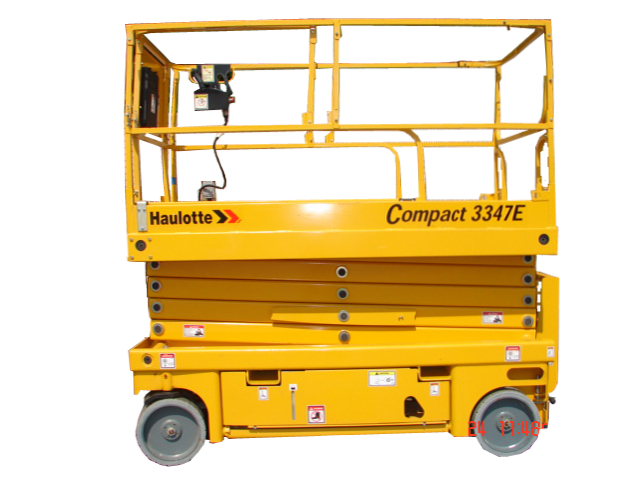

Haulotte COMPACT 3347E Specs

Quick-reference specifications for the Haulotte COMPACT 3347E aerial lift, compiled from published specifications.

Platform Height: 32 ft 10 in10 m
Max Working Height: 39 ft 4 in12 m
Max Gradeability: 23%

Performance 11 specs

Load Capacity	660 lb (300 kg)
Max Working Height	39 ft 4 in (12 m)
Platform Height	32 ft 10 in (10 m)
Lifting Time	85 s
Lowering Time	50 s
Max Travel Speed (Machine Folded)	2.17 mph (3.5 km/h)
Max Travel Speed (Machine Raised)	0.62 mph (1 km/h)
Max Gradeability	23%
Max Permissible Tilt	3°
Outside Turning Radius	8 ft 2 in (2.5 m)
Inside Turning Radius	7 in (0.2 m)

Dimensions 10 specs

Overall Length	8 ft 2 in (2.31 m)
Overall Width	3 ft 11 in (1.20 m)
Height Folded (Guard Rail)	7 ft 10 in (2.38 m)
Height Folded (Platform)	4 ft 2 in (1.26 m)
Wheelbase	6 ft 1 in (1.86 m)
Platform Dimensions (Outside)	7 ft 7 in x 3 ft 11 in (2.3 m x 1.2 m)
Platform Extension Length	3 ft (0.92 m)
Platform Floor Clearance	5 in (130 mm)
Floor Clearance (Pothole Deployed)	0.98 in (25 mm)
Ground Clearance	5 in (130 mm)

Weight 1 spec

Total Weight	5,800 lb (2,630 kg)

Power / Engine 1 spec

System Voltage	24 V

Hydraulics / Fluids 1 spec

Hydraulic Tank Capacity	6.6 gallons (25 L)
