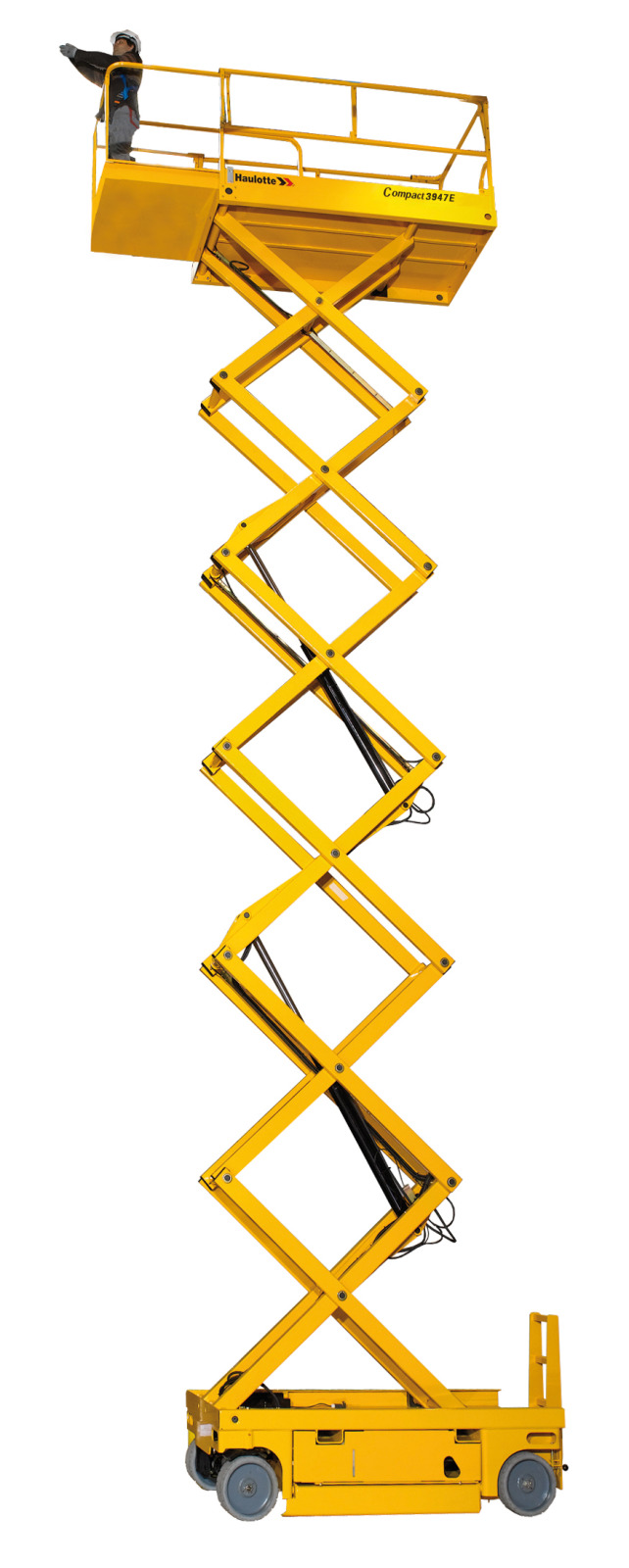

Haulotte COMPACT 3947E Specs

Quick-reference specifications for the Haulotte COMPACT 3947E aerial lift, taken from the manufacturer’s spec sheet.

Performance 3 specs

Platform height	38 ft 7 in
Platform length – extended	10 ft 11 in
Extension length	37 in
Platform width – outside	47 in
Height – stowed	8 ft 11 in
Height – guardrails lowered	6 ft 8 in
Overall width	47 in
Length	8 ft 2 in
Wheelbase	6 ft 1 in
Ground clearance	5 in
Ground clearance – pothole guards deployed	1 in

Weight	6,769 lb

Hydraulic system capacity	4 gal
