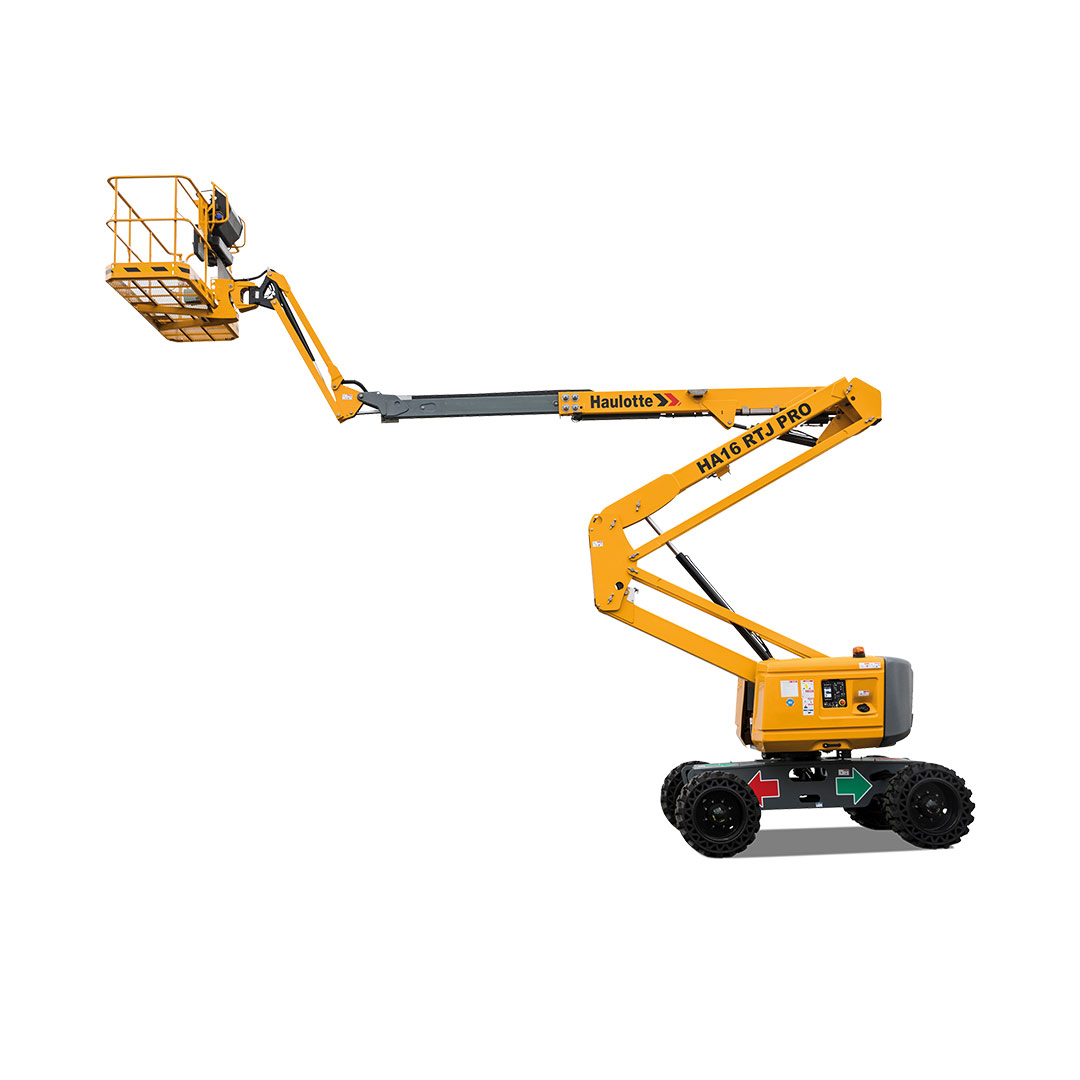

Haulotte HA16RTJ Specs
Quick-reference specifications for the Haulotte HA16RTJ aerial lift, taken from the manufacturer’s spec sheet.
- Platform height
- 14 m
- Working height
- 16 m
- Weight
- 6,200 kg
- Gradeability
- 40 %
Performance 11 specs
| Working height | 16 m |
|---|---|
| Horizontal outreach | 8.3 m |
| Up and over clearance | 7.65 m |
| Vertical jib rotation | 140° (- 80° / + 60°) |
| Platform rotation | 165° (- 75° / + 90°) |
| Turntable rotation | 355° non continus |
| Tilt | 5 ° |
| Drive speed | 5.2 km/h |
| Gradeability | 40 % |
| Turning radius – outside | 4.5 m |
| Tyres – solid rough terrain | 850 x 340 mm |
Dimensions 9 specs
| Platform height | 14 m |
|---|---|
| Platform size | 1.83 x 0.80 m |
| Length – stowed | 6.75 m |
| Storage / transport length | 5.05 m |
| Width | 2.3 m |
| Storage / transport height | 2.4 m |
| Tailswing | 10 cm |
| Wheelbase | 2.1 m |
| Ground clearance | 38 cm |
Weight 1 spec
| Weight | 6,200 kg |
|---|
