Aerial Lift · Haulotte

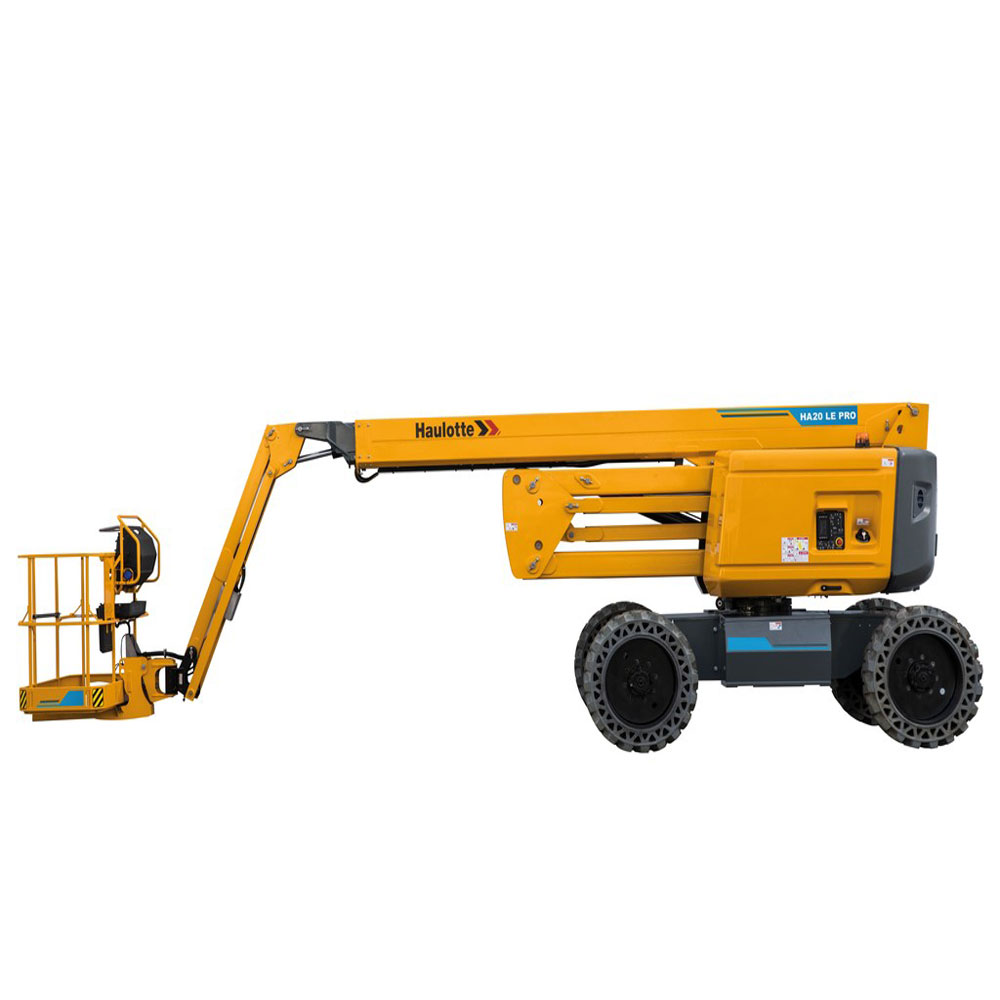

Haulotte HA20LE PRO Specs

Quick-reference specifications for the Haulotte HA20LE PRO aerial lift, taken from the manufacturer’s spec sheet.

Download Spec Sheet (PDF)View PDF

Platform height: 18.76 m
Working height: 20.76 m
Weight: 9,785 kg
Gradeability: 45 %

Performance 10 specs

Working height	20.76 m
Horizontal outreach	11.91 m
Up and over clearance	8.52 m
Platform rotation	180° (+ 90° / – 90°)
Turntable rotation	360° continuous
Tilt	4 °
Proportional drive speed	0.7 – 5 km/h
Gradeability	45 %
Tyres – solid rough terrain	1025 x 365 mm
Turning radius – outside	3.7 m

Dimensions 8 specs

Platform height	18.76 m
Platform size	1.83 x 0.80 m
Width	2.41 m
Height – stowed	2.5 m
Length – storage /transport	6.19 m
Tailswing	41 cm
Wheelbase	2.5 m
Ground clearance	46 cm

Weight 1 spec

Weight	9,785 kg

Haulotte HA20LE PRO spec sheet (PDF)

Open in new tab

haulotte-ha20le-pro
