Aerial Lift · Haulotte

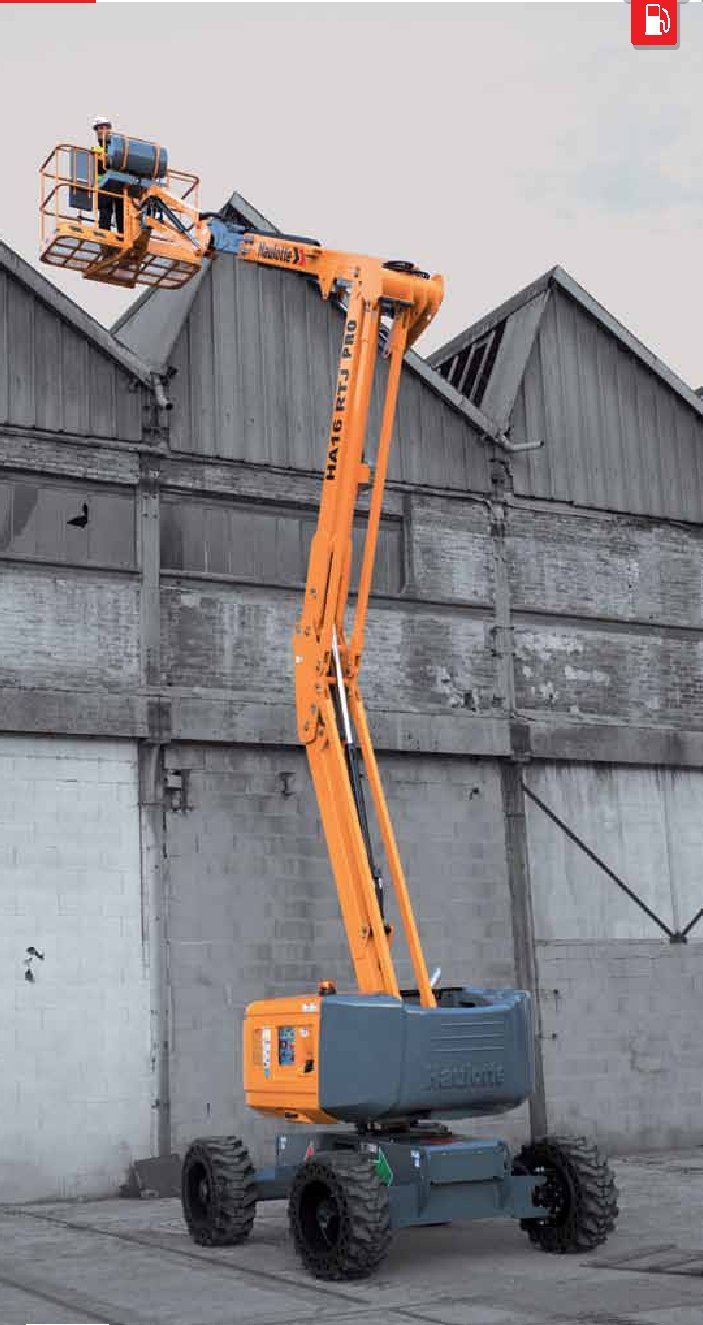

Haulotte HA16RTJPRO Specs
Quick-reference specifications for the Haulotte HA16RTJPRO aerial lift, taken from the manufacturer’s spec sheet.
- Platform height
- 45 ft 11 in14 m
- Working height
- 51 ft 11 in16 m
- Weight
- 14,663 lb6,650 kg
- Gradeability
- 40 %
Performance 11 specs
| Working height | 51 ft 11 in (16 m) |
|---|---|
| Horizontal outreach | 27 ft 3 in (8.3 m) |
| Up and over clearance | 25 ft 1 in (7.65 m) |
| Vertical jib rotation | 140° (-80°/+60°) |
| Platform rotation | 165° (-75°/+90°) |
| Turntable rotation | 360° continuous |
| Tilt | 5 ° |
| Drive speed | Up to 3.5 mph (Up to 5.6 km/h) |
| Gradeability | 40 % |
| Turning radius – outside | 12 ft 4 in (3.75 m) |
| Tires cured on solid Rough Terrain | 14×17.5 |
Dimensions 9 specs
| Platform height | 45 ft 11 in (14 m) |
|---|---|
| Platform size | 8 ft x 3 ft (2.44 m x 0.91 m) |
| Length – stowed | 22 ft 6 in (6.87 m) |
| Transport length (jib tucked under) | 16 ft 9 in (5.10 m) |
| Width | 8 ft (2.44 m) |
| Transport height | 8 ft 3 in (2.51 m) |
| Jib length | 3 ft 11 in (1.2 m) |
| Wheelbase | 6 ft 11 in (2.1 m) |
| Ground clearance | 15 in (38 cm) |
Weight 1 spec
| Weight | 14,663 lb (6,650 kg) |
|---|
Hydraulics / Fluids 2 specs
| Hydraulic system capacity | 20.1 gal (76 l) |
|---|---|
| Fuel tank capacity | 16.4 gal (62 l) |
