Aerial Lift · Haulotte

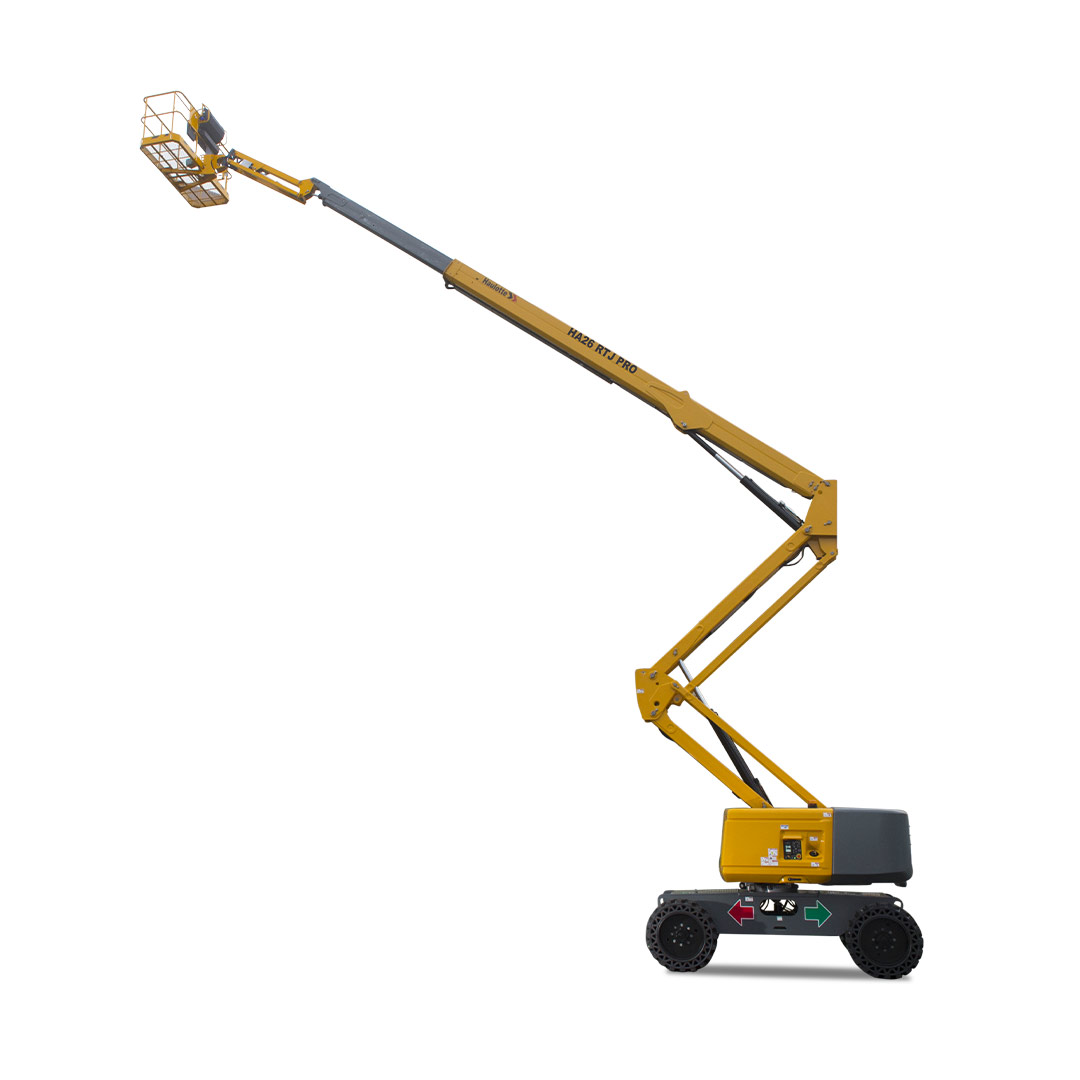

Haulotte HA26RTJPRO Specs
Quick-reference specifications for the Haulotte HA26RTJPRO aerial lift, taken from the manufacturer’s spec sheet.
- Platform height
- 24.4 m
- Working height
- 26.4 m
- Weight
- 15,500 kg
- Gradeability
- 45 %
Performance 12 specs
| Working height | 26.4 m |
|---|---|
| Horizontal outreach | 17.5 m |
| Up and over clearance | 9.3 m |
| Turning radius – outside | 4.35 m |
| Platform rotation | 180 ° |
| Vertical jib rotation | 133° (- 65° / + 68°) |
| Turntable rotation | 360° continuous |
| Tilt | 4 ° |
| Drive speed | 5 km/h |
| Gradeability | 45 % |
| Maximum wind speed rating | 45 km/h |
| Tyres – solid rough terrain | 1025 x 365 mm |
Dimensions 9 specs
| Platform height | 24.4 m |
|---|---|
| Platform size | 2.44 x 0.91 m |
| Width | 2.48 m |
| Height – stowed | 2.97 m |
| Storage / transport length | 9.4 m |
| Storage / transport height | 2.98 m |
| Wheelbase | 2.8 m |
| Ground clearance | 48 cm |
| Tailswing | 0.76 m |
Weight 1 spec
| Weight | 15,500 kg |
|---|
Power / Engine 1 spec
| Power source | Kubota, 36.5 kW (49.6 hp), Stage 3A |
|---|
