Aerial Lift · Haulotte

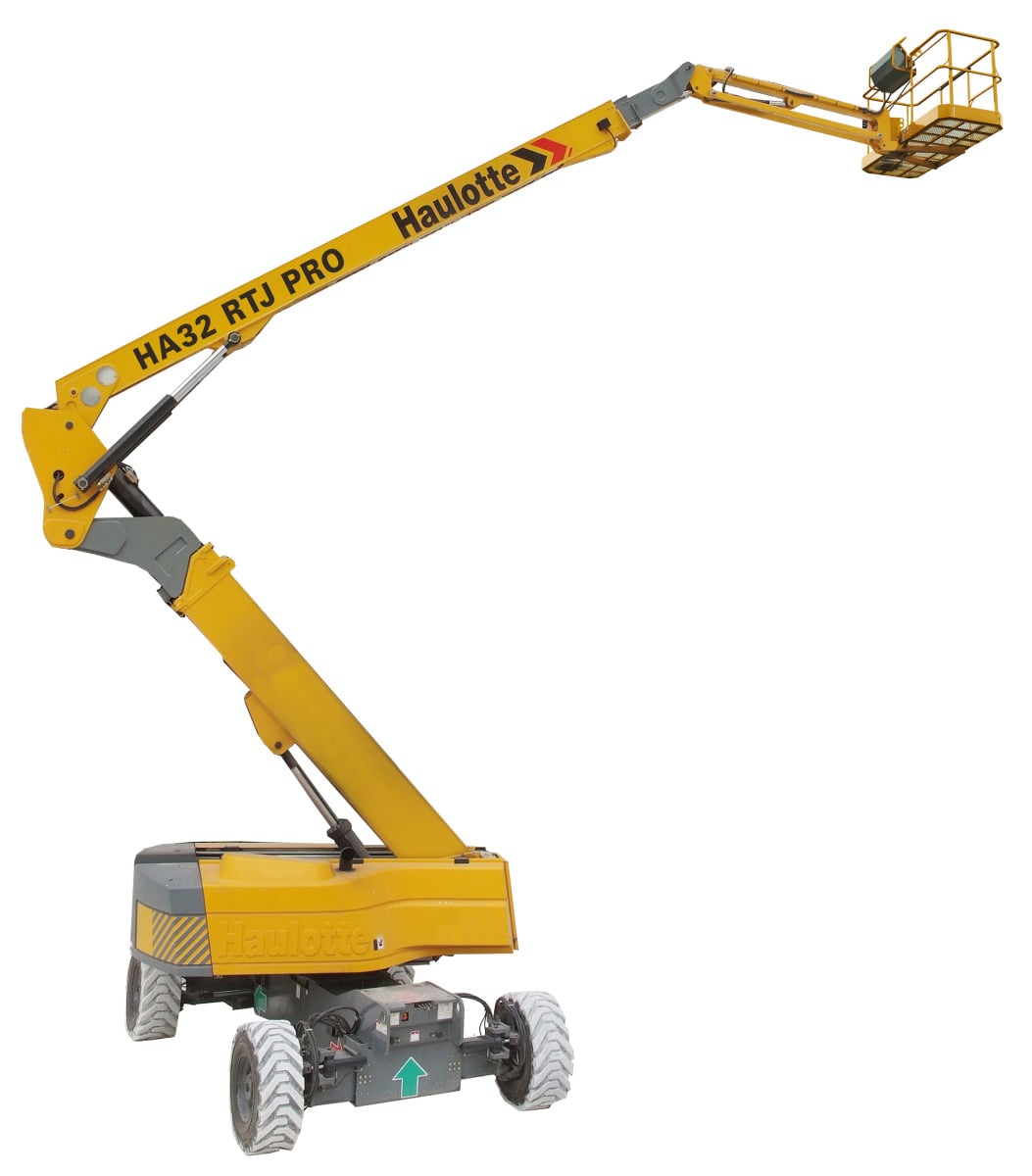

Haulotte HA32RTJPRO Specs
Quick-reference specifications for the Haulotte HA32RTJPRO aerial lift, taken from the manufacturer’s spec sheet.
- Platform height
- 29.8 m
- Working height
- 31.8 m
- Weight
- 20,100 kg
- Gradeability
- 40 %
Performance 13 specs
| Working height | 31.8 m |
|---|---|
| Horizontal outreach | 21.6 m |
| Up and over clearance | 11.35 m |
| Below ground reach | 5.5 m |
| Vertical jib rotation | 140° (+ 70 / – 70) |
| Platform rotation | 180° (+ 90 / – 90) |
| Turntable rotation | 360° continuous |
| Tilt | 5 ° |
| Gradeability | 40 % |
| Drive speed | 0.5 – 5 km/h |
| Maximum wind speed rating | 60 km/h |
| Turning radius – outside axle extended | 5.74 m |
| Tyres – foam-filled | 445 / 65-22.5 |
Dimensions 10 specs
| Platform height | 29.8 m |
|---|---|
| Platform size | 2.44 x 0.91 m |
| Length – stowed | 11.7 m |
| Width | 2.53 m |
| Storage / transport length | 8.9 m |
| Storage / transport height | 3.75 m |
| Width – with extended axles | 3.3 m |
| Tailswing | 3.3 m |
| Wheelbase | 3.5 m |
| Ground clearance | 38 cm |
Weight 1 spec
| Weight | 20,100 kg |
|---|
