Aerial Lift · Haulotte

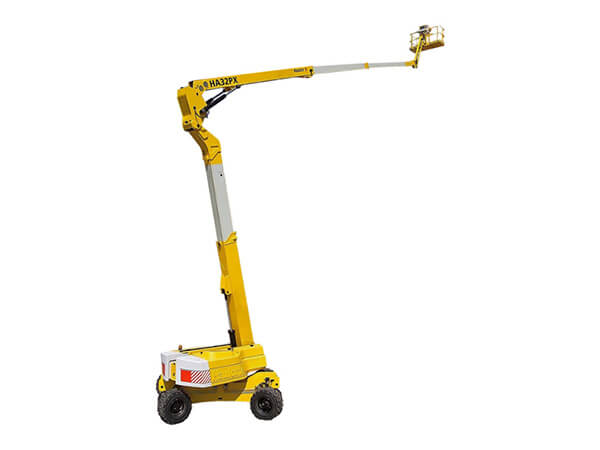

Haulotte HA32PX Specs
Quick-reference specifications for the Haulotte HA32PX aerial lift, taken from the manufacturer’s spec sheet.
- Platform capacity
- 551 lb250 kg
- Platform height
- 97 ft 9 in29.8 m
- Working height
- 104 ft 12 in31.8 m
- Weight
- 46,118 lb21,100 kg
Performance 7 specs
| Working height | 104 ft 12 in (31.8 m) |
|---|---|
| Maximum outreach | 69 ft 11 in (21.30 m) |
| Up and over clearance | 37 ft 3 in (11.35 m) |
| Platform capacity | 551 lb (250 kg) |
| Outside turning radius | 16 ft 8 in (5.10 m) |
| Drive speed | 3.1 mph (5 km/h) |
| Gradeability | 45% |
Dimensions 12 specs
| Platform height | 97 ft 9 in (29.8 m) |
|---|---|
| Fly jib angle of motion | 140° (+70° / -70°) |
| Length | 36 ft 7 in (11.20 m) |
| Width | 8 ft 2 in (2.50 m) |
| Width (with extended axles) | 10 ft 11 in (3.33 m) |
| Stowed height | 8 ft 10 in (2.70 m) |
| Wheelbase | 11 ft 6 in (3.50 m) |
| Ground clearance | 15 in (38 cm) |
| Platform size | 96 in x 32 in (2.44 m x 0.8 m) |
| Travel / transport length | 29 ft 2 in (8.90 m) |
| Travel / transport height | 10 ft 10 in (3.30 m) |
| Tailswing | 1 ft 8 in (0.50 m) |
Weight 1 spec
| Weight | 46,118 lb (21,100 kg) |
|---|
Hydraulics / Fluids 4 specs
| Hydraulic platform rotation | 180° |
|---|---|
| Tyres (foam filled) | 445 / 65 – 22.5 |
| Hydraulic tank | 52 gal – 43.10 imp gal (196 l) |
| Fuel tank | 37 gal – 30.79 imp gal (140 l) |
