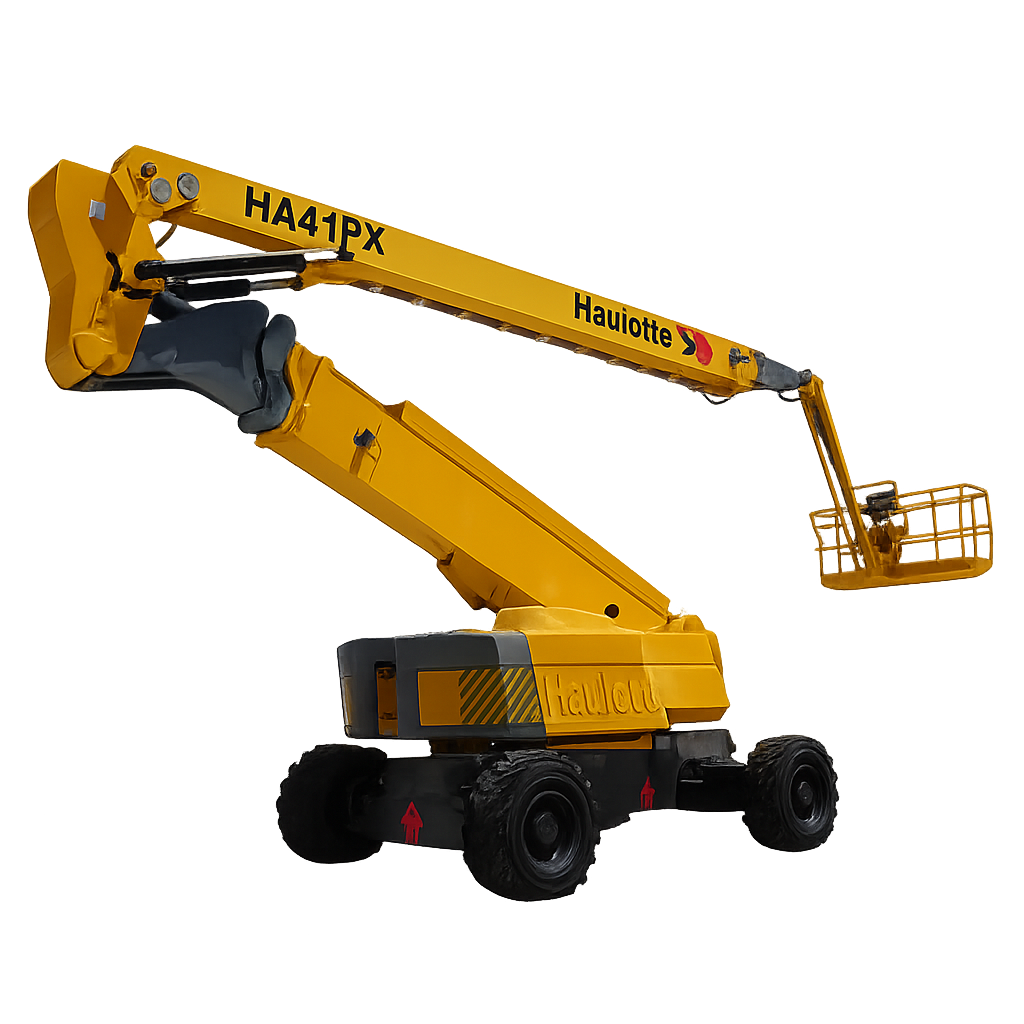

Haulotte HA41PX Specs
Quick-reference specifications for the Haulotte HA41PX aerial lift, taken from the manufacturer’s spec sheet.
- Lift capacity
- 507 lb230 kg
- Platform height
- 129 ft 7 in39.5 m
- Working height
- 136 ft 2 in41.5 m
- Weight
- 50,936 lb23100 kg
Performance 12 specs
| Working height | 136 ft 2 in (41.5 m) |
|---|---|
| Horizontal outreach | 65 ft 0 in (19.8 m) |
| Up and over clearance | 58 ft 3 in (17.75 m) |
| Lift capacity | 507 lb (230 kg) |
| Vertical jib rotation | 130° (+65/-65) |
| Platform rotation | 180° (+90/-90) |
| Turntable rotation (continuous) | 360° |
| Tilt | 4° |
| Drive speed | 0.2 – 3.1 mph (0,3 – 5 km/h) |
| Gradeability | 40% |
| Turning radius – outside | 16 ft 9 in (5.1 m) |
| Tyres – foam-filled | 445/65-22.5 |
Dimensions 11 specs
| Platform height | 129 ft 7 in (39.5 m) |
|---|---|
| F x G – Platform size | 8 ft 0 in x 2 ft 7 in (2.44 x 0.8 m) |
| H – Length | 41 ft 4 in (12.6 m) |
| A – Storage length | 36 ft 1 in (11 m) |
| B – Width | 8 ft 2 in (2.5 m) |
| Width – with extended axles | 10 ft 11 in (3.33 m) |
| C – Height – stowed | 9 ft 10 in (2.99 m) |
| Storage height | 12 ft 2 in (3.7 m) |
| Tailswing | 12 ft 9 in (3.88 m) |
| D – Wheelbase | 11 ft 6 in (3.5 m) |
| E – Ground clearance | 15 in (38 cm) |
Weight 1 spec
| Weight | 50,936 lb (23100 kg) |
|---|
Power / Engine 1 spec
| Engine | 84.2 hp (62 kW -) |
|---|
