Aerial Lift · Haulotte

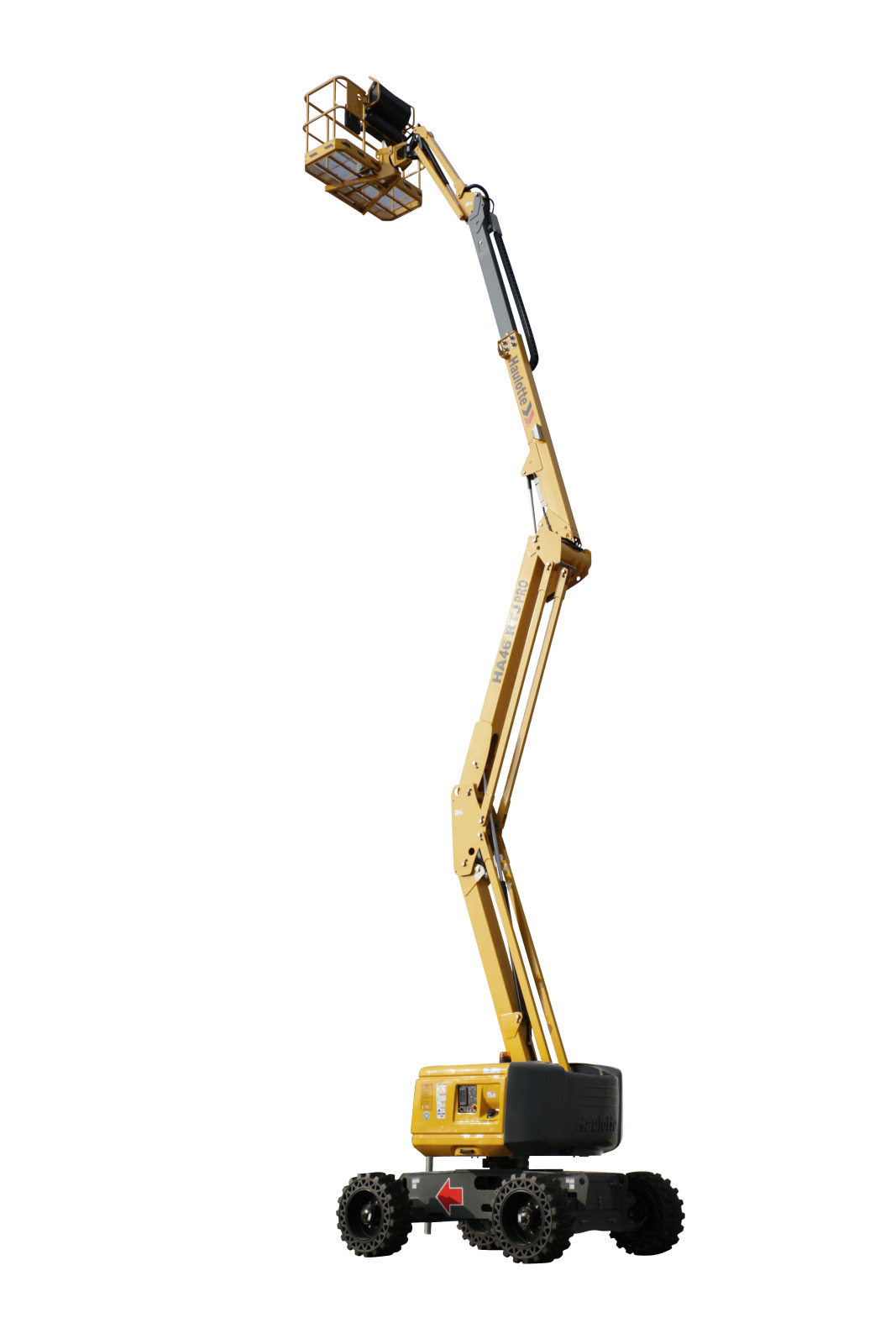

Haulotte HA46RTJPRO Specs
Quick-reference specifications for the Haulotte HA46RTJPRO aerial lift, compiled from published specifications.
- Lift Capacity
- 500 lb227 kg
- Platform Height
- 45 ft 11 in14.0 m
- Working Height
- 51 ft 11 in15.8 m
- Gradeability
- 40%
Performance 15 specs
| Working Height | 51 ft 11 in (15.8 m) |
|---|---|
| Platform Height | 45 ft 11 in (14.0 m) |
| Horizontal Outreach | 27 ft 3 in (8.3 m) |
| Up and Over Clearance | 25 ft 1 in (7.7 m) |
| Lift Capacity | 500 lb (227 kg) |
| Drive Speed | 3.2 mph (5.1 km/h) |
| Gradeability | 40% |
| Max Wind Speed Rating | 28 mph |
| Turning Radius – Outside | 12 ft 4 in (3.76 m) |
| Tilt Alarm | 5 degrees |
| Vertical Jib Rotation | 140° (-80°/+60°) |
| Platform Rotation | 165° (-75°/+90°) |
| Turntable Rotation | 360° continuous |
| Tailswing | 4 in (0.1 m) |
| Lifting Speed | 40 seconds |
Dimensions 9 specs
| Overall Length | 22 ft 2 in (6.76 m) |
|---|---|
| Overall Width | 7 ft 7 in (2.31 m) |
| Height – Stowed | 7 ft 7 in (2.31 m) |
| Storage/Transport Length | 16 ft 7 in (5.05 m) |
| Storage/Transport Height | 7 ft 10 in (2.39 m) |
| Wheelbase | 6 ft 11 in (2.11 m) |
| Ground Clearance | 15 in (0.38 m) |
| Platform Size | 95 in x 34.5 in (2.41 m x 0.88 m) |
| Tires – Solid Rough Terrain | 32.7 x 11.2 in |
Weight 1 spec
| Total Weight | 14,420 lb (6,542 kg) |
|---|
Power / Engine 3 specs
| Engine Model | V1505 E4B |
|---|---|
| Power Output | 24.8 hp (18.5 kW) |
| Emission Standard | TIER 4 final / Stage V |
Hydraulics / Fluids 1 spec
| Power to Platform | 110/230 V |
|---|
