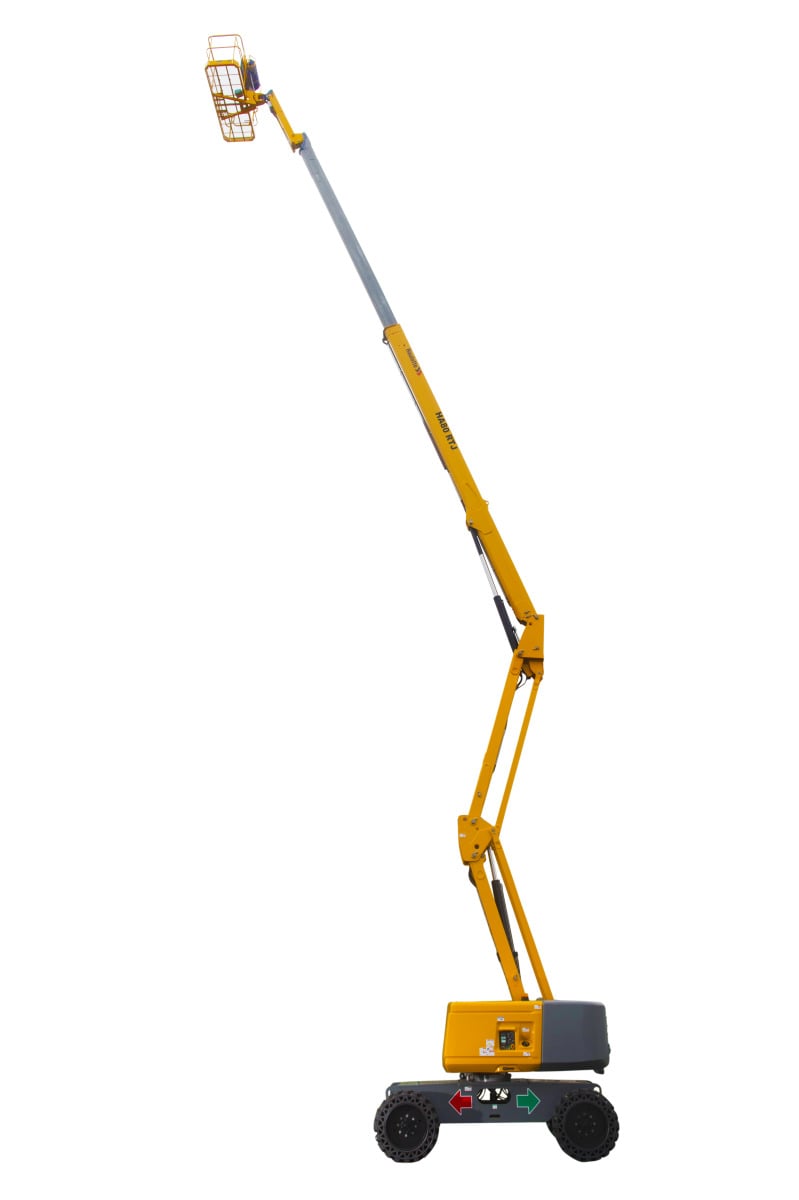

Haulotte HA80RTJPRO Specs

Quick-reference specifications for the Haulotte HA80RTJPRO aerial lift, taken from the manufacturer’s spec sheet.

Download Spec Sheet (PDF)View PDF

Platform height: 80 ft 1 in
Working height: 86 ft 1 in
Weight: 34,100 lb
Gradeability: 45 %

Performance 11 specs

Working height	86 ft 1 in
Horizontal outreach	57 ft 5 in
Platform rotation	180 °
Vertical jib rotation	133° (- 65° / + 68°)
Turntable rotation	360° continuous
Tilt alarm	4 °
Drive speed	3.1 mph
Maximum wind speed rating	28 mph
Gradeability	45 %
Turning radius – outside	14 ft 3 in
Tires – solid rough terrain	Cured on 40.4 x 14.4 in

Dimensions 10 specs

Platform height	80 ft 1 in
Up and over height	30 ft 6 in
Platform size	8 ft x 3 ft
Length	38 ft 8 in
Width	8 ft 2 in
Height – stowed	9 ft 9 in
Height – transport	9 ft 9 in
Tailswing	30 in
Wheelbase	9 ft 2 in
Ground clearance	19 in

Weight 1 spec

Weight	34,100 lb

Power / Engine 1 spec

Engine	Kubota 48.6 kW (66 hp), T4f
