Aerial Lift · Haulotte

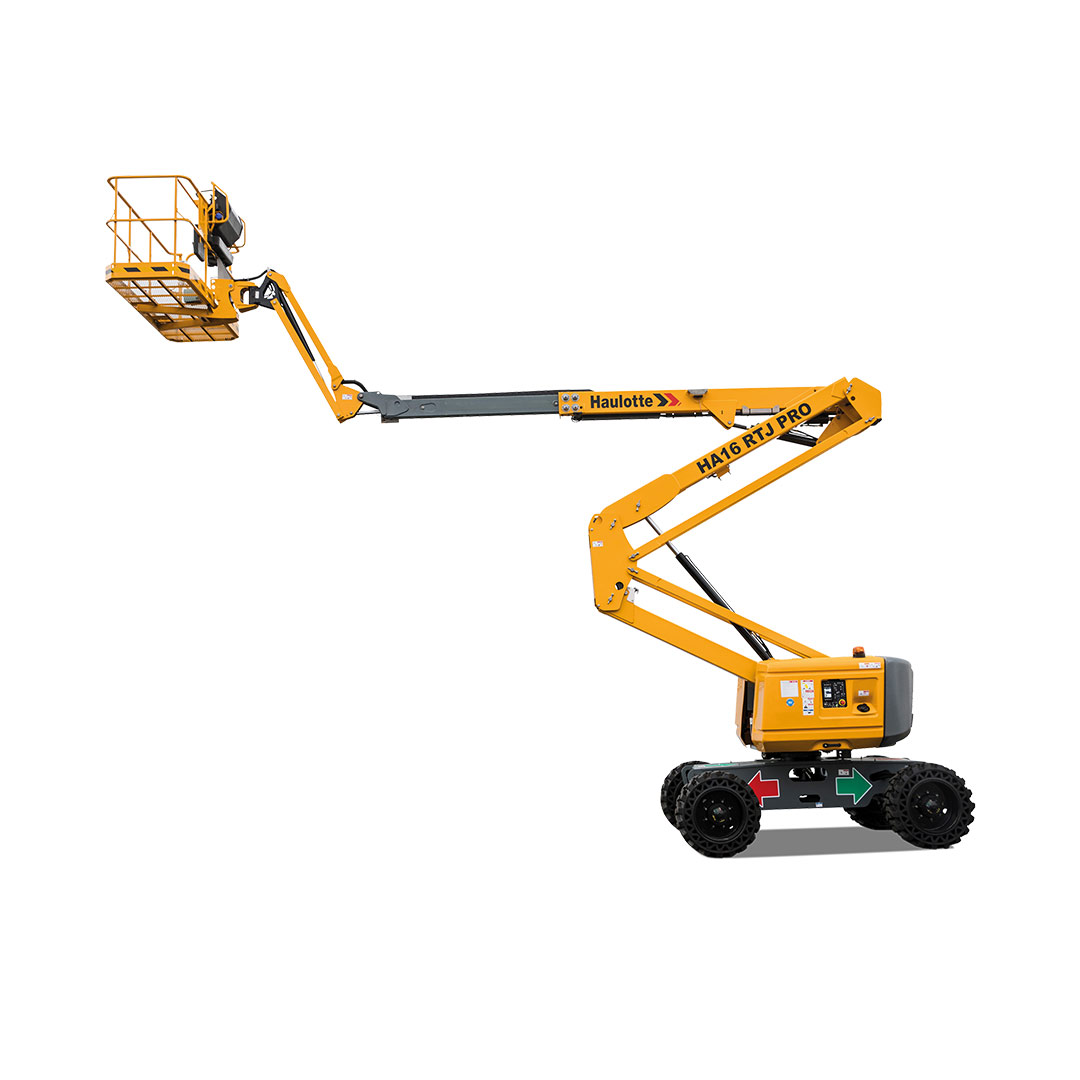

Haulotte HA61RTJPRO Specs

Quick-reference specifications for the Haulotte HA61RTJPRO aerial lift, taken from the manufacturer’s spec sheet.

Download Spec Sheet (PDF)View PDF

Platform height: 60 ft 8 in
Working height: 66 ft 8 in
Weight: 20,790 lb
Gradeability: 45 %

Performance 10 specs

Working height	66 ft 8 in
Horizontal outreach	39 ft
Tilt	4° – option 6°
Platform rotation	180° (+90° / -90°)
Turntable rotation	360° continuous
Drive speed	0.3 – 3 mph
Maximum wind speed rating	28 mph
Gradeability	45 %
Tires – solid rough terrain	3 ft x 1 ft 2 in
Turning radius – outside	17 ft 1 in

Dimensions 11 specs

Platform height	60 ft 8 in
Tailswing	1 ft 4 in
Length	28 ft 2 in
Width	8 ft
Storage / transport height	9 ft 9 in
Wheelbase	8 ft 2 in
Ground clearance – mini	11 in
Platform size	8 ft x 3 ft
Storage / transport length	20 ft 3 in
Up and over clearance	27 ft 11 in
Height – stowed	8 ft 1 in

Weight 1 spec

Weight	20,790 lb

Haulotte HA61RTJPRO spec sheet (PDF)
