Forklift · Hyster

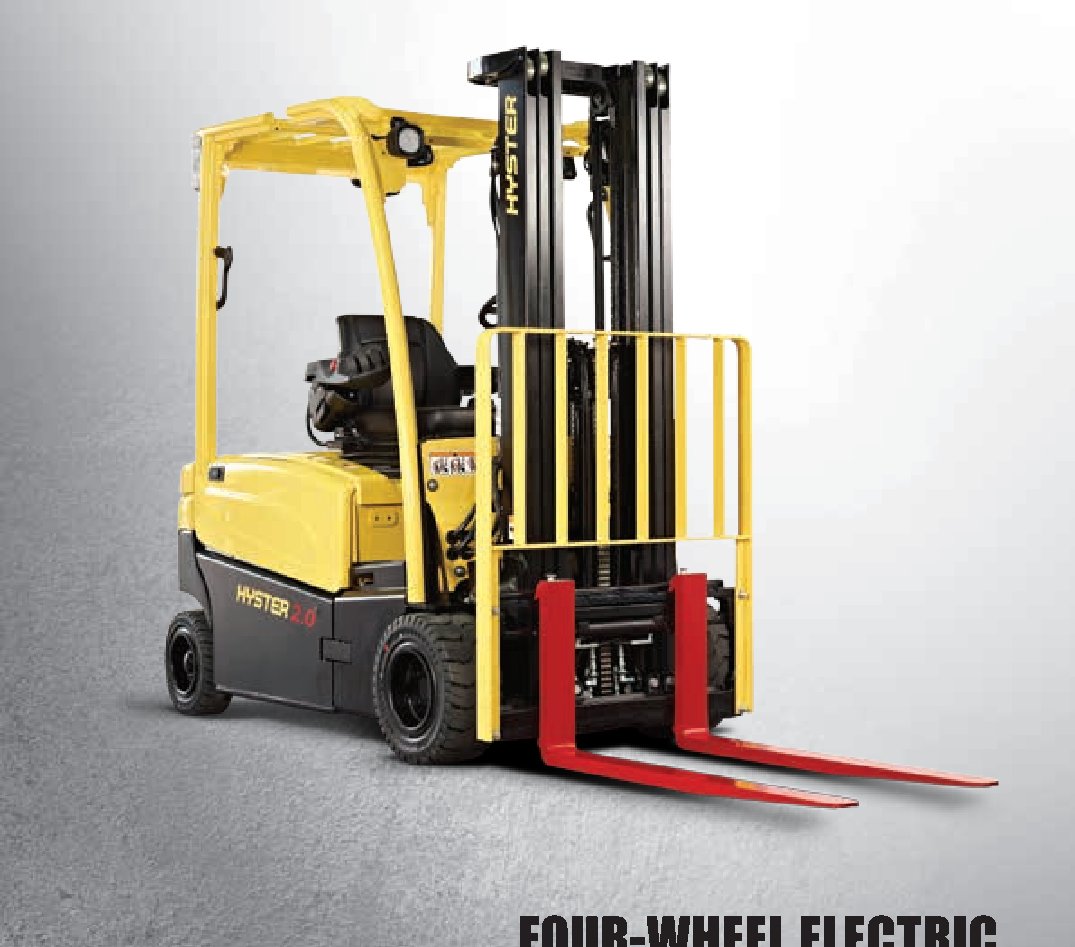

Hyster J1.6XN Specs
Quick-reference specifications for the Hyster J1.6XN forklift, from the manufacturer’s spec sheet and published specifications.
- Rated Capacity
- 3,527 lb1,600 kg
- Maximum Lift Height
- 18.0 ft5.500 m
- Operating Weight (MWB)
- 7,080 lb3,210 kg
Performance 5 specs
| Rated Capacity | 3,527 lb (1,600 kg) |
|---|---|
| Load Centre Distance | 19.7 in (500 mm) |
| Travel Speed (laden/unladen) | 9.9 mph (16 km/h) |
| Turning Radius (MWB) | 5.42 ft (1.654 m) |
| Turning Radius (LWB) | 5.78 ft (1.762 m) |
Dimensions 7 specs
| Total Width (MWB) | 42.4 in (1.076 m) |
|---|---|
| Total Width (LWB) | 41.3 in (1.050 m) |
| Construction Height (Mast Lowered) | 81.1 in (2.070 m) |
| Maximum Lift Height | 18.0 ft (5.500 m) |
| Wheelbase (MWB) | 56.1 in (1.431 m) |
| Wheelbase (LWB) | 60.6 in (1.539 m) |
| Load Distance (Center of Drive Axle to Fork) | 12.8 in (326 mm) |
Weight 4 specs
| Operating Weight (MWB) | 7,080 lb (3,210 kg) |
|---|---|
| Operating Weight (LWB) | 7,079 lb (3,209 kg) |
| Battery Weight (MWB) | 2,346 lb (1,064 kg) |
| Battery Weight (LWB) | 2,121 lb (962 kg) |
Power / Engine 5 specs
| Electric (battery) – Seated | 1.6 |
|---|---|
| Battery according to DIN | 43531/35/36 A, B, C, no |
| Voltage | 48 V |
| Traction Motor | 2x 6.7 hp (2x 5.0 kW) |
| Hoist Motor | 16.1 hp (12 kW) |
Hydraulics / Fluids 2 specs
| Hydraulic Oil Tank Capacity | 5.0 gal (19 L) |
|---|---|
| Sound Pressure Level at Driver Seat | 69 dB (A) |
