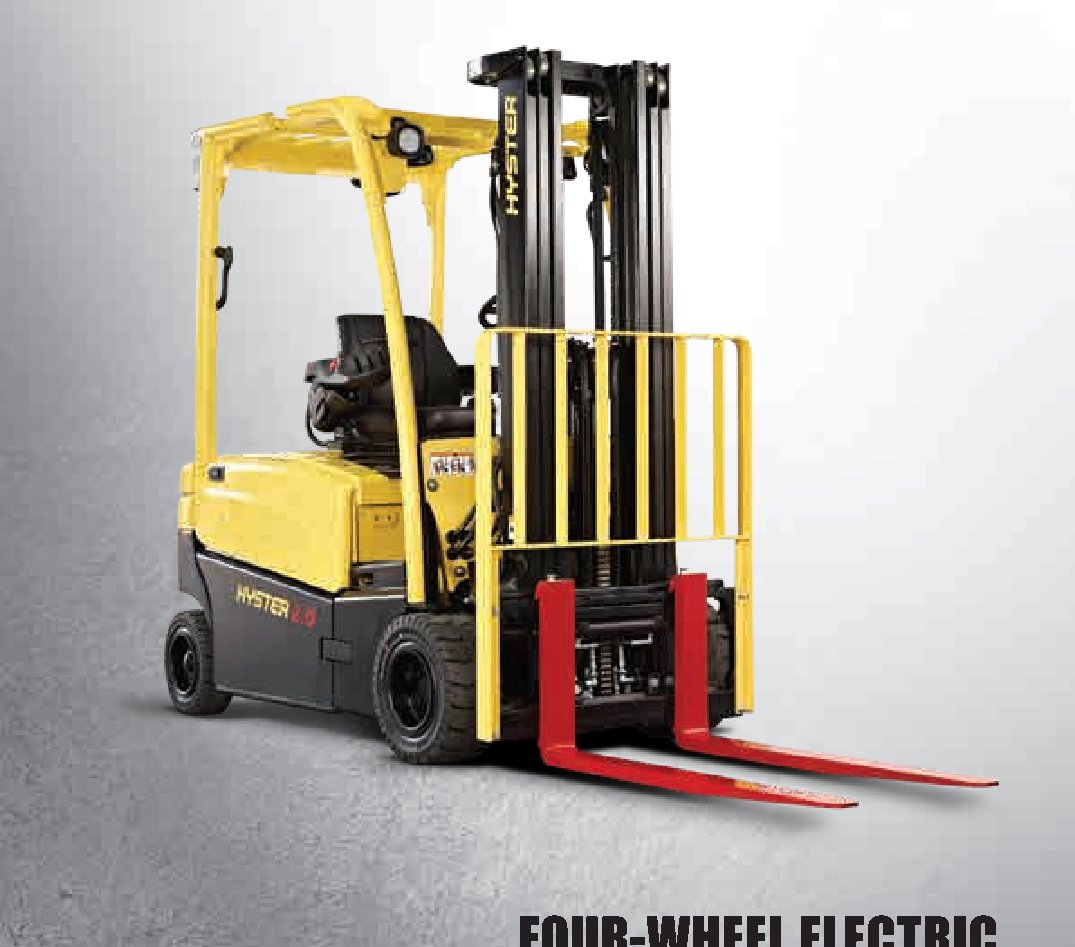

Hyster J2.0XN Specs
Quick-reference specifications for the Hyster J2.0XN forklift, from the manufacturer’s spec sheet and published specifications.
Performance 6 specs
| Load Capacity | 4,409 lb (2,000 kg) |
|---|---|
| Load Centre | 19.69 in (500 mm) |
| Travel Speed (laden/unladen) | 9.94 mph (16 km/h) |
| Hoisting Speed (laden/unladen) | 0.4/0.58 m/s |
| Lowering Speed (with load) | 0.46 m/s |
| Turning Radius | 5.78 ft (1.762 m) |
Dimensions 6 specs
| Total Width | 45.12 in (1,146 mm) |
|---|---|
| Construction Height (mast lowered) | 81.5 in (2,070 mm) |
| Lifting Height | 14.22 ft (4.335 m) |
| Free Lift | 1,506 mm |
| Fork Length | 1,000-1,200 mm |
| Fork Dimensions | 100 x 40 mm |
Weight 2 specs
| Net Weight | 7,253 lb (3.29 t) |
|---|---|
| Battery Weight | 2,346 lb (1.064 t) |
Power / Engine 5 specs
| Electric (battery) – Seated | 1.6 |
|---|---|
| Battery according to DIN | 43531/35/36 A, B, C, no |
| Voltage | 48 V |
| Traction Motor | 10 kW (2×5 kW) |
| Hoist Motor | 12 kW |
