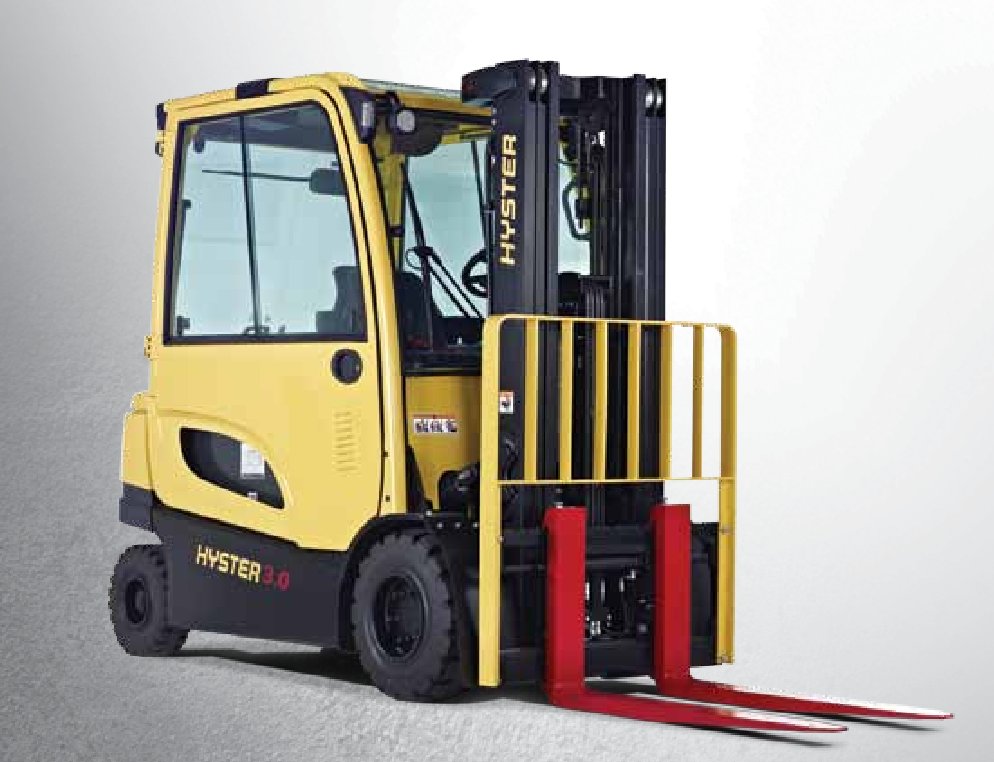

Hyster J2.5XN Specs
Quick-reference specifications for the Hyster J2.5XN forklift, taken from the manufacturer’s spec sheet.
- Rated capacity / Rated load Q
- 2500 kg
- Gradeability laden / unladen, 30 minute rating
- 9 / 13 %
Performance 14 specs
| Rated capacity / Rated load Q | 2500 kg |
|---|---|
| Tyres | SE |
| Travel speed, laden / unladen | 18.0 / 18.0 km/h |
| Lift speed, laden / unladen | 0.38 / 0.63 m/sec |
| Lowering speed, laden / unladen | 0.57 / 0.51 m/sec |
| Drawbar pull, laden / unladen, 60 minute rating | 5591 / 5726 N |
| Maximum drawbar pull laden / unladen, 5 minute rating | 18451 / 18897 N |
| Gradeability laden / unladen, 30 minute rating | 9 / 13 % |
| Maximum gradeability laden / unladen | 24 / 35 % |
| Service brake | Hydraulic |
| Sound pressure level at the driver’s seat | 67 dB (A) |
| Tilt of mast/fork carriage forward/backward a / b | 5 / 5 ° |
| Turning radius Wa | 1931 mm |
| Internal turning radius b | 173 mm |
Dimensions 25 specs
| Load centre distance c | 500 mm |
|---|---|
| Load distance, centre of drive axle to fork x | 419 mm |
| Wheelbase y | 1606 mm |
| Tyre size, front | 23 x 10 – 12 |
| Tyre size, rear | 18 x 7 – 8 |
| Height, mast lowered h | 2192 mm |
| Free lift h | 100 mm |
| Lift h | 3350 mm |
| Height, mast extended h | 3960 mm |
| Height of overhead guard (cabin) h | 2193 mm |
| Cab height (open cab) | 2206 mm |
| Seat height relating to SIP/stand height h | 1070 mm |
| Coupling height h | 262 mm |
| Overall length l | 3336 mm |
| Length to face of forks l | 2336 mm |
| Overall width b1/b | 1173 / 1289 mm |
| Fork dimensions DIN ISO 2331 s/e/l | 40 / 100 / 1000 mm |
| Fork carriage ISO 2328, class/type A, B | 2A |
| Fork carriage width b | 1067 mm |
| Ground clearance, laden, below mast m | 83 mm |
| Ground clearance, centre of wheelbase m | 137 mm |
| Aisle width for pallets 1000 × 1200 wide Ast | 3613 mm |
| Aisle width for pallets 800 × 1200 long Ast | 3766 mm |
| Step Height (from ground to running board) | 706 / 810 mm |
| Step Height | 475 mm |
Weight 3 specs
| Service weight | 4520 kg |
|---|---|
| Axle loading, laden front/rear | 6211 / 805 kg |
| Axle loading, unladen front/rear | 2279 / 2236 kg |
Power / Engine 5 specs
| Drive motor rating S2 60 min | 2 x 10.0 kW |
|---|---|
| Lift motor rating at S3 15% | 16.0 kW |
| Battery voltage/nominal capacity K5 | 80 V / 560 Ah |
| Battery weight (min/max) | 1480 / 1635 kg |
| Drive control | AC electronic |
Hydraulics / Fluids 3 specs
| Operating pressure for attachments | 155 bar |
|---|---|
| Oil volume for attachments | 20-40 l/min |
| Hydraulic oil tank, capacity | 29.3 l |
