Forklift · Hyster

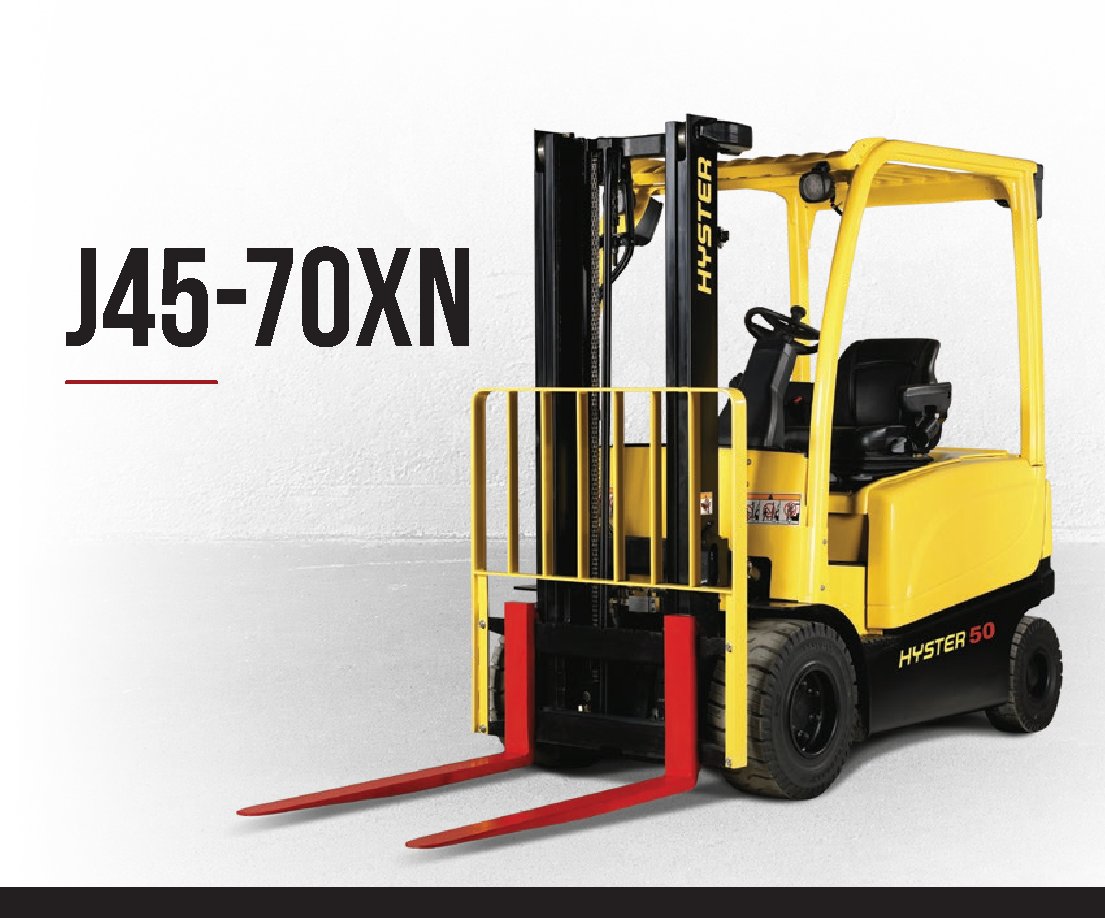

Hyster J60XN Specs
Quick-reference specifications for the Hyster J60XN forklift, from the manufacturer’s spec sheet and published specifications.
- Maximum Lift Height
- 126 in3.21 m
- Gradeability (Full Load, Standard)
- 22%
Performance 14 specs
| Lower speed | Std 2-stg LFL mast (NL/RL) |
|---|---|
| Load Capacity | 6,000 lb (2,722 kg) |
| Load Center | 24 in (610 mm) |
| Max Speed (Full Load) | 10.6 mph (17 kph) |
| Max Speed (PowerPlus) | 12.1 mph (19.5 kph) |
| Lift Speed (Standard, 2-stg LFL) | 65 ft/min (19.8 m/min) |
| Lift Speed (PowerPlus, 2-stg LFL) | 83 ft/min (25.3 m/min) |
| Lower Speed (Standard, 2-stg LFL) | 110 ft/min (33.5 m/min) |
| Gradeability (Full Load, Standard) | 22% |
| Gradeability (Full Load, PowerPlus) | 24% |
| Drawbar Pull | 4,146 lb (1,881 kg) |
| Turning Radius | 6.81 ft (2.07 m) |
| Mast Tip Forward | 5 degrees |
| Mast Tip Rear | 5 degrees |
Dimensions 11 specs
| Length to Fork Face | 97 in (2.46 m) |
|---|---|
| Overall Width (Standard) | 46.9 in (1.19 m) |
| Overall Width (Wide Tread) | 51.5 in (1.31 m) |
| Overall Height (Mast Lowered) | 87 in (2.21 m) |
| Overhead Guard Height | 86.3 in (2.19 m) |
| Wheelbase | 68.9 in (1.75 m) |
| Ground Clearance | 3.9 in (99 mm) |
| Right Angle Stack | 146.7 in (3.73 m) |
| Underclearance (Mast) | 3.9 in (99 mm) |
| ForkSize(TxWxL) | 2 x 5 x 42 in |
| Maximum Lift Height | 126 in (3.21 m) |
Weight 2 specs
| Total Weight (without battery) | 7,143 lb (3.24 t) |
|---|---|
| Battery Weight | 2.23 t |
Power / Engine 3 specs
| Operating Voltage | 80 volts |
|---|---|
| Drive Motor (Standard Performance) | 13.4 hp (20 kW) |
| Drive Motor (PowerPlus Performance) | 13.4 hp (20 kW) |
