- Hyster J50XN
Forklift · Hyster

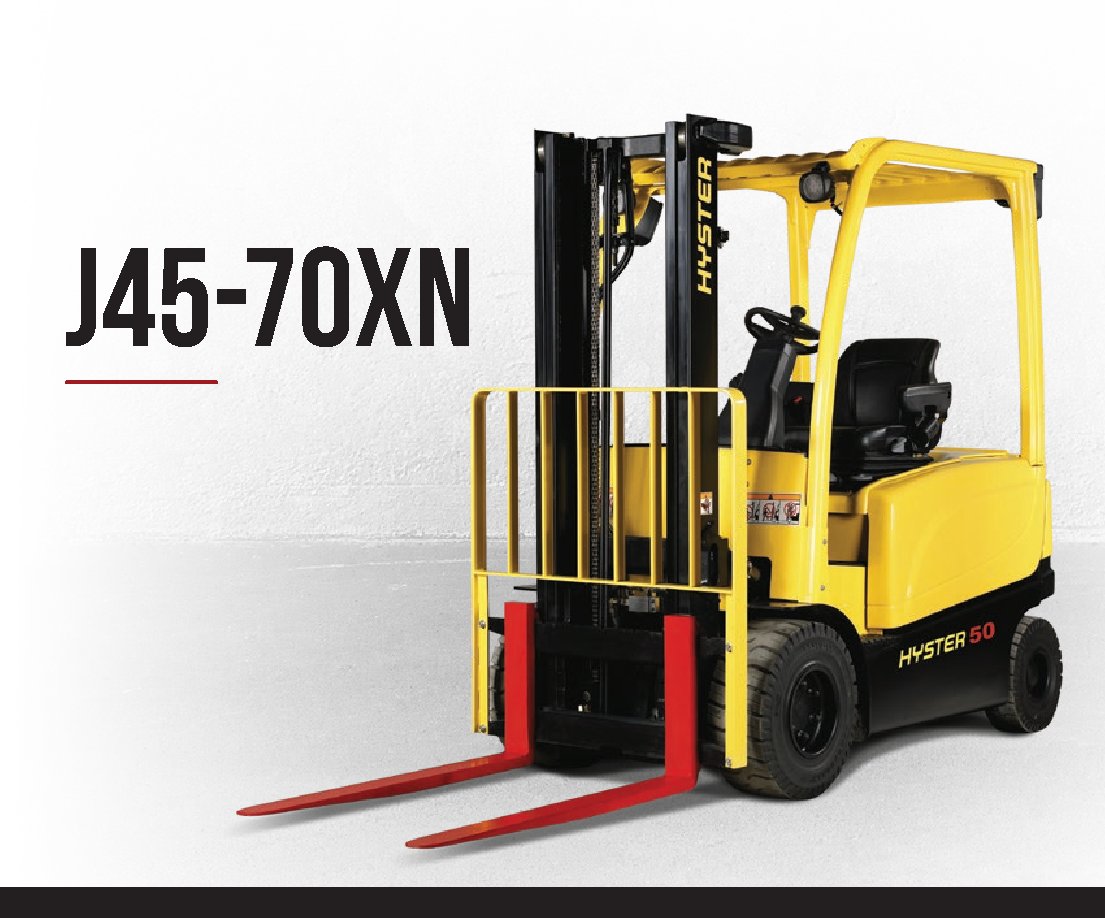

Hyster J50XN Specs
Quick-reference specifications for the Hyster J50XN forklift, taken from the manufacturer’s spec sheet.
- Rated capacity
- 5000 lb2268 kg
Performance 23 specs
| Rated capacity | 5000 lb (2268 kg) |
|---|---|
| Load center | 24 in (610 mm) |
| Tread Ctr. of tires Std dr/wide dr/steer | 36.9/41.5/39.1 in (938/1054/992 mm) |
| Mast tilt Std opt opt | 5F/5B 10F/5B 5F/6B degrees |
| Outside turning radius 28″ | 76 in (1931 mm) |
| Outside turning radius 34″ | 81.6 in (2073 mm) |
| Travel speed (NL/RL) Standard Performance | 11.2/11.2 mph (18/18 km/h) |
| Travel speed (NL/RL) PowerPlus Performance | 13/13 mph (21/21 km/h) |
| Lower speed Std 2-stg LFL mast (NL/RL) | 100/112 ft/min (0.51/0.57 m/sec) |
| Lower speed Opt 2-stg FFL mast (NL/RL) | 91/106 ft/min (0.46/0.54 m/sec) |
| Lower speed Opt 3-stg FFL mast (NL/RL) | 93/108 ft/min (0.47/0.55 m/sec) |
| Gradability 5 minute rating (NL/RL) Standard Performance | 35/24 % |
| Gradability 5 minute rating (NL/RL) PowerPlus Performance | 38/26 % |
| Gradability 60 minute rating (NL/RL) Standard Performance | 12/8 % |
| Gradability 60 minute rating (NL/RL) PowerPlus Performance | 13/9 % |
| Drawbar pull 5 minute rating (NL/RL) Standard Performance | 4248/4148 LBF |
| Drawbar pull 5 minute rating (NL/RL) PowerPlus Performance | 4588/4480 LBF |
| Drawbar pull 60 minute rating (NL/RL) Standard Performance | 1287/1257 LBF |
| Drawbar pull 60 minute rating (NL/RL) PowerPlus Performance | 1390/1357 LBF |
| Brake Method of control (service/parking) | Hydraulic/mechanical |
| Brake Method of operation (service/parking) | Foot/automatic |
| Sound level Measured per ANSI B56.11.5 Standard Performance | 63 dB (A) |
| Sound level Measured per ANSI B56.11.5 PowerPlus Performance | 65 dB (A) |
Dimensions 18 specs
| Tire type (std/opt) | Pneumatic/pneumatic shaped solid |
|---|---|
| Tire size (drive/steer) | 23 x 10 – 12/18 x 7 – 8 in |
| Mast – lowered height Std mast | 87 in (2192 mm) |
| Mast – extended height Std mast with/without LBR | 182/156 in (4622/3956 mm) |
| Tow pin height Vertical center of pin | 10.3 in (262 mm) |
| Overall width Pneumatic tires Std/wide tread | 46.9/51.5 in (1192/1308 mm) |
| Overall width PSS tires Std/wide tread | 46.2/50.7 in (1173/1289 mm) |
| Forks Thickness x width x length | 1.6 x 3.9 x 42 in (40 x 100 x 1067 mm) |
| Ground clearance Lowest point (NL/RL) | 3.9/3.3 in (98/83 mm) |
| Ground clearance Center of truck (NL/RL) | 5.4/5.3 in (137/134 mm) |
| Load distance Center of wheel to face of forks | 15.9 in (404 mm) |
| Length to face of forks Chassis length 28″ | 91.4 in (2321 mm) |
| Length to face of forks Chassis length 34″ | 97 in (2465 mm) |
| Wheelbase 28″ | 63.2 in (1606 mm) |
| Wheelbase 34″ | 68.9 in (1750 mm) |
| Right angle stack 28″ | 141.3 in (3588 mm) |
| Right angle stack 34″ | 146.7 in (3727 mm) |
| Step height | 18.7 in (475 mm) |
Power / Engine 7 specs
| Power/voltage | Electric/80 Volts |
|---|---|
| Overhead guard height Without/with battery rollers | 86.3/90.4 in (2193/2297 mm) |
| Floor to bottom of battery (vertical/roller/forks) | 5.7/10.2/9.9 in (145/259/252 mm) |
| Truck weight Without battery (NL) 28″ | 6673 lb (3027 kg) |
| Truck weight Without battery (NL) 34″ | 7092 lb (3217 kg) |
| Traction motors Type/control method | Dual AC/transistor |
| Floor height Without/with battery rollers | 27.8/31.9 in (706/810 mm) |
Hydraulics / Fluids 5 specs
| Pump motor 15 minute rating Standard Performance | 21.5 hp (16 kW) |
|---|---|
| Pump motor 15 minute rating PowerPlus Performance | 32.2 hp (24 kW) |
| Pump motor Type/control method | AC/transistor |
| Attachment relief pressure | 2250 psi (155 bar) |
| Auxiliary oil flow 3rd and 4th function | 11 gal/min (40 l/min) |
