Forklift · Hyster

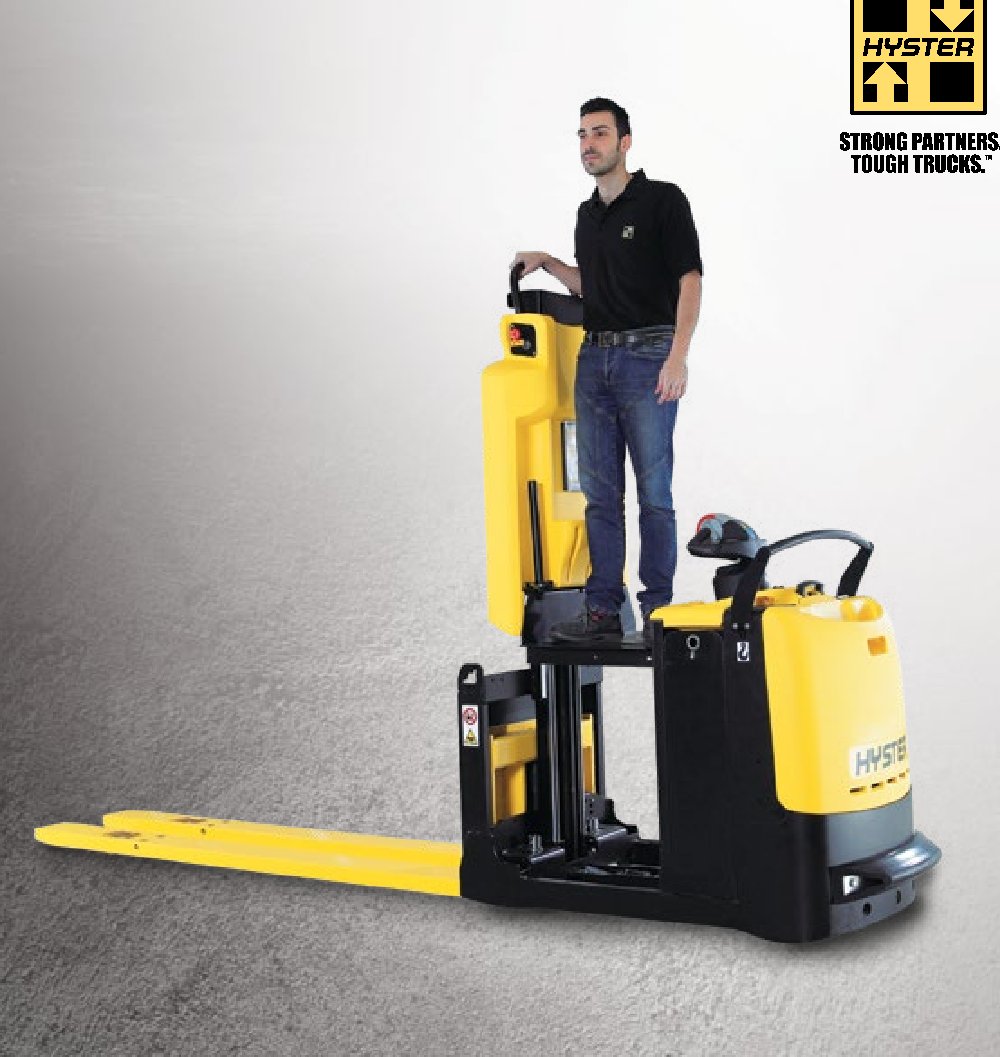

Hyster LO2.5 Specs
Quick-reference specifications for the Hyster LO2.5 forklift, taken from the manufacturer’s spec sheet.
- Rated Capacity
- 5500 lb2500 kg
- Gradeability – NL/RL – 5 Minute Rating
- 20 / 6 %
Performance 8 specs
| Rated Capacity | 5500 lb (2500 kg) |
|---|---|
| Outside Turning Radius | 87.4 in / 108.1 in (990 mm / 1747 mm) |
| Travel Speed – NL/RL | 6.5 / 5.3 mph (10.5 / 8.5 km/h) |
| Lift Speed – NL/RL – Forks | 8 / 5 ft/min (0.039 / 0.023 m/sec) |
| Lower Speed – NL/RL – Cab | 32 / 32 ft/min (0.162 / 0.162 m/sec) |
| Gradeability – NL/RL – 5 Minute Rating | 20 / 6 % |
| Gradeability – NL/RL – 60 Minute Rating | 20 / 10 % |
| Brake – Service / Parking | Electromagnetic |
Dimensions 11 specs
| Overall Width | 31.3 in (796 mm) |
|---|---|
| Fork Length | 46.5 in / 94.9 in (1181 mm / 2411 mm) |
| Fork Overall Width | 26.4 in (670 mm) |
| Fork Width – Individual fork | 7.2 in (184 mm) |
| Wheelbase | 79.3 in / 100.1 in (2015 mm / 2543 mm) |
| Overall Length | 101.9 in / 150.4 in (990 mm / 3819 mm) |
| Ground Clearance – Center of Wheelbase | 1 in (25 mm) |
| Step Height | 6 in (152 mm) |
| Platform Elevated Height | 38.6 in (980 mm) |
| Tire Type – Drive / Steer | Vulkollan / Polyurethane |
| Tire Size – Drive / Steer – Std | 10 x 3.5 / 10 x 3.5 in |
Power / Engine 5 specs
| Battery Compartment – Height / Standard Batt. Rollers | 31.2 x 14.1 x 32 in (792 x 357 x 814 mm) |
|---|---|
| Floor to Top of Battery Rollers – Side Extraction | 5.6 in (141 mm) |
| Truck Weight – NL Without Battery | 2888 lb (1310 kg) |
| Battery – Type | Lead Acid |
| Traction Motor – Type / Control Method | AC / Mosfet |
Hydraulics / Fluids 1 spec
| Pump Motor – 15 Minute Rating | 2.7 hp (2 kW) |
|---|
