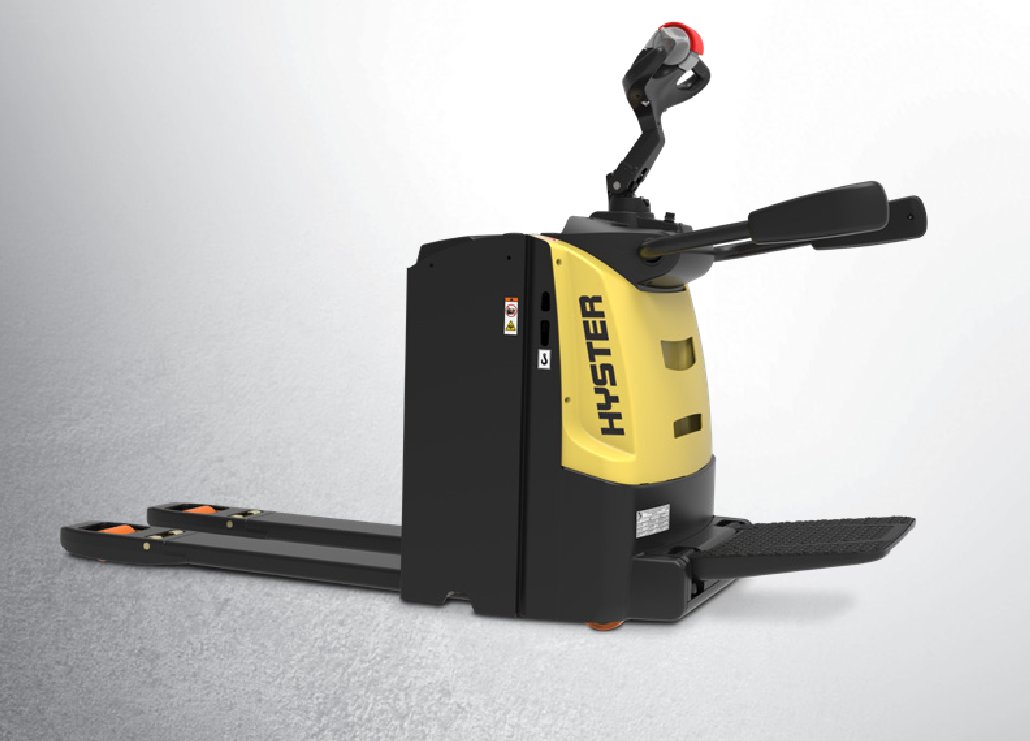

Hyster P2.0S FBW Specs
Quick-reference specifications for the Hyster P2.0S FBW forklift, from the manufacturer’s spec sheet and published specifications.
- Operating Weight
- 2,094 lb950 kg
Performance 8 specs
| Load distance, centre of drive axle to fork | x |
|---|---|
| Nominal Load Capacity | 4,409 lb (2,000 kg) |
| Travel Speed (with load) | 4 km/h |
| Travel Speed (without load) | 4 km/h |
| Hoisting Speed (with load) | 0.03 m/s |
| Hoisting Speed (without load) | 0.03 m/s |
| Lowering Speed (with load) | 0.04 m/s |
| Turning Radius | 7.18 ft (2.19 m) |
Dimensions 11 specs
| Tyre size, front | ø |
|---|---|
| Tyre size, rear | ø |
| Overall width | b1/ b |
| Ground clearance, centre of wheelbase | m2 |
| Transport Length | 63.08 ft (1.922 m) |
| Transport Width | 2.56 ft (0.78 m) |
| Transport Height | 4.76 ft (1.45 m) |
| Lifting Height | 5.12 in (0.13 m) |
| Wheelbase | 4.87 ft (1.485 m) |
| Fork Length | 46.46 in (1,180 mm) |
| Fork Width | 21.73-22.05 in (552-560 mm) |
Weight 2 specs
| Operating Weight | 2,094 lb (950 kg) |
|---|---|
| Battery Weight | 467 lb (212 kg) |
Power / Engine 3 specs
| Traction Motor | 4 kW |
|---|---|
| Hoist Motor | 1.4 kW |
| Battery Voltage/Capacity | 24 V/210 Ah |
Hydraulics / Fluids 1 spec
| Battery Type | 24 V Lead-acid |
|---|
