Telehandler · Ingersoll Rand

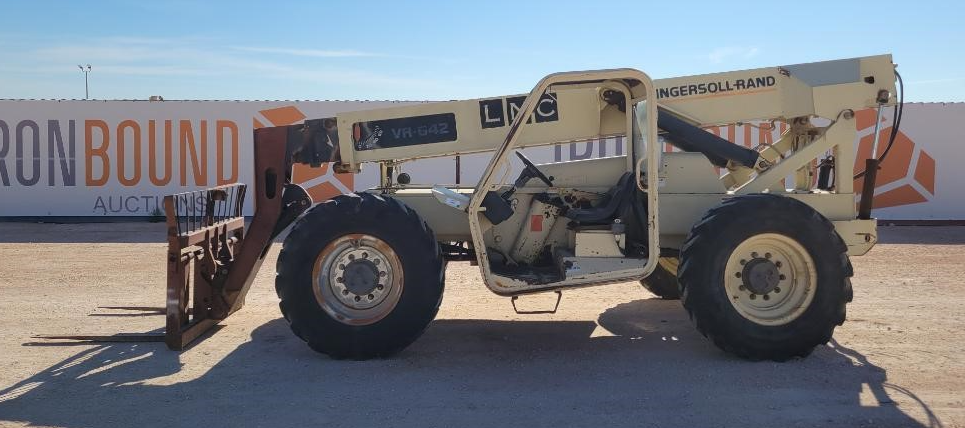

Ingersoll Rand VR-642 Specs
Quick-reference specifications for the Ingersoll Rand VR-642 telehandler, compiled from published specifications.
- Maximum Lift Capacity
- 6,700 lb3,039 kg
- Maximum Lift Height
- 42 ft12.8 m
- Maximum Forward Reach
- 26 ft 3 in8 m
- Operating Weight
- 19,600 lb8,892 kg
Performance 5 specs
| Maximum Lift Height | 42 ft (12.8 m) |
|---|---|
| Maximum Forward Reach | 26 ft 3 in (8 m) |
| Maximum Lift Capacity | 6,700 lb (3,039 kg) |
| Lift Capacity at Maximum Height | 6,000 lb (2,722 kg) |
| Lift Capacity at Maximum Reach | 1,000 lb (454 kg) |
Dimensions 6 specs
| Length (stowed, without forks) | 20 ft 3 in (6.17 m) |
|---|---|
| Width | 8 ft 6 in (2.59 m) |
| Height (stowed) | 7 ft 11 in (2.41 m) |
| Wheelbase | 10 ft (3.05 m) |
| Turning Radius Outside Tires | 11 ft 11 in (3.63 m) |
| Fork Dimensions | 48 x 2.75 x 4 in |
Weight 1 spec
| Operating Weight | 19,600 lb (8,892 kg) |
|---|
Power / Engine 3 specs
| Engine Model | QSB4.5-30T |
|---|---|
| Fuel Tank Capacity | 35 gal (132 L) |
| Transmission | 3-speed powershift |
Hydraulics / Fluids 1 spec
| Hydraulic System Capacity (with tank) | 40 gal (151 L) |
|---|
