Telehandler · Ingersoll Rand

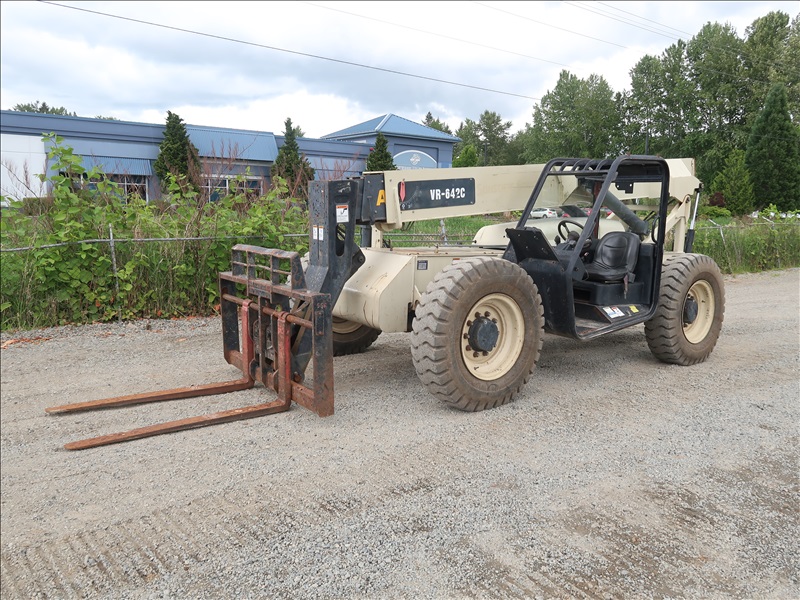

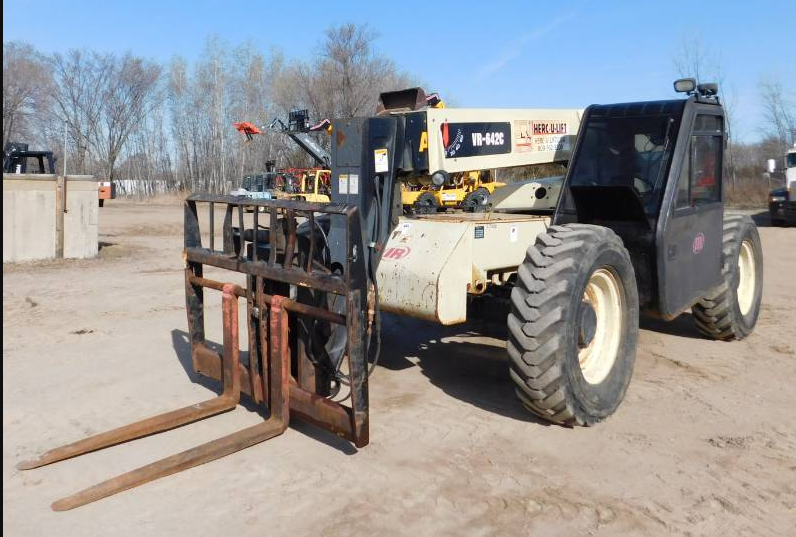

Ingersoll Rand VR-642C Specs
Quick-reference specifications for the Ingersoll Rand VR-642C telehandler, taken from the manufacturer’s spec sheet.
- Rated Lift Capacity
- 6,700 lb
- Capacity @ Max Height
- 6,000 lb2727 kg
- Maximum Lift Height
- 42 ft
Performance 16 specs
| Max Forward Reach | 26 ft 4 in (8026 mm) |
|---|---|
| Max Reach @ Max Lift Height | 3 ft 0 in (914 mm) |
| Max Reach @ Practical Placement Height | 6 ft 3 in (1905 mm) |
| Max Reach Below Grade w/ Standard Carriage | 2 ft 5 in (737 mm) |
| Turning Radius – To Outside of Tires | 11 ft 11 in (3632 mm) |
| Turning Radius – To Inside of Tires | 6 ft 5 in (1956 mm) |
| Capacity @ Max Height | 6,000 lb (2727 kg) |
| Capacity @ Max Reach | 1,000 lb (454 kg) |
| Rated Lift Capacity | 6,700 lb |
| Boom Type | 3-stage |
| Telescope Extend Speed | 15.6 seconds |
| Telescope Retract Speed | 13.9 seconds |
| Boom Raise | 10.6 seconds |
| Boom Lower | 8.9 seconds |
| Carriage Rotation | 113° |
| Drive | All-wheel drive |
Dimensions 12 specs
| Overall Length (less forks) | 20 ft 3 in (6172 mm) |
|---|---|
| Overall Width | 8 ft 6 in (2591 mm) |
| Overall Height | 7 ft 11 in (2413 mm) |
| Wheelbase | 10 ft 0 in (3048 mm) |
| Drive Axle to Carriage Front | 4 ft 10 in (1473 mm) |
| Ground Clearance | 1 ft 4 in (406 mm) |
| Tread Width | 7 ft 3 in (2210 mm) |
| Boom Extension | 23 ft 6 in (7163 mm) |
| Max Lift Height | 42 ft 0 in (12802 mm) |
| Practical Placement Height | 40 ft 1 in (12217 mm) |
| Maximum Lift Height | 42 ft |
| Max Boom Angle | 70° |
Weight 1 spec
| Shipping Weight | 19,750 lb (8977 kg) |
|---|
Power / Engine 4 specs
| Make / Model | Cummins QSB4.5-30T |
|---|---|
| Fuel / Cooling | Diesel / liquid |
| SAE net hp | 110 hp (82.1 kW) |
| Transmission | 3-speed powershift with soft shift |
Hydraulics / Fluids 1 spec
| Fuel Tank Capacity | 35 gal (132 L) |
|---|
