Telehandler · Ingersoll Rand

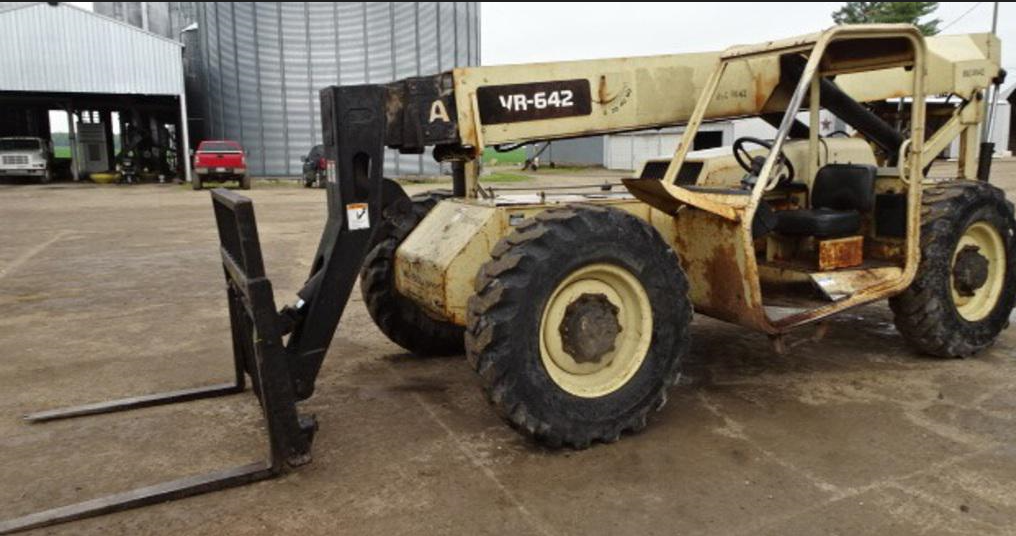

Ingersoll Rand VR- 642D Specs
Quick-reference specifications for the Ingersoll Rand VR- 642D telehandler, compiled from published specifications.
- Maximum Lift Capacity
- 6,700 lb3,039 kg
- Maximum Lift Height
- 42 ft12.8 m
- Maximum Forward Reach
- 26.4 ft8.05 m
Performance 5 specs
| Maximum Lift Capacity | 6,700 lb (3,039 kg) |
|---|---|
| Maximum Lift Height | 42 ft (12.8 m) |
| Maximum Forward Reach | 26.4 ft (8.05 m) |
| Ground Clearance | 16 in (41 cm) |
| Frame Leveling | 12° left and right of center |
Power / Engine 5 specs
| Engine Model | QSB3.3 turbo diesel |
|---|---|
| Horsepower | 110 hp |
| Fuel Tank Capacity | 35 gallons (132 L) |
| Transmission | Dana three-speed T12000 powershift |
| Drive Type | 4-wheel drive |
Hydraulics / Fluids 1 spec
| Hydraulic Tank Capacity | 40 gallons (151 L) |
|---|
