Telehandler · Ingersoll Rand

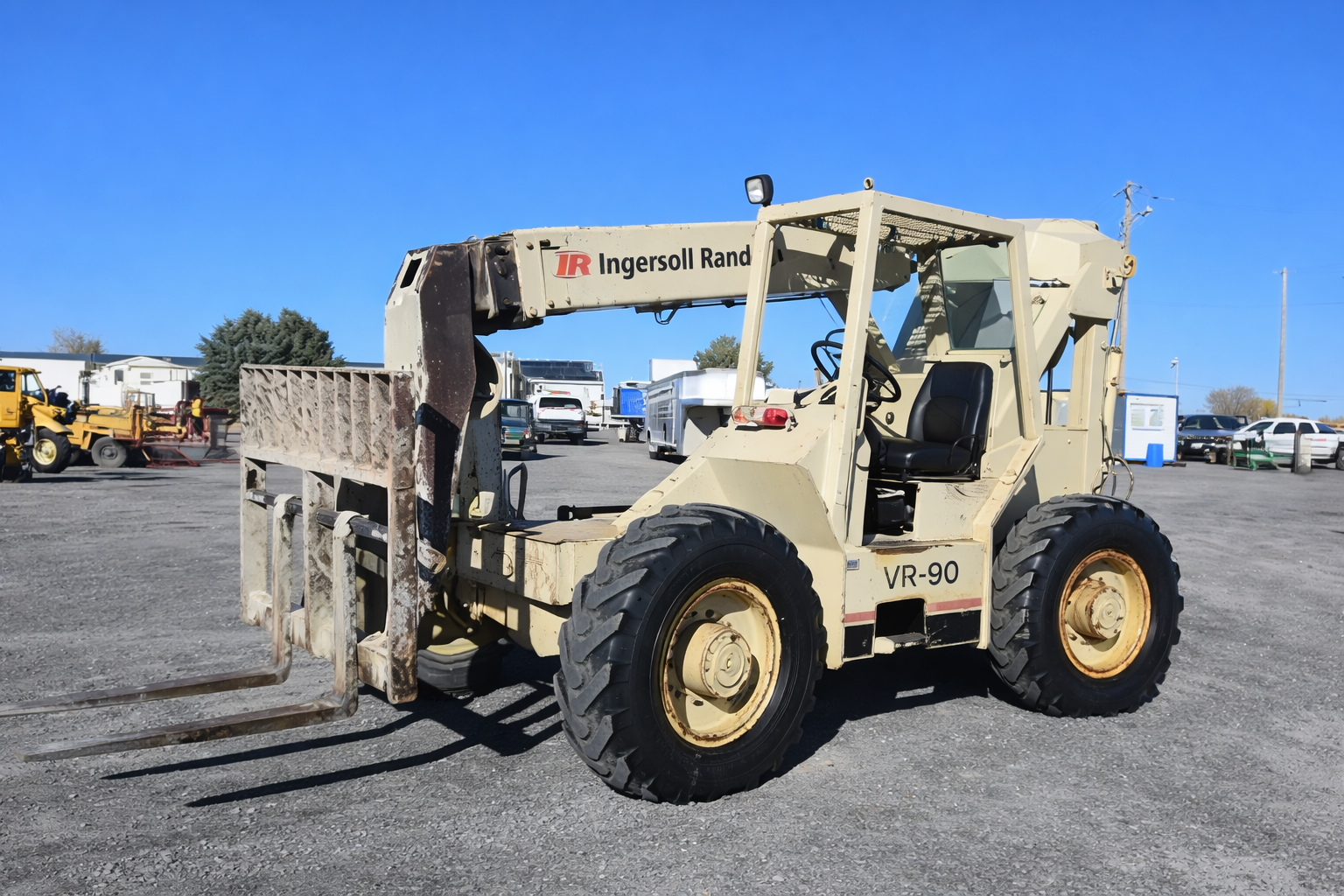

Ingersoll Rand VR-90 Specs

Quick-reference specifications for the Ingersoll Rand VR-90 telehandler, compiled from published specifications.

Max Lift Capacity: 8,999 lb4,082 kg
Operating Weight: 22,600 lb10,251 kg

Performance 6 specs

Max Lift Capacity	8,999 lb (4,082 kg)
Max Forward Reach	22 ft (7 m)
Max Lift Height	31 ft (9 m)
Max Speed – Reverse	16 mph (26 kph)
Number of Forward Gears	3
Number of Reverse Gears	3

Dimensions 7 specs

Length	20 ft 4 in (6.2 m)
Width	8 ft 0 in (2.4 m)
Height	9 ft 5 in (2.9 m)
Wheelbase	9 ft (2.7 m)
Ground Clearance	17 in (43 cm)
Length to Fork Face	16 ft (4.9 m)
Turning Radius – Inside	8 ft (2.4 m)

Weight 1 spec

Operating Weight	22,600 lb (10,251 kg)

Power / Engine 7 specs

Engine Model	1004-4T
Number of Cylinders	4
Displacement	284 cu in (4,654 cu cm)
Gross Power	108 hp (81 kW)
Power Measured @	2400 rpm
Max Torque	284 lb ft (385 Nm)
Fuel Capacity	36 gal (136 L)

Hydraulics / Fluids 9 specs

Hydraulic System Fluid Capacity	26 gal (98 L)
Pump Flow Capacity	29 gpm (110 L/min)
Relief Valve Pressure	2650 psi
Cooling System Fluid Capacity	5 gal (20 L)
Transmission Type	3-speed Powershift with inching
Transmission Fluid Capacity	4.6 gal
Operating Voltage	12 V
Alternator Supplied Amperage	65 amps
Tire Size	13.00 x 24 12 ply
