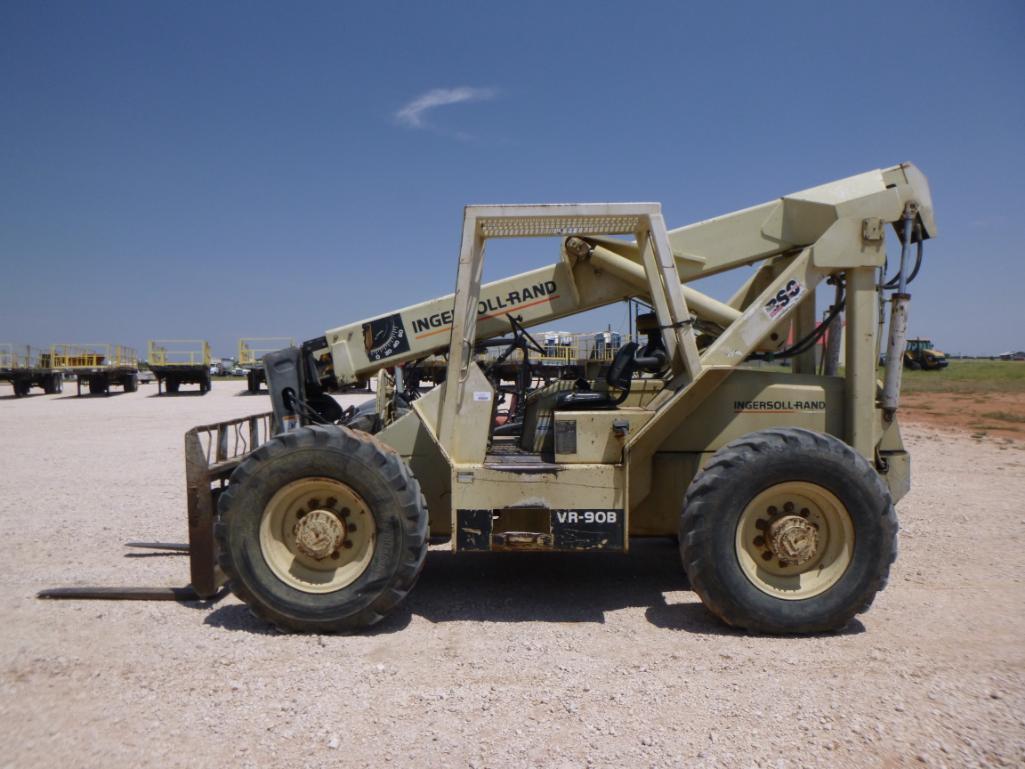

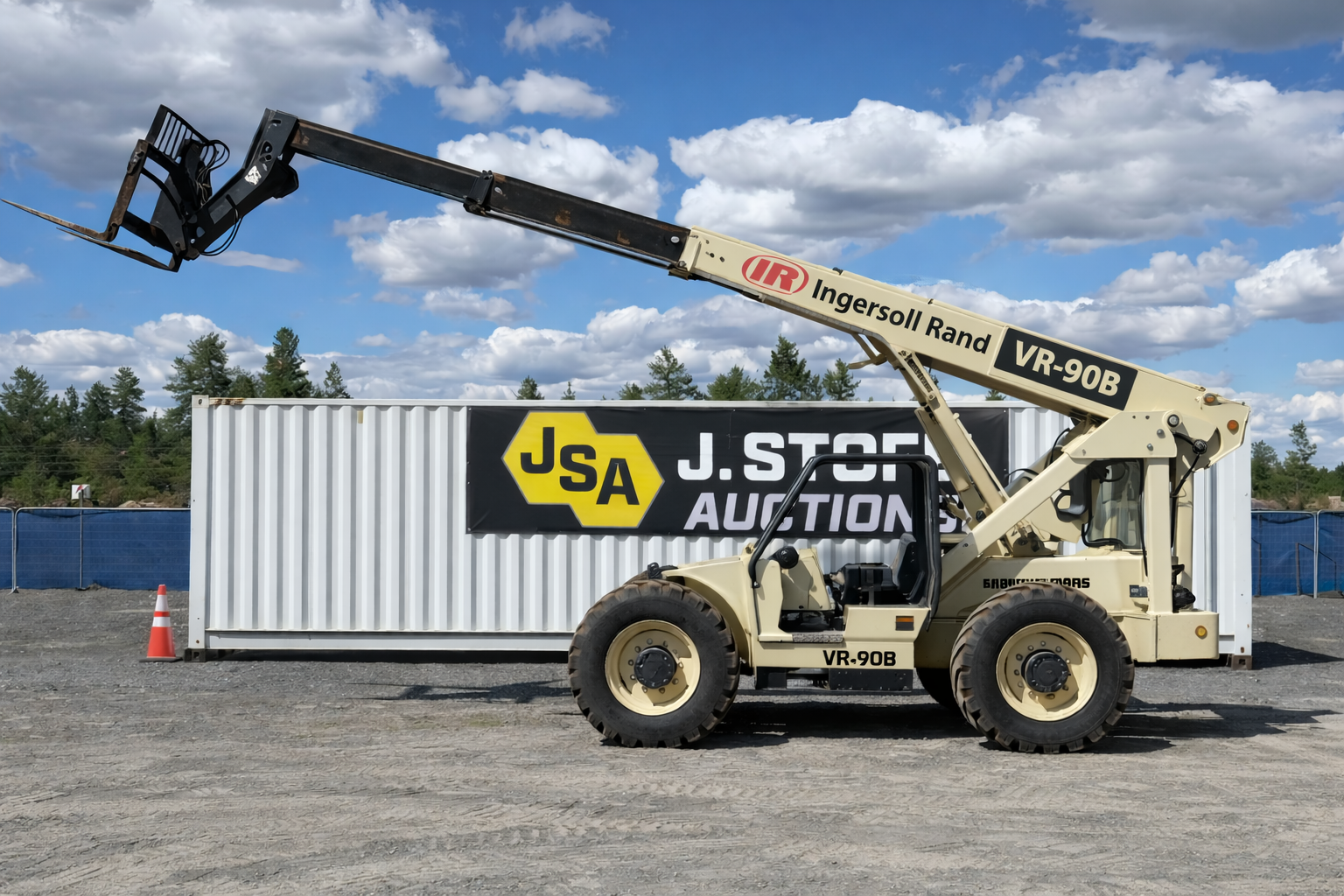

Ingersoll Rand VR-90B Spec Sheet
Quick-reference specifications for the Ingersoll Rand VR-90B. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Carriages Rated capacity chart for: 24″ load center
Max. lift height: 37′
Max. lift capacity: 9000 lbs.
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Max. lift capacity | 9000 lbs. |
|---|---|
| Max. lift height | 37′ |
| Carriages Rated capacity chart for | 24″ load center |
Dimensions
| Tread width | 83.0″ |
|---|
Weights & Electrical
| Negative ground | 12 volts |
|---|---|
| Alternator | 65 amps |
| Battery | 1000 amps |
| Backup alarm | 102 dBA audible |
| Shipping weight | 22,350 lbs. |
| Note | Capacities are to ASME B56.6-92. |
| Retract speed | 8.9 sec. |
| Back | 28° |
| Standard | 60″ with load backrest |
| Option | 48″ with load backrest |
| Option | 72″ with load backrest |
| Max. vert. reach below grade | 4′ 11″ |
| with truck on level, stable surface. Tire inflation to be | 65 PSI. |
Powertrain & Systems
| Horse power | 108 @ 2400 rpm |
|---|---|
| Type | 3-speed Powershift with inching |
| Transmission | 28 qt. |
| Drive axle | 15.2 qt. |
| Ingersoll-Rand Company | 312 Ingersoll Drive |
Hydraulics & Capacities
| Cooling | 24 qt. |
|---|---|
| Crankcase | 9 qt. |
| Fuel tank | 36 gal. |
| Hydraulic system | 26 gal. |
| Pump, variable displacement piston | 29 gpm @ 2650 psi |
