Equipment Spec Sheet

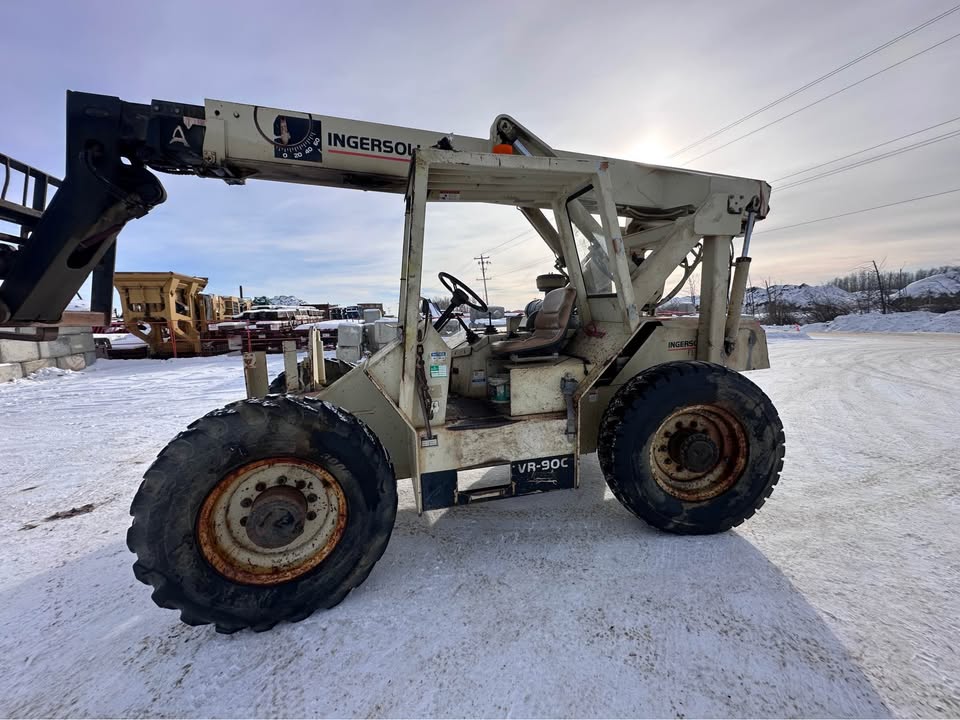

Ingersoll Rand VR-90C Spec Sheet
Quick-reference specifications for the Ingersoll Rand VR-90C. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Max Forward Reach: 25′ 3″
Overall Width: 97.5 in.
Operating Weight: 23,795 lb.
Max Lift Capacity: 9000 lb.
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| An outside turning radius of 179 inches and 3 selectable steering modes | 2-wheel, |
|---|---|
| Max Lift Capacity | 9000 lb. |
| Max Forward Reach | 25′ 3″ |
| Outside turning radius | 179 in. |
| Travel Speed | 15.9 mph |
Dimensions
| Max Height | 40′ 2″ |
|---|---|
| Overall Length (less forks) | 215.3 in. |
| Overall Width | 97.5 in. |
| Overall Height (min.) | 120 in. |
Weights & Electrical
| Operating Weight | 23,795 lb. |
|---|
Powertrain & Systems
| leveling. The full-time | 4-wheel drive is powered by the |
|---|---|
| Engine Perkins | 1004-4T |
| Drive Train | 4WD |
| Service Brakes | 4-Wheel enclosed wet disc |
| Tires 13.00 x | 24 PR |
| Ingersoll-Rand Company | 312 Ingersoll Drive |
