Telehandler · JCB

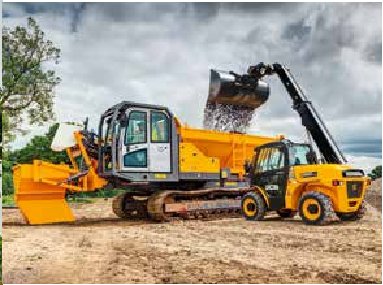

JCB 514-40 Specs
Quick-reference specifications for the JCB 514-40 telehandler, taken from the manufacturer’s spec sheet.
- Maximum lift capacity
- 1400 kg
- Maximum lift height
- 4035 mm
- Maximum forward reach
- 2510 mm
- Weight (operating weight)
- 2915 kg
Performance 5 specs
| Maximum lift capacity | 1400 kg |
|---|---|
| Lift capacity to full height | 1300 kg |
| Lift capacity at full reach | 525 kg |
| Reach at max. lift height | 890 mm |
| Maximum forward reach | 2510 mm |
Dimensions 13 specs
| Overall height | 1.80 m |
|---|---|
| Inside width of cab | 0.87 m |
| Width over tyres | 1.56 m |
| Front track | 1.29 m |
| Wheelbase | 1.88 m |
| Overall Length to front tyres | 2.61 m |
| Overall length to front carriage | 2.99 m |
| Ground clearance | 0.19 m |
| Outer turn radius over tyres | 2.81 m |
| Carriage roll back angle at ground | 12/30 degrees |
| Carriage dump angle at max height | 35 degrees |
| Tyres | turf 10×16.5 |
| Maximum lift height | 4035 mm |
Weight 3 specs
| Weight (operating weight) | 2915 kg |
|---|---|
| Weight (unladen with forks & frame) | 2840 kg |
| Weight (unladen, no attachment) | 2700 kg |
