Telehandler · JCB

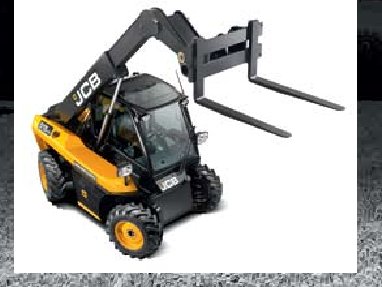

JCB 515-40 Specs
Quick-reference specifications for the JCB 515-40 telehandler, taken from the manufacturer’s spec sheet.
- Lift capacity at full height (Compact loadall quickhitch)
- 3307 lb1500 kg
- Reach at maximum lift height (Compact loadall quickhitch)
- 1-6460 mm
- Weight
- 7672 lb3480 kg
Performance 6 specs
| Lift capacity at full height (Compact loadall quickhitch) | 3307 lb (1500 kg) |
|---|---|
| Lift capacity at full reach (Compact loadall quickhitch) | 1653 lb (750 kg) |
| Reach at maximum lift height (Compact loadall quickhitch) | 1-6 (460 mm) |
| Maximum reach forward (Compact loadall quickhitch) | 8-4 (2535 mm) |
| Payload at 2m boom extension (Compact loadall quickhitch) | 2005 lb (1000 kg) |
| Maximum travel speed | 12.4 mph (20 kph) |
Dimensions 11 specs
| Overall height | 5-11 (1.8 m) |
|---|---|
| Overall width | 5-1 (1.56 m) |
| Interior width of cab | 2-10 (0.87 m) |
| Wheelbase | 5-9 (1.75 m) |
| Overall length to front of tyres | 9-2 (2.80 m) |
| Overall length to front of carriage | 10-7 (3.23 m) |
| Ground clearance | 0-10 (0.24 m) |
| Outer turn radius over tyres | 9-2 (2.8 m) |
| Tyres – traction | 255/75-15.3 |
| Maximum lift height (Compact loadall quickhitch) | 13-3 (4045 mm) |
| Interior noise | 85 Lpa |
Weight 1 spec
| Weight | 7672 lb (3480 kg) |
|---|
Power / Engine 6 specs
| Cylinders | 4 |
|---|---|
| Fuel | Diesel |
| Displacement | 2.3 ltr |
| Gross power @ 2800rpm ISO14396 | 50 hp (36.8 kW) |
| Gross torque @ 1800rpm ISO14396 | 107.68 lbf/ft (146 Nm) |
| Engine oil service intervals | 500 Hours |
Hydraulics / Fluids 5 specs
| Operating system pressure | 3336 psi (230 bar) |
|---|---|
| Cycle times – Boom raise | 7.3 seconds |
| Cycle times – Boom lower | 5.4 seconds |
| Cycle times – Extend | 5.8 seconds |
| Cycle times – Retract | 3.7 seconds |
