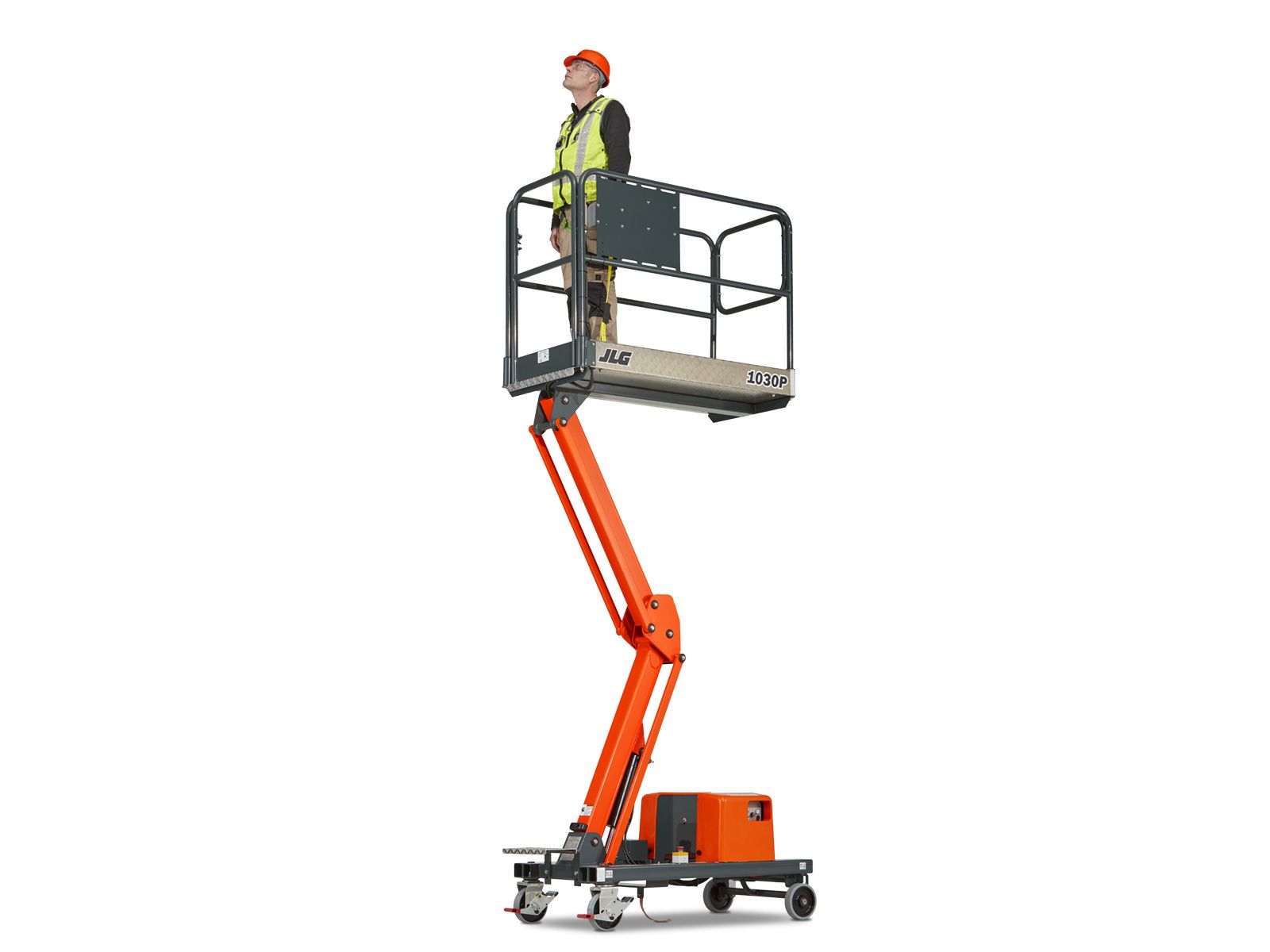

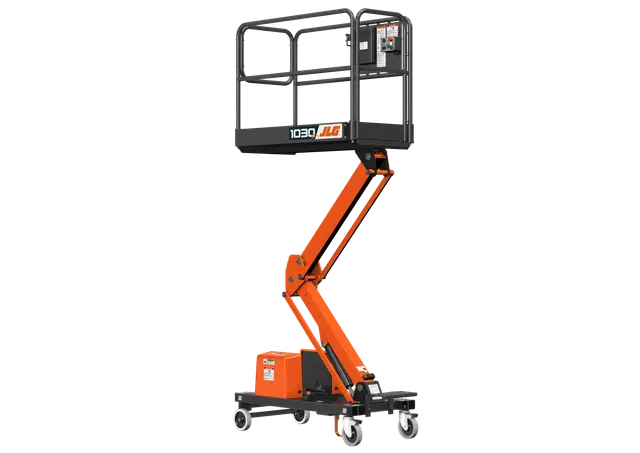

JLG 1030P Spec Sheet
Quick-reference specifications for the JLG 1030P. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Platform Capacity 550-lb /: 249-kg
Working Height 16-ft 2-in /: 5.11-m
Platform Height 10-ft 2-in /: 3.10-m
Overall Height 6-ft 1-in /: 1.85-m
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Platform Height 10-ft 2-in / | 3.10-m |
|---|---|
| Working Height 16-ft 2-in / | 5.11-m |
| Platform Capacity 550-lb / | 249-kg |
Dimensions
| Overall Height 6-ft 1-in / | 1.85-m |
|---|---|
| Platform Entry Height 29-in / | 74-cm |
| Platform Size (LxW) 60-in x 29.5-in / | 1.52-m x .75-m |
| Overall Machine Length 64-in / | 1.63-m |
| Overall Machine Width 31-in / | 0.79-m |
| A. Machine Height (stowed) 6-ft 1-in / | 1.85-m |
| B. Machine Width | 31-in / .79-m |
| C. Platform Width | 29.5-in / .75-m |
| D. Machine Length 64-in / | 1.63-m |
| E. Platform Length 60-in / | 1.52-m |
Weights & Electrical
| this machine ideal for sensitive floors | 1030P |
|---|---|
| Weight 805-lb / | 365-kg |
| Batteries | 12V AGM |
| Battery Charger Automatic | 110V-240V Charger |
Hydraulics & Capacities
| Max Ground Bearing Pressure | 174 psi |
|---|
