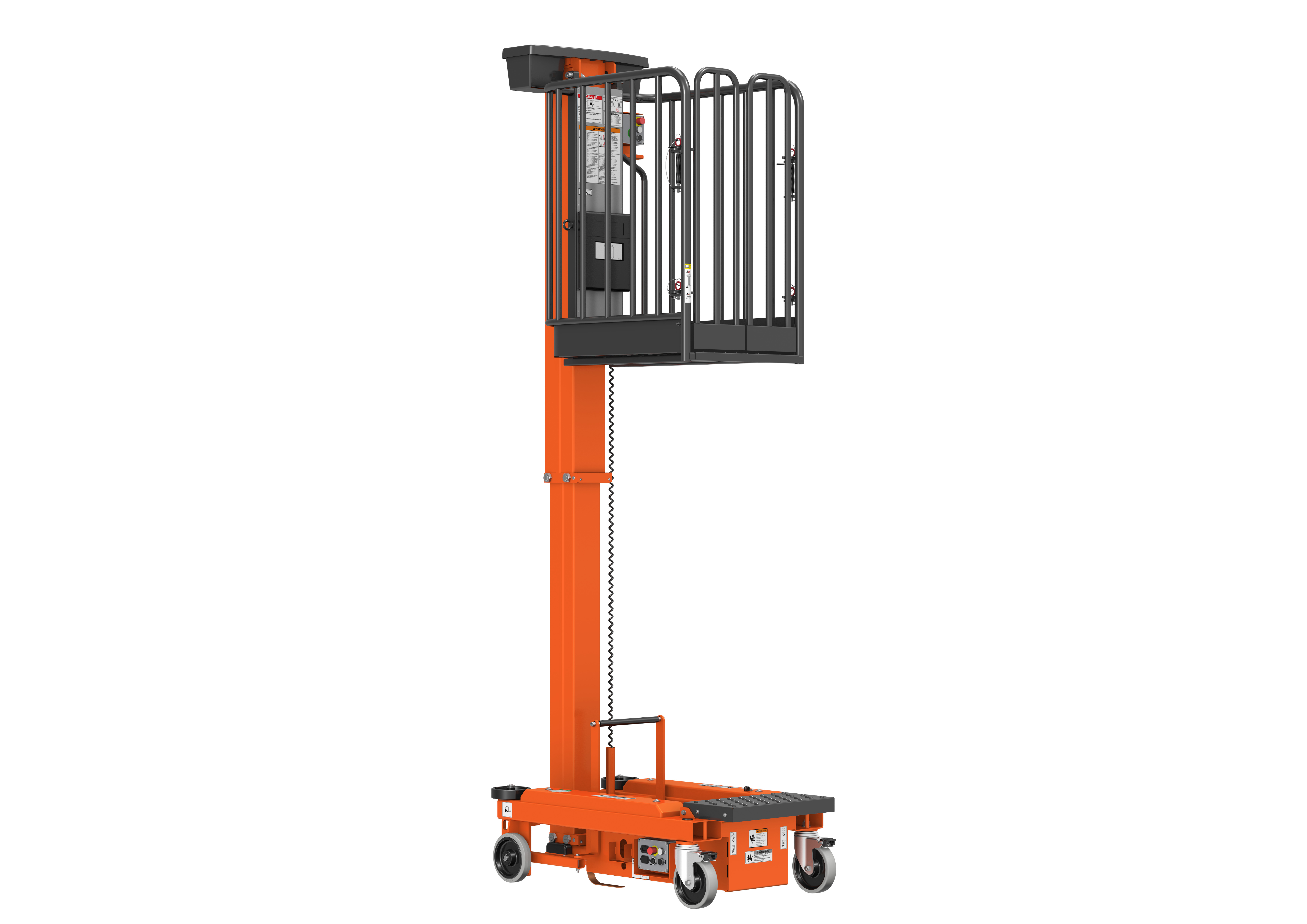

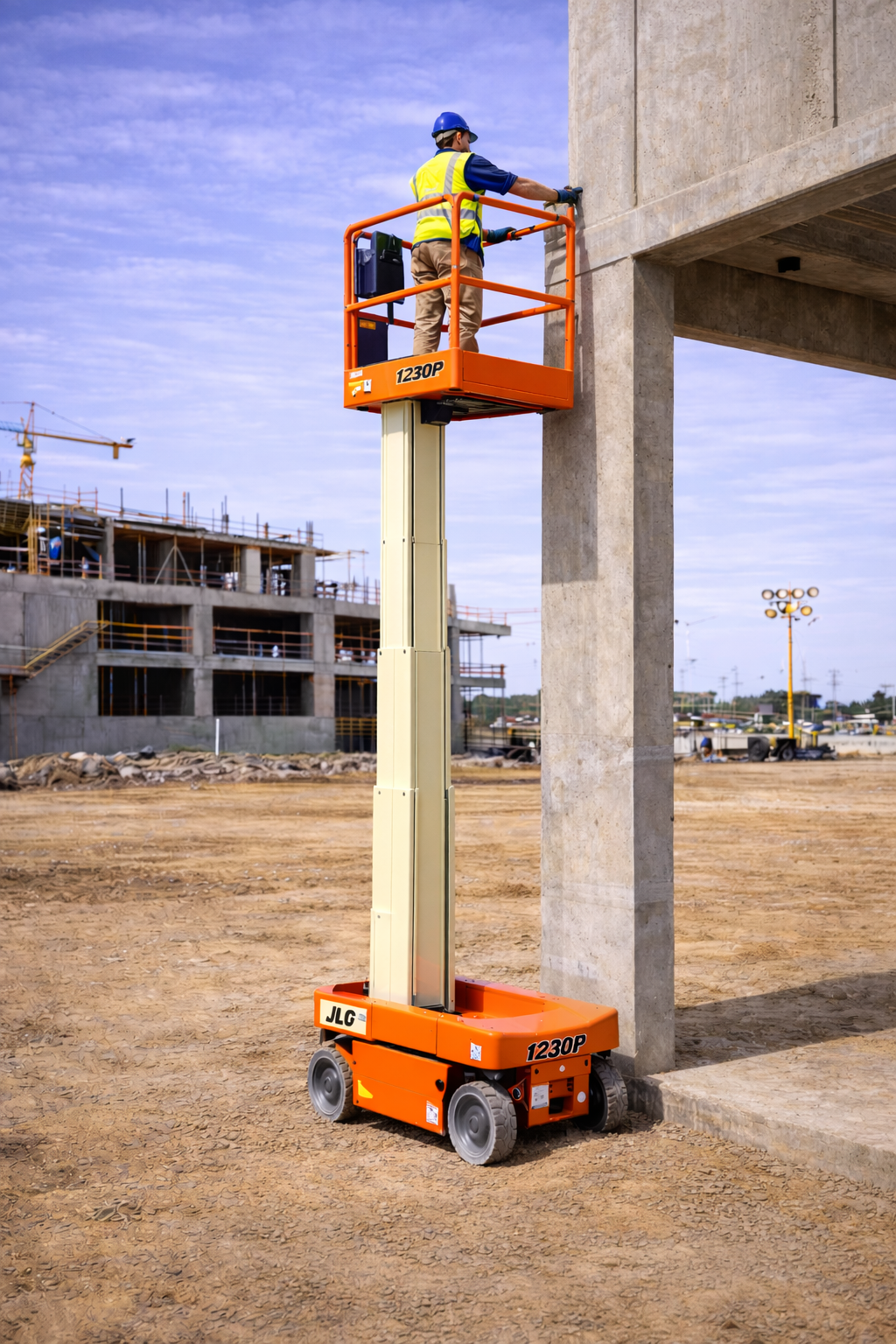

JLG 1230P Spec Sheet
Quick-reference specifications for the JLG 1230P. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Platform Capacity 440-lb /: 200-kg
Working Height 17-ft 4-in /: 5.50-m
Platform Height 11-ft 4-in /: 3.50-m
Overall Height 6-ft 5-in /: 1.95-m
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Platform Height 11-ft 4-in / | 3.50-m |
|---|---|
| Working Height 17-ft 4-in / | 5.50-m |
| Platform Capacity 440-lb / | 200-kg |
Dimensions
| Overall Height 6-ft 5-in / | 1.95-m |
|---|---|
| Platform Entry Height 15-in / | 39-cm |
| Platform Size (L X W) 33.5-in x | 28-in / .85-m x .72-m |
| Machine Length 47-in / | 1.19-m |
| Machine Width 30-in / | 0.76-m |
| A. Machine Height (stowed) 6-ft 5-in / | 1.95-m |
| B. Machine Width 30-in / | 0.76-m |
| C. Platform Width | 28-in / .72-m |
| D. Machine Length 47-in / | 1.19-m |
| E. Platform Length | 33.5-in / .85-m |
| F. Rail Height 43.8-in / | 1.11-m |
Weights & Electrical
| Weight 952-lb / | 432-kg |
|---|---|
| Batteries | 12V AGM |
| Battery Charger Automatic 110V, 12V DC, | 6A |
Hydraulics & Capacities
| Max Ground Bearing Pressure – Front | 173.33 psi |
|---|---|
| Max Ground Bearing Pressure – Rear | 488.76 psi |
