Equipment Spec Sheet

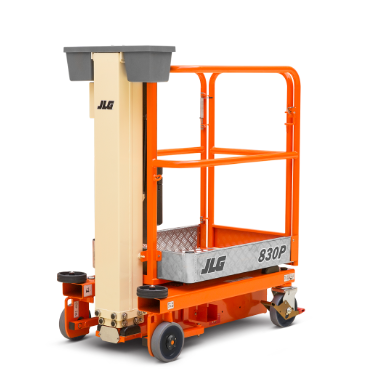

JLG 830P Spec Sheet
Quick-reference specifications for the JLG 830P. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Platform Capacity 440-lb /: 200-kg
Working Height 14-ft 2-in /: 4.32-m
Platform Height 8-ft 2-in /: 2.5-m
Overall Height 5-ft 1-in /: 1.56-m
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Platform Height 8-ft 2-in / | 2.5-m |
|---|---|
| Working Height 14-ft 2-in / | 4.32-m |
| Platform Capacity 440-lb / | 200-kg |
Dimensions
| Overall Height 5-ft 1-in / | 1.56-m |
|---|---|
| Platform Entry Height | 14-in / .36-m |
| Platform Size (L X W) 33.5-in x | 28-in / .85-m x .72-m |
| Machine Length 47-in / | 1.19-m |
| Machine Width | 29.5-in / .75-m |
| A. Machine Height (stowed) 5-ft 1-in / | 1.56-m |
| B. Machine Width | 29.5-in / .75-m |
| C. Platform Width | 28-in / .72-m |
| D. Machine Length 47-in / | 1.19-m |
| E. Platform Length | 33.5-in / .85-m |
| F. Rail Height 43.8-in / | 1.11-m |
Weights & Electrical
| no-fuss service access. | 830P |
|---|---|
| Weight 714-lbs / | 324-kg |
| Batteries | 12V AGM |
| Battery Charger Automatic | 110V-240V Charger |
Hydraulics & Capacities
| Max Ground Bearing Pressure – Front | 304 psi |
|---|---|
| Max Ground Bearing Pressure – Rear | 462.77 psi |
