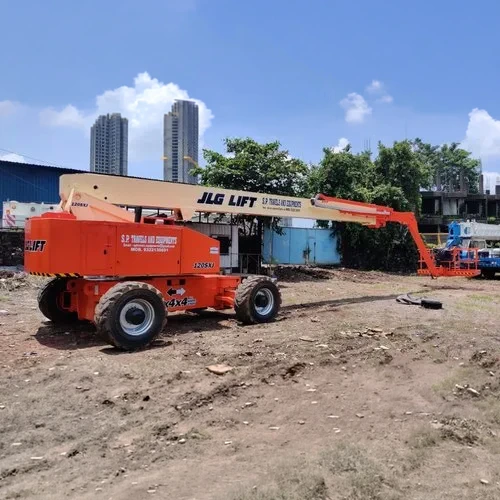

JLG 120SXJ Specs
Quick-reference specifications for the JLG 120SXJ boom lift, taken from the manufacturer’s spec sheet.
- Platform Capacity
- 500 lb230 kg
- Platform Height
- 120 ft36.58 m
- Gradeability
- 40%
Performance 10 specs
| Horizontal Outreach | 60 ft (18.29 m) |
|---|---|
| Swing | 360° Continuous |
| Platform Capacity | 500 lb (230 kg) |
| Platform Rotator | 180° Hydraulic |
| Jib (Range of Articulation) | 11 ft (3.35 m) 90 degrees (+15, –75) |
| Drive Speed | 3 mph (4.8 km/h) |
| Gradeability | 40% |
| Turning Radius (Inside) Axles Extended | 10 ft 7 in (3.23 m) |
| Turning Radius (Outside) Axles Retracted | 17 ft 4 in (5.28 m) |
| Turning Radius (Outside) Axles Extended | 18 ft 10 in (5.74 m) |
Dimensions 10 specs
| Platform Height | 120 ft (36.58 m) |
|---|---|
| Platform Size | 36 x 96 in (0.91 x 2.44 m) |
| Overall Width (Axles Retracted) | 8 ft 2 in (2.49 m) |
| Overall Width (Axles Extended) | 10 ft 10 in (3.3 m) |
| Tailswing (Axles Extended) | 2 ft 10 in (86 cm) |
| Stowed Height | 10 ft (3.05 m) |
| Stowed Length (Working) | 52 ft 4 in (15.95 m) |
| Stowed Length (Transport) | 35 ft 11 in (10.95 m) |
| Wheelbase | 10 ft (3.05 m) |
| Ground Clearance | 14.5 in (37 cm) |
Weight 2 specs
| Gross Vehicle Weight | 43,500 lb (19,732 kg) |
|---|---|
| Max. Ground Bearing Pressure | 149 psi (10.5 kg/cm2) |
Power / Engine 2 specs
| Diesel Engine | Deutz F4L912 70 hp (52 kW) |
|---|---|
| Auxiliary Power | 12 V-DC |
Hydraulics / Fluids 2 specs
| Fuel Tank Capacity | 26 gal (98.4 L) |
|---|---|
| Hydraulic Reservoir | 50 gal (190 L) |
