Telescopic Boom Lift · JLG

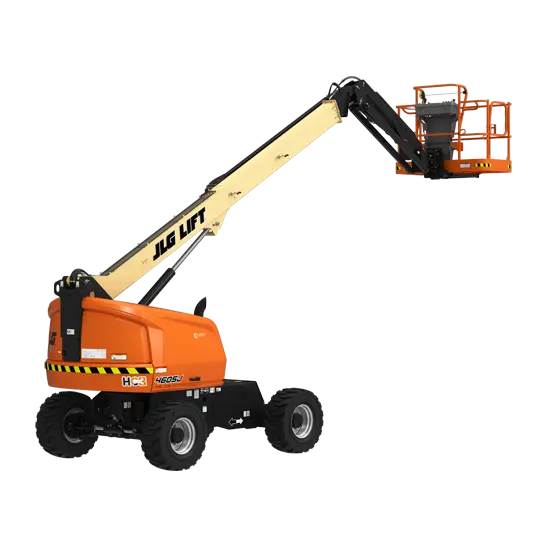

JLG 460SJ HC3 Specs
Quick-reference specifications for the JLG 460SJ HC3 boom lift, taken from the manufacturer’s spec sheet.
- Platform Capacity (Restricted)
- 750/1,000 lb340/454 kg
- Platform Height
- 46 ft14.05 m
- Weight
- 20,516 lb9,306 kg
- Gradeability
- 45%
Performance 8 specs
| Drive Speed | 4.25 mph (6.8 km/h) |
|---|---|
| Horizontal Outreach | 39 ft (12 m) |
| Swing | 360 Degrees Continuous |
| Platform Capacity (Restricted) | 750/1,000 lb (340/454 kg) |
| Platform Capacity (Unrestricted) | 660 lb (300 kg) |
| Jib Range of Articulation | 130 Degrees (+71, -61) |
| Gradeability | 45% |
| Tilt Cut Out | 5 Degrees |
Dimensions 10 specs
| Platform Height | 46 ft (14.05 m) |
|---|---|
| Jib Length | 6 ft (1.83 m) |
| Platform Width | 36 in (0.91 m) |
| Platform Length | 96 in (2.44 m) |
| Machine Width | 7 ft 6.8 in (2.31 m) |
| Tailswing | 3 ft .5 in (93 cm) |
| Machine Height | 8 ft 1 in (2.47 m) |
| Machine Length | 29 ft 8.2 in (9.10 m) |
| Wheelbase | 7 ft 9.5 in (2.37 m) |
| Ground Clearance | 12 in (30 cm) |
Weight 2 specs
| Weight | 20,516 lb (9,306 kg) |
|---|---|
| Max. Ground Bearing Pressure | 97.1 psi (6.8 kg/cm²) |
Power / Engine 2 specs
| Diesel Fuel – Deutz D2.9L4 Tier 4 Final | 49 hp (36.4 kW) |
|---|---|
| Auxiliary Power | 12 V DC |
Hydraulics / Fluids 2 specs
| Fuel Tank Capacity | 22 gal (83.3 L) |
|---|---|
| Hydraulic Reservoir | 36 gal (136.27 L) |
