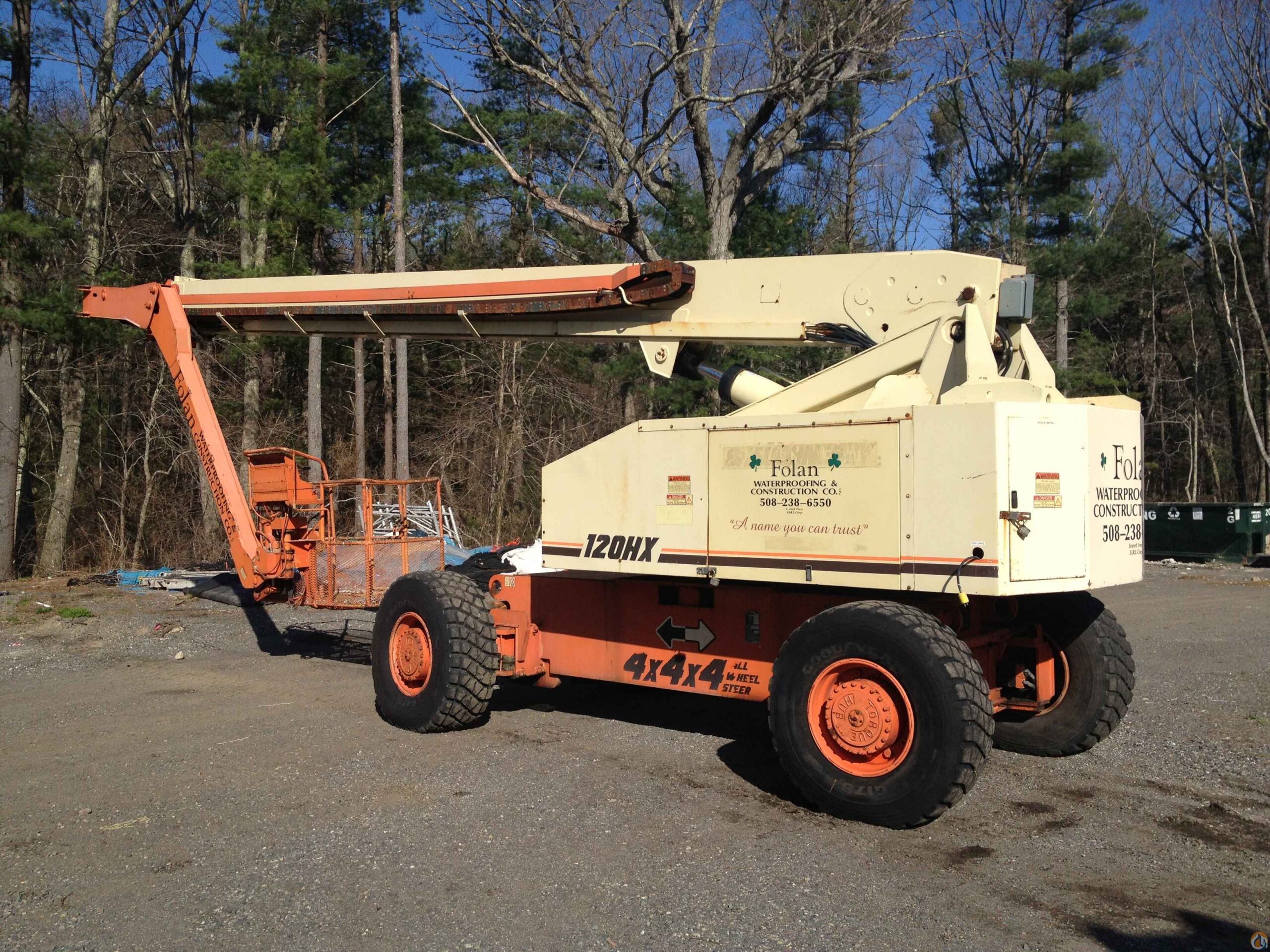

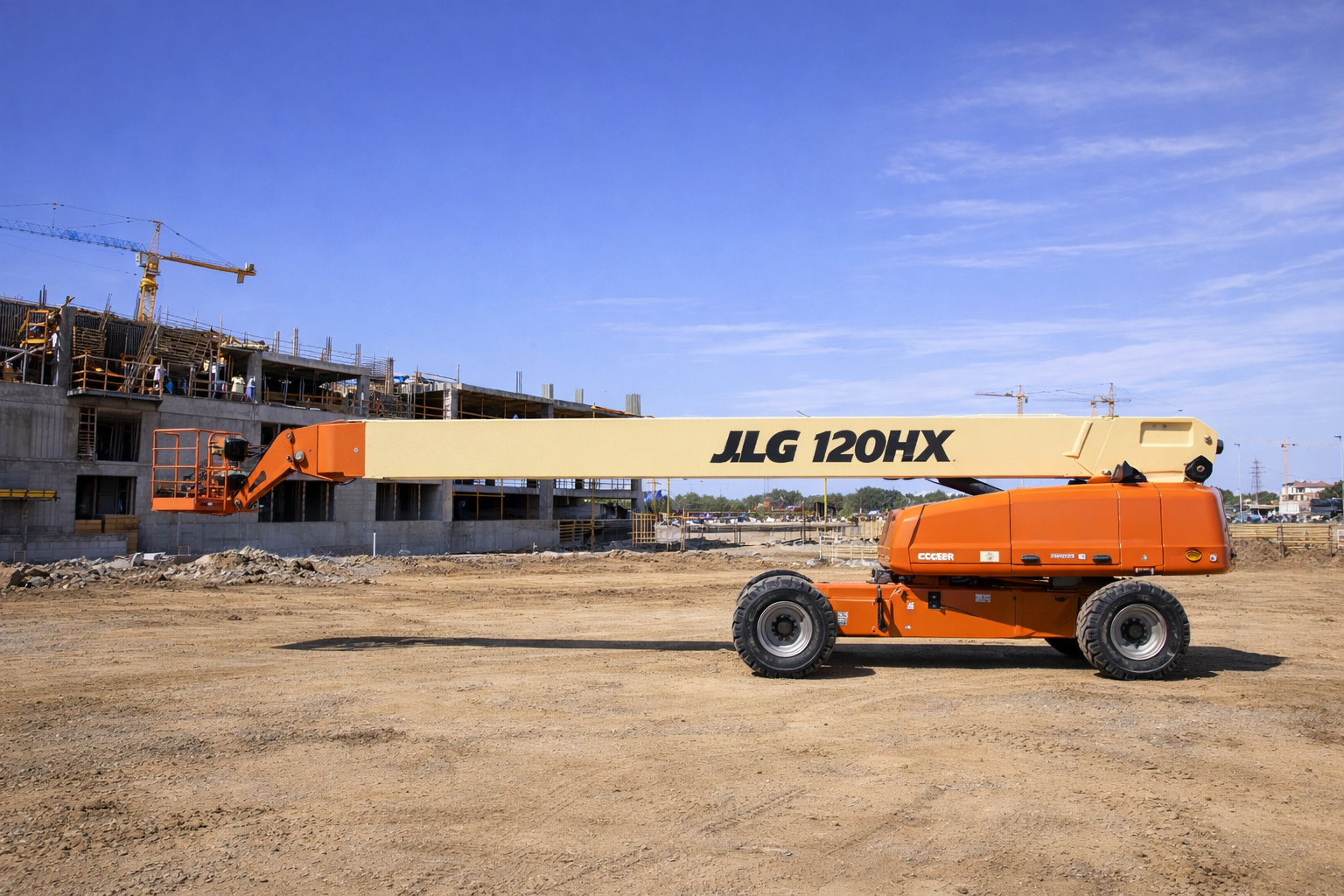

JLG 120HX Specs
Quick-reference specifications for the JLG 120HX boom lift, taken from the manufacturer’s spec sheet.
- Platform Capacity
- 500 lb227 kg
- Platform Height
- 120 ft36.6 m
- Working Height
- 126 ft38.4 m
Performance 5 specs
| Working Height | 126 ft (38.4 m) |
|---|---|
| Platform Capacity | 500 lb (227 kg) |
| Gross Weight (approx.) | 43,500 lb (19750 kg.) |
| Outside Turning Radius | 24 ft 0 in (7.32 m) |
| Horizontal Reach | 60 ft 0 in (18.3 m) |
Dimensions 10 specs
| Platform Height | 120 ft (36.6 m) |
|---|---|
| Platform Dimensions-Std. | 36 ft x 72 in x 44 in (.91m x 1.83 m x 1.12 m) |
| Stowed Length | 52 ft 4 in (15.9 m) |
| Stowed Length (transport) | 35 ft 4 in.11 (10.9 m) |
| Stowed Height | 10 ft 4 in (3.15 m) |
| Width (axles retracted) | 8 ft 6 in (2.59 m) |
| Width (axles extended) | 10 ft 10 in (3.30 m) |
| Tailswing | 34 in (.86m) |
| Wheelbase | 11 ft 4.5 in (3.47 m) |
| Ground Clearance | 12 in (33 cm) |
Power / Engine 1 spec
| Tires (Foam Filled) | 445/65R x 22.5 |
|---|
