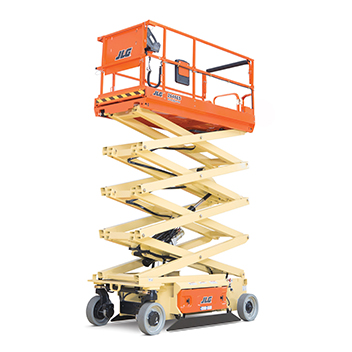

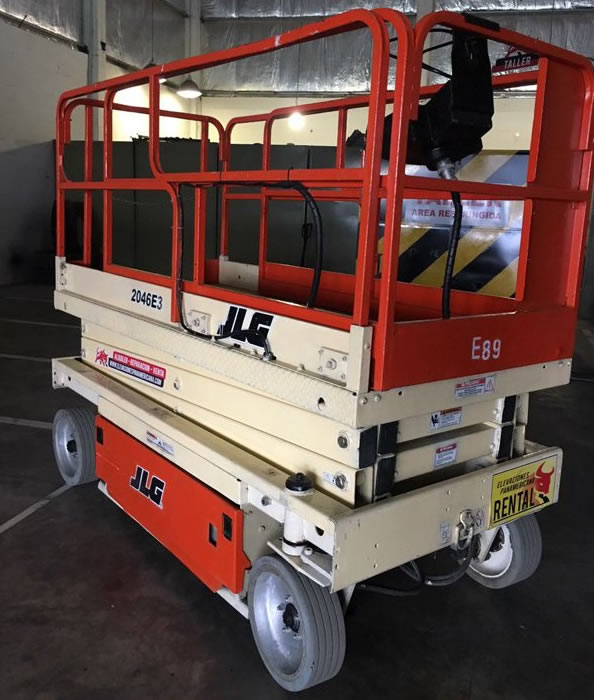

JLG 2046E3 Specs
Quick-reference specifications for the JLG 2046E3 scissor lift, compiled from published specifications.
- Platform Capacity
- 1,000 lb450 kg
- Working Height
- 20 ft6.1 m
- Gradeability
- 25%
Performance 9 specs
| Working Height | 20 ft (6.1 m) |
|---|---|
| Platform Capacity | 1,000 lb (450 kg) |
| Inside Turning Radius | 16 in (40.6 cm) |
| Inside Turning Angle | 80° |
| Gradeability | 25% |
| Lift Speed (No Load) – Down | 28-33 sec |
| Travel Speed – Low | 1.5 mph (2.1 km/h) |
| Travel Speed – Elevated | 0.5 mph (0.80 km/h) |
| Travel Speed – Maximum | 2.4 mph (3.9 km/h) |
Dimensions 7 specs
| Platform Size | 42 in x 94 in (1.1 m x 2.4 m) |
|---|---|
| Platform Length | 1.07 m |
| Platform Width | 2.39 m |
| Wheelbase | 73.0 in (1.9 m) |
| Machine Height (Platform Fully Elevated) | 20 ft (6.1 m) |
| Machine Height (Platform Lowered) | 79.0 in (2.0 m) |
| Platform Railing Height – Standard Handrails | 39.5 in (1.0 m) |
Weight 2 specs
| Machine Weight – Domestic/CSA | 3,940 lb (1,790 kg) |
|---|---|
| Maximum Tire Load | 1,710 lb (776 kg) |
Hydraulics / Fluids 2 specs
| Drive Motor Displacement | 16.2 in³ (265 cm³) |
|---|---|
| Maximum Bearing Pressure | 117 psi (8.2 kg/cm²) |
