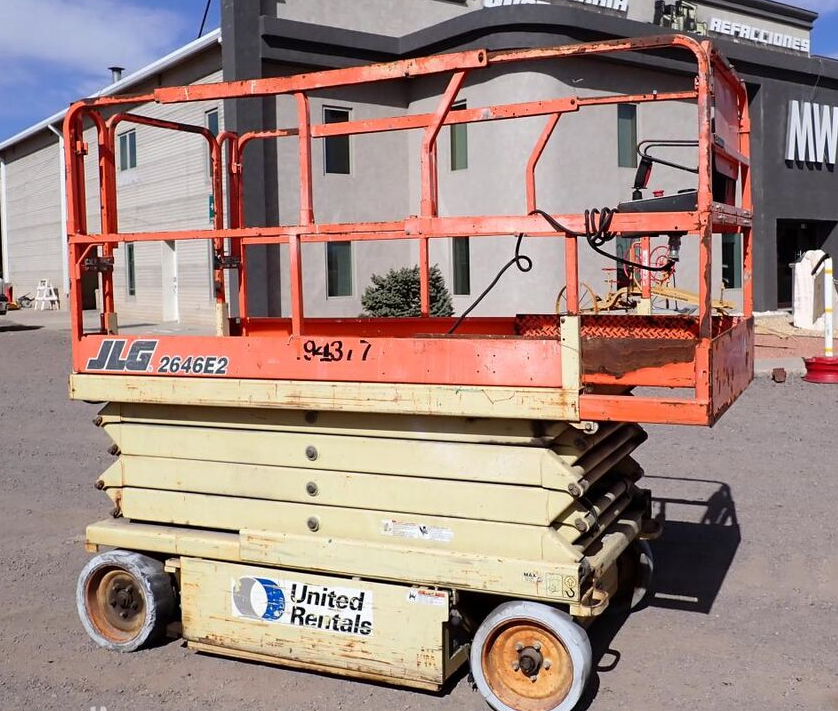

JLG 2646E2 Specs
Quick-reference specifications for the JLG 2646E2 scissor lift, compiled from published specifications.
- Platform Capacity
- 750 lb340 kg
- Platform Height
- 26 ft7.92 m
- Gradeability
- 25%
Performance 9 specs
| Platform Capacity | 750 lb (340 kg) |
|---|---|
| Extension Platform Capacity | 265 lb (120 kg) |
| Lift Time (No Load) | 40-48 seconds |
| Lower Time (No Load) | 37-45 seconds |
| Drive Speed – Platform Lowered | 2.1 km/h |
| Drive Speed – Platform Elevated | 0.8 km/h |
| Gradeability | 25% |
| Inside Turning Radius | 3 ft (1 m) |
| Maximum Occupants | 2 persons |
Dimensions 7 specs
| Platform Height | 26 ft (7.92 m) |
|---|---|
| Machine Length | 7.5 ft (2.3 m) |
| Machine Width | 3 ft 10 in (1.17 m) |
| Machine Height (Stowed) | 6 ft (1.8 m) |
| Platform Size | 45 in x 84 in (1.1 m x 2.1 m) |
| Wheelbase | 1.2 m |
| Ground Clearance | 2.75 in (7 cm) |
Weight 1 spec
| Machine Weight | 4,600 lb (2086 kg) |
|---|
Power / Engine 1 spec
| Power Source | 24 Volts DC Electric |
|---|
Hydraulics / Fluids 2 specs
| Hydraulic System Capacity | 19.0 liters |
|---|---|
| Drive Motor Displacement | 265.5 cm3 |
