Telehandler · JLG

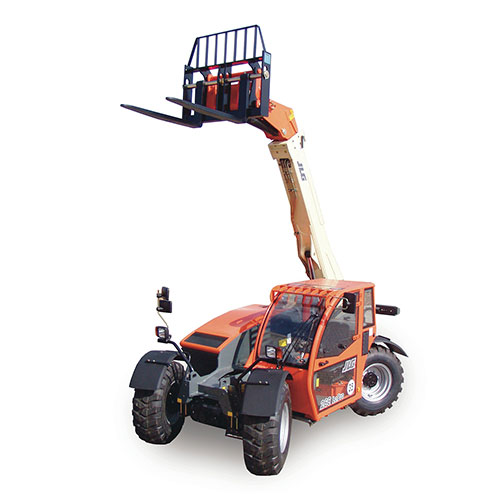

JLG 266 LoPro Specs
Quick-reference specifications for the JLG 266 LoPro telehandler, from the manufacturer’s spec sheet and published specifications.
- Maximum Lift Capacity
- 5,732 lb2,600 kg
- Capacity at Maximum Height
- 266 & 266 LoPro
- Capacity at Maximum Forward Reach
- 266 & 266 LoPro
- Operating Weight
- 13,889 lb6.3 t
Performance 11 specs
| Capacity at Maximum Height | 266 & 266 LoPro |
|---|---|
| Capacity at Maximum Forward Reach | 266 & 266 LoPro |
| Carriage Rotation | 266 & 266 LoPro 140 degrees |
| Maximum Lift Capacity | 5,732 lb (2,600 kg) |
| Capacity at Full Height | 4,850 lb (2,200 kg) |
| Maximum Forward Reach | 10.37 ft (3.16 m) |
| Lifting Height | 19.03 ft (5.8 m) |
| Reach at Maximum Height | 0.80 m |
| Drawbar Pull (loaded) | 5,000 kg |
| Gradeability | 45% |
| Maximum Travel Speed | 19.9 mph (32 kph) |
Dimensions 7 specs
| Overall Height | 85.8 in (266 2.180 mm) |
|---|---|
| Ground Clearance | 19.5 in (266,496 mm) |
| Transport Length | 14.43 ft (4.4 m) |
| Transport Width | 6.69 ft (2.04 m) |
| Transport Height | 6.56 ft (2.0 m) |
| Wheelbase | 8.89 ft (2.71 m) |
| Turning Radius | 12.8 ft (3.9 m) |
Weight 2 specs
| Operating Weight | 13,889 lb (6.3 t) |
|---|---|
| Gross Vehicle Weight Rating | 13,448 lb (6,100 kg) |
Power / Engine 3 specs
| Gross Power | 100 hp (74.6 kW) |
|---|---|
| Fuel Capacity | 24.1 gal (91 L) |
| Engine Oil Capacity | 10 L |
Hydraulics / Fluids 2 specs
| Hydraulic Fluid Capacity | 17 gal (64 L) |
|---|---|
| Coolant Capacity | 15 L |
