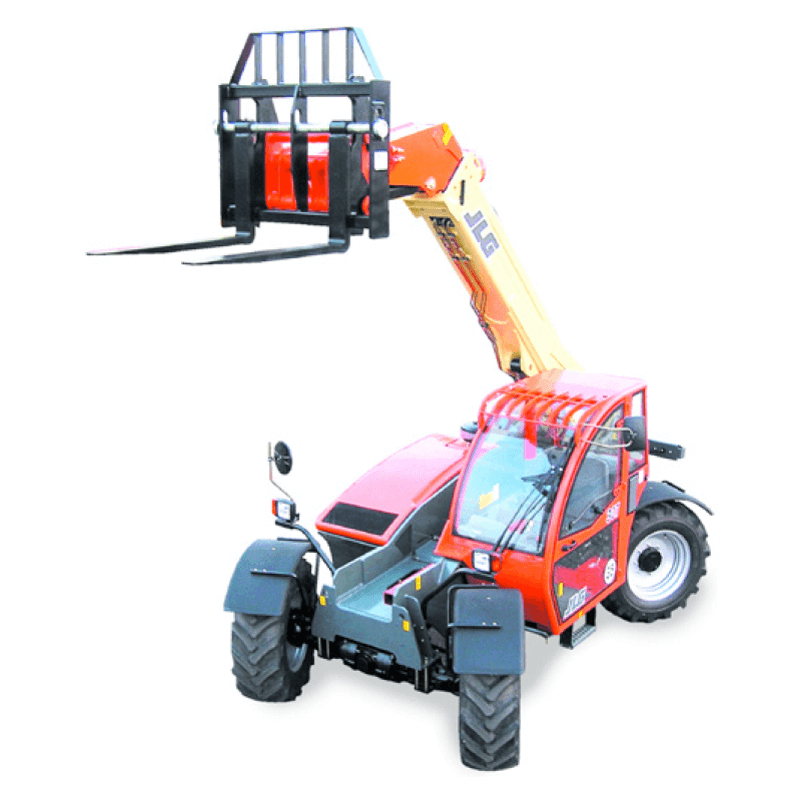

JLG 307 Specs
Quick-reference specifications for the JLG 307 telehandler, from the manufacturer’s spec sheet and published specifications.
- Max Lift Capacity
- 6,613.87 lb3,000 kg
- Capacity at Maximum Height
- 266 & 266 LoPro
- Capacity at Maximum Forward Reach
- 266 & 266 LoPro
- Operating Weight
- 16,534.70 lb7,500 kg
Performance 10 specs
| Capacity at Maximum Height | 266 & 266 LoPro |
|---|---|
| Capacity at Maximum Forward Reach | 266 & 266 LoPro |
| Carriage Rotation | 266 & 266 LoPro 140 degrees |
| Max Lift Height | 22.64 ft (6.90 m) |
| Max Forward Reach | 12.80 ft (3.90 m) |
| Max Lift Capacity | 6,613.87 lb (3,000 kg) |
| Max Load At Max Height | 5,732.02 lb (2,600 kg) |
| Max Load At Max Reach | 2,976.25 lb (1,350 kg) |
| Max Speed – Forward | 19.90 mph (32.03 km/h) |
| Max Speed – Reverse | 19.90 mph (32.03 km/h) |
Dimensions 6 specs
| Overall Height | 85.8 in (266 2.180 mm) |
|---|---|
| Ground Clearance | 19.5 in (266,496 mm) |
| Length To Fork Face | 13.59 ft (4.14 m) |
| Width Over Tires | 7.55 ft (2.30 m) |
| Wheelbase | 9.52 ft (2.90 m) |
| Turning Radius Outside Tires | 14.44 ft (4.40 m) |
Weight 1 spec
| Operating Weight | 16,534.70 lb (7,500 kg) |
|---|
Power / Engine 2 specs
| Gross Power | 100.50 hp (74.94 kW) |
|---|---|
| Fuel Capacity | 27.80 gal (105.22 L) |
Hydraulics / Fluids 4 specs
| Hydraulic System Fluid Capacity | 23.00 gal (87.06 L) |
|---|---|
| Tire Size | 405/70-20 |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
