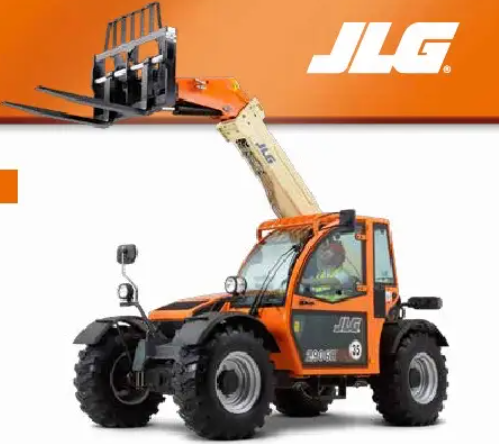

JLG 2906H Specs
Quick-reference specifications for the JLG 2906H telehandler, taken from the manufacturer’s spec sheet.
- Rated capacity
- 2,900 kg
- Maximum lift height
- 5.80 m
- Operating weight (no attachment)
- 6,743 kg
Performance 4 specs
| Rated capacity | 2,900 kg |
|---|---|
| Load at max reach | 1,000 kg |
| Top travel speed | 32 km/h |
| Outside turning radius (over tyres) | 3.70 m |
Dimensions 2 specs
| Maximum lift height | 5.80 m |
|---|---|
| Load at max height | 2,200 kg |
Weight 1 spec
| Operating weight (no attachment) | 6,743 kg |
|---|
Power / Engine 3 specs
| Engine | 74.9 kW |
|---|---|
| Displacement | 4 L |
| Standard engine gross power | 74.9 kW |
Hydraulics / Fluids 2 specs
| Hydraulic System-Implement – Capacity | 60 L |
|---|---|
| Fuel Tank Capacity | 95 L |
