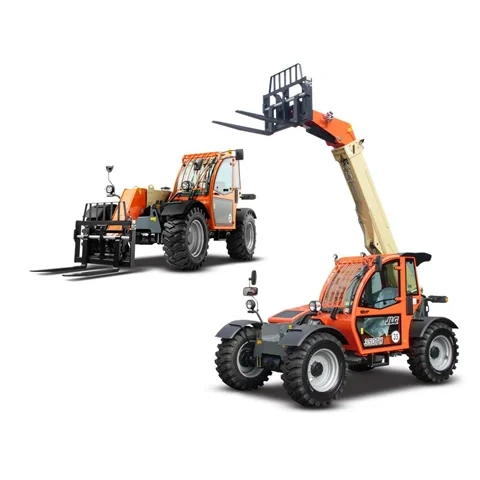

JLG 3507H Spec Sheet
Quick-reference specifications for the JLG 3507H. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Rated capacity: 3,500 kg
Maximum lift height: 6.90 m
Operating weight (no attachment): 8,096 kg
Capacity: 95 L
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Rated capacity | 3,500 kg |
|---|---|
| Maximum lift height | 6.90 m |
| Top travel speed | 32 km/h |
| Outside turning radius (over tyres) | 3.89 m |
| Capacity | 95 L |
| Concrete mixer bucket 500 l capacity, | 1100 kg |
Dimensions
| Load at max height | 2,600 kg |
|---|
Weights & Electrical
| Load at max reach | 1,350 kg |
|---|---|
| Operating weight (no attachment) | 8,096 kg |
| Displacement | 4 L |
Powertrain & Systems
| Engine | 74.9 kW |
|---|---|
| Standard engine gross power | 74.9 kW |
| Steering | 4-Wheel |
Hydraulics & Capacities
| Fuel Tank Capacity | 102 L |
|---|
