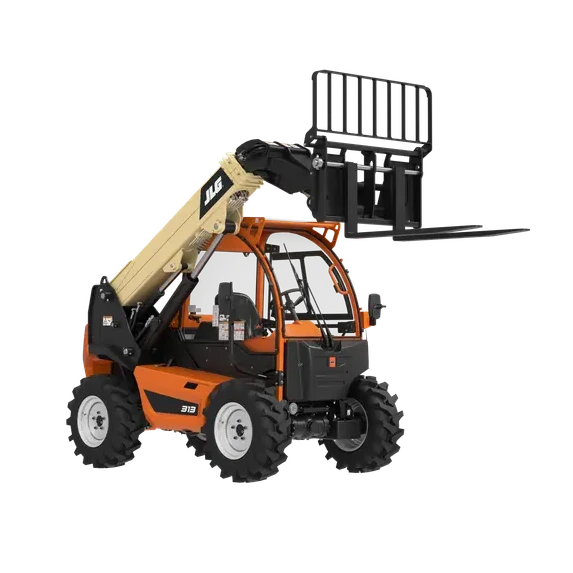

JLG 313 Specs
Quick-reference specifications for the JLG 313 telehandler, taken from the manufacturer’s spec sheet.
- Rated Capacity
- 3,500 lb1,600 kg
- Capacity
- 3,500 lb
- Maximum Lift Height
- 13 ft 1 in4 m
- Maximum Forward Reach
- 7 ft 7 in2.31 m
Performance 11 specs
| Rated Capacity | 3,500 lb (1,600 kg) |
|---|---|
| Maximum Forward Reach | 7 ft 7 in (2.31 m) |
| Load at Max Reach | 1,415 lb (640 kg) |
| Lift Speed Down | 8 sec |
| Boom Speed Extended | 7.0 sec |
| Boom Speed Retracted | 4.6 sec |
| Top Travel Speed | 12.4 mph (20 km/h) |
| Drawbar Pull | 3,966 lb-ft (17.64 kN) |
| Outside Turning Radius | 134 in (3.4 m) |
| Capacity | 3,500 lb |
| Travel Speed | 12.4 mph (20 km/h) |
Dimensions 8 specs
| Maximum Lift Height | 13 ft 1 in (4 m) |
|---|---|
| Load at Max Height | 1,800 lb (815 kg) |
| Lift Height | 13 ft 1 in |
| Machine Height | 6 ft 8 in (2.03 m) |
| Ground Clearance | 10.9 in (277 mm) |
| Machine Length | 10 ft 1 in (3.08 m) |
| Machine Width | 4 ft 10 in (1.48 m) |
| Wheelbase | 5 ft 9 in (1.75 m) |
Weight 1 spec
| Operating Weight | 7,430 lb (3,370 kg) |
|---|
Power / Engine 1 spec
| Displacement | 91.4 cu in (1.5 L) |
|---|
Hydraulics / Fluids 2 specs
| Fuel Tank Capacity | 14.5 gal (55 L) |
|---|---|
| Hydraulic System-Implement – Capacity | 8.72 gal (33 L) |
